Pramet XLCFN 3203 M 04 6756964 Blade For Parting And Grooving
MODEL 6756964
$84.82 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

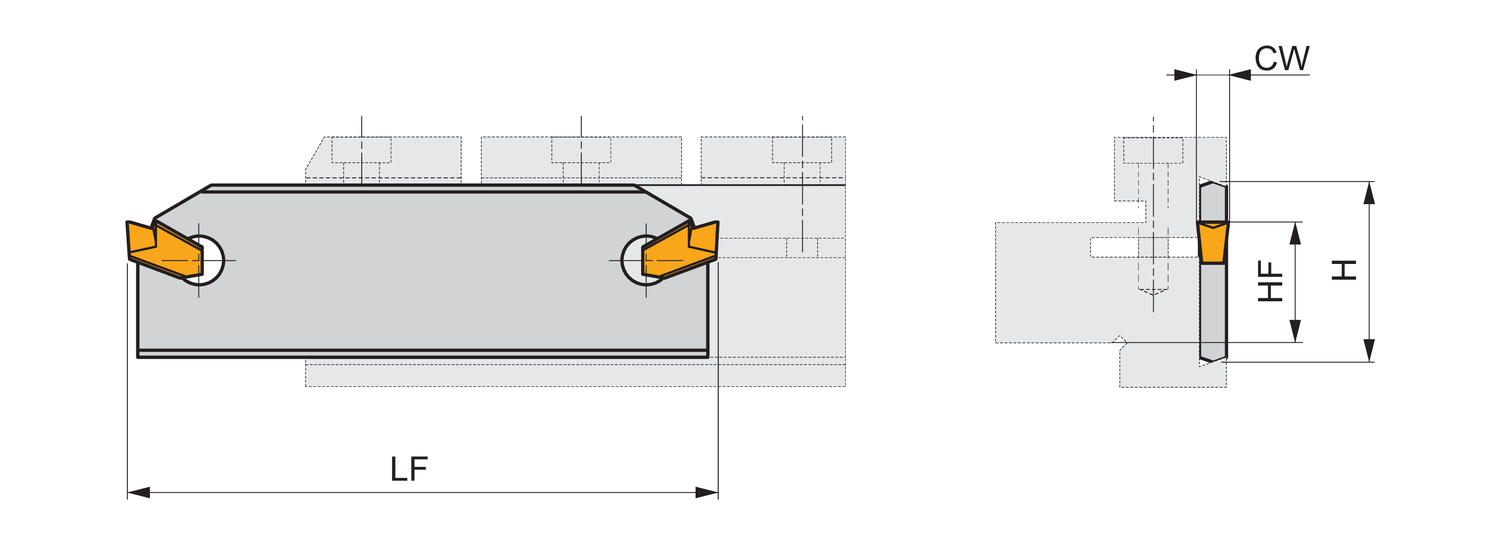

Clamping Type Code (MTP)
System X
Cutting depth maximum - inch (CDX)
1.9685
Cutting depth maximum - millimeter (CDX)
50
Cutting width - inch (CW)
0.1614
Cutting width - millimeter (CW)
4.1
Direction of tool
Neutral
Functional height - inch (HF)
0.984
Functional height - millimeter (HF)
25
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Primary use
Finishing
Shank height - inch (H)
1.26
Shank height - millimeter (H)
32
Spring clamp parting and grooving tool blade for holding a single ended insert with 4mm cutting width (designation LFUX 0408.. ), tool style assembly with 32-DU.. for a maximum grooving depth of 50mm, tool blade height 32mm and length 150mm for parting-off and tube parting-off
