Pramet SIL 0010 K 11-1 6757166 Boring Bar - Threading
MODEL 6757166
$147.04 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

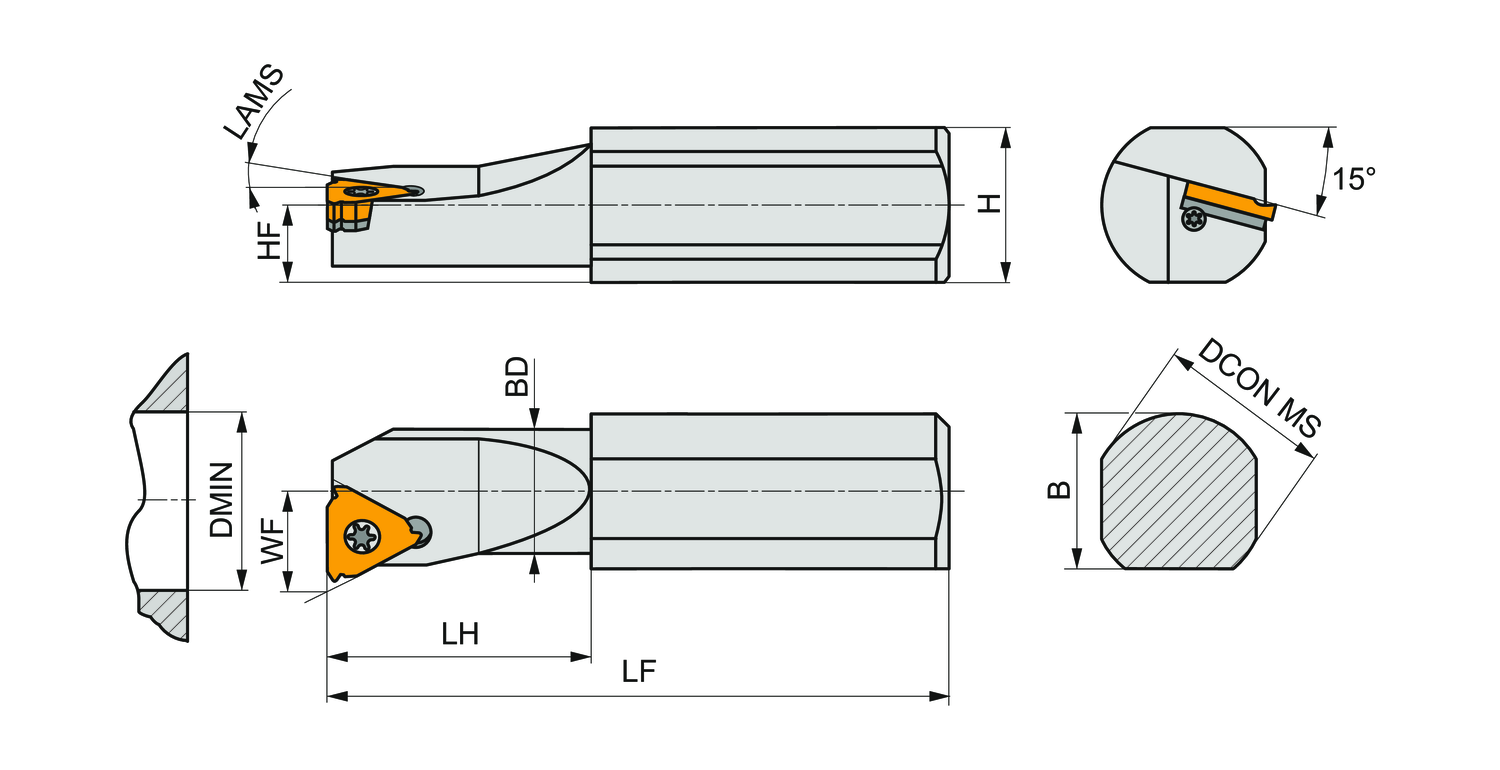

Body diameter - inch (BD)
0.394
Body diameter - millimeter (BD)
10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Direction of tool
Left
Functional height - inch (HF)
0.276
Functional height - millimeter (HF)
7
Functional length - inch (LF)
4.921
Functional length - millimeter (LF)
125
Functional width - inch (WF)
0.293
Functional width - millimeter (WF)
7.55
Head length - inch (LH)
0.984
Head length - millimeter (LH)
25
Inclination angle (LAMS)
1
Minimum bore diameter - inch (DMIN)
0.512
Minimum bore diameter - millimeter (DMIN)
13
Not recomended
Medium machining
Primary use
Finishing
Shank height - inch (H)
0.551
Shank height - millimeter (H)
14
Shank width - inch (B)
0.571
Shank width - millimeter (B)
14.5
Screw clamp thread turning bar with 1° helix angle for holding a triangle shaped insert with an inscribed circle diameter of 6.35mm (designation TN 11NL.. ), left hand standard design with straight shank made of steel without coolant hole, 16mm diameter and 125mm overall length for internal threading, circlip grooving, and o-ring grooving
