Pramet SBMR 2207DZSR:M8346 6801309 Milling Insert - Heavy Duty
MODEL 6801309
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$37.21 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
M8346
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
0.591
Depth of cut maximum - millimeter (APMX)
15
Feed maximal - millimeter
0.8
Feed minimal - millimeter
0.35

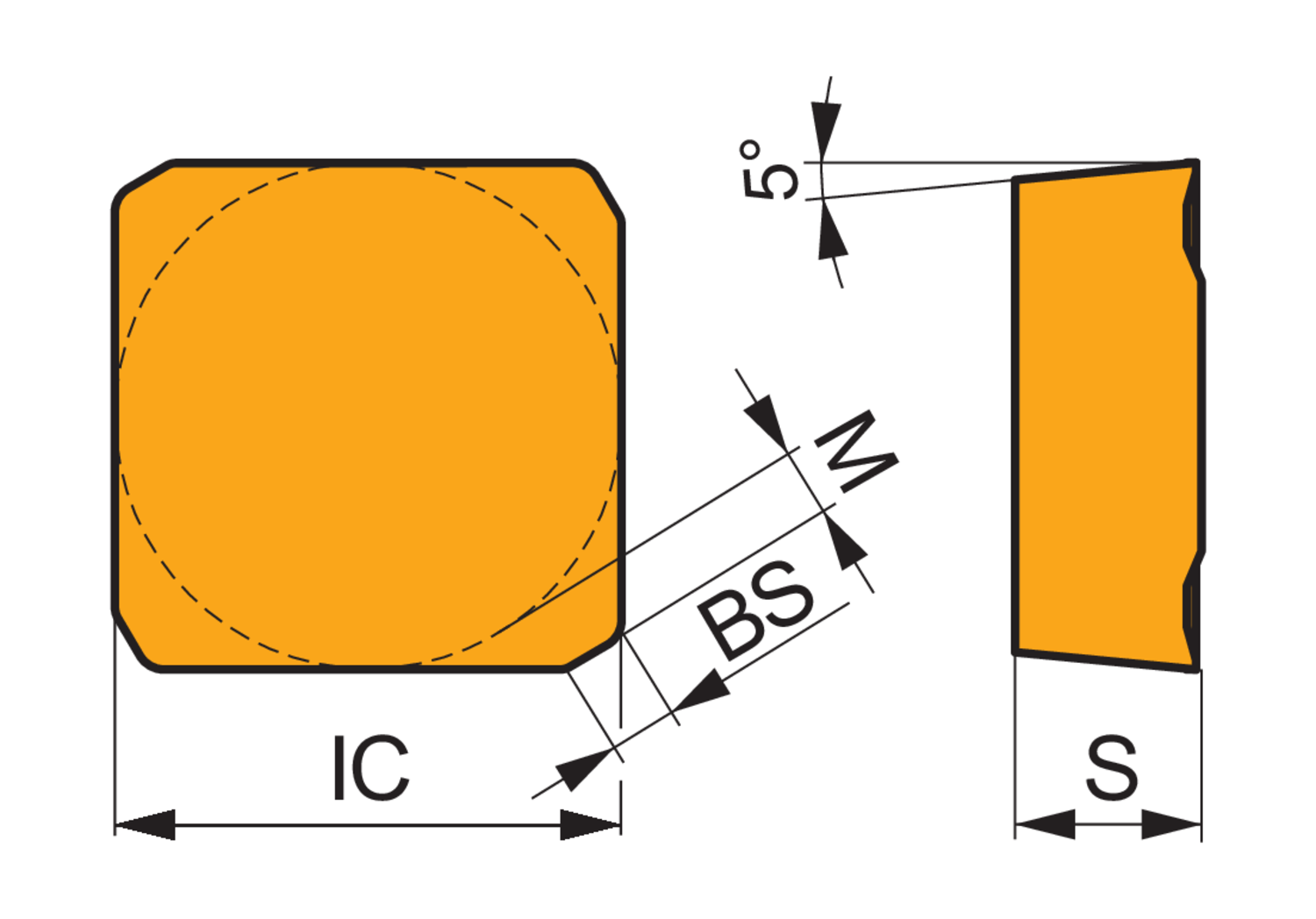

Inscribed circle diameter - inch (IC)
0.866
Inscribed circle diameter - millimeter (IC)
22
Insert length - inch (INSL)
0.866
Insert length - millimeter (INSL)
22
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.315
Insert thickness - millimeter (S)
8
m-dimension - inch (M)
0.111
m-dimension - millimeter (M)
2.82
Wiper edge length - inch (BS)
0.078
Wiper edge length - millimeter (BS)
1.99
Single-sided milling insert SBMR 2207 with chip-breakers, square for a maximum depth of cut of 15.0mm, with an indexing accuracy according to ISO-tolerance class-M with rounded cutting edges and facet, M8346 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with face mills FSB22X
