MROSupply Has Hundreds Of Brands, Millions Of Products, Including
Image for Illustration purposes only. Actual product may vary
Pramet LC 1008-KPF:M4310 7637588 Milling Insert - Copy And Profile
MODEL 7637588
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$32.52 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
KPF
Coating
M4310
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

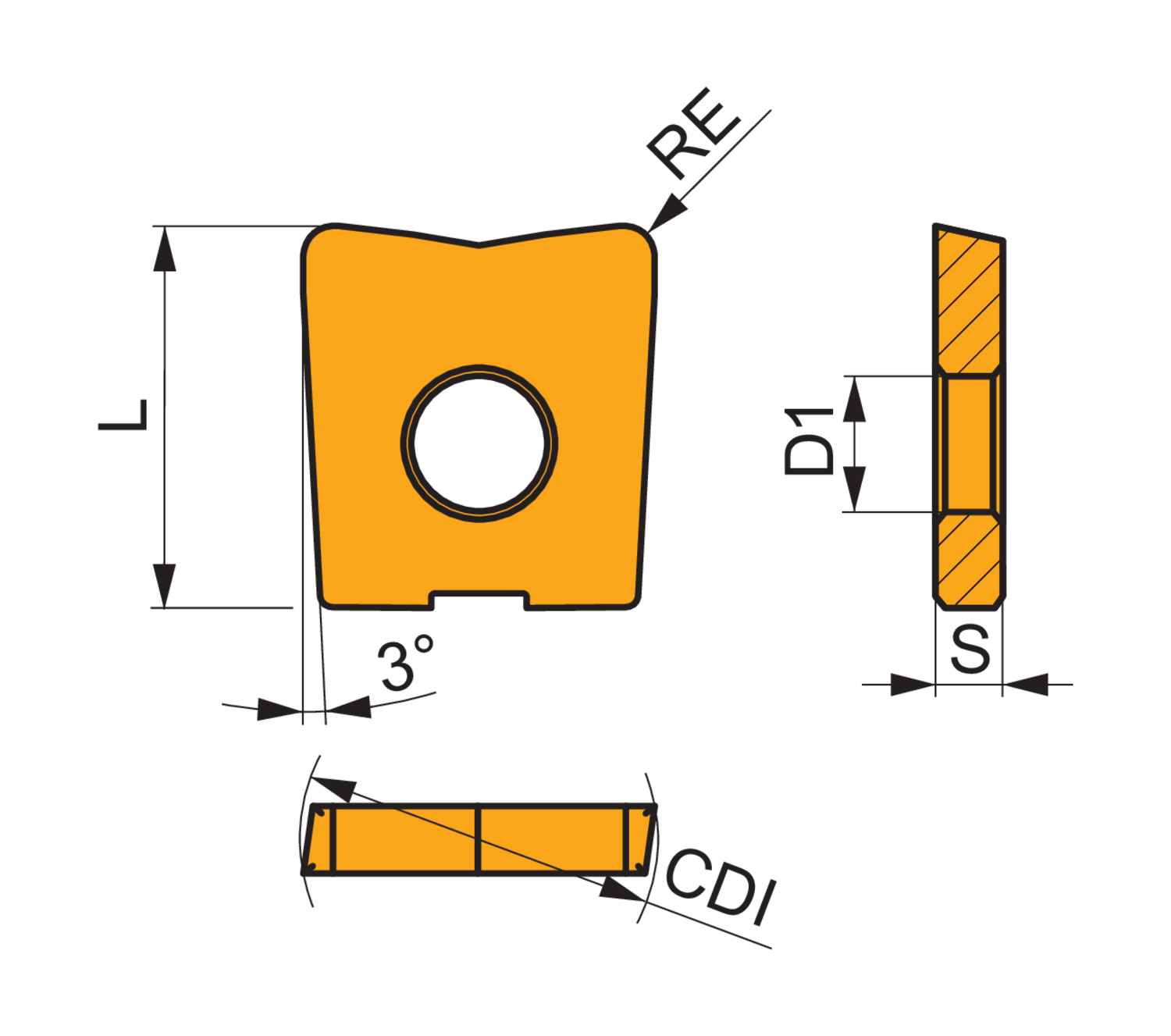

Corner radius - inch (RE)
0.031
Corner radius - millimeter (RE)
0.8
Cutting edge length - inch (L)
0.453
Cutting edge length - millimeter (L)
11.5
Depth of cut maximum - inch (APMX)
0.031
Depth of cut maximum - millimeter (APMX)
0.8
Depth of cut minimum - inch (APMN)
0.004
Depth of cut minimum - millimeter (APMN)
0.1
Feed maximal - millimeter
0.2
Feed minimal - millimeter
0.05
Feed_MAX_IMP_NUM
0.008
Feed_MIN_IMP_NUM
0.002
Fixing hole diameter - inch (D1)
0.157
Fixing hole diameter - millimeter (D1)
4
Insert cutting diameter - inch (CDI)
0.394
Insert cutting diameter - millimeter (CDI)
10
Insert shape code (SC)
L - rectangular
Insert thickness - inch (S)
0.098
Insert thickness - millimeter (S)
2.5
Toroidal copy milling insert with a diameter of 10mm and 0.8mm corner radii for a maximum depth of cut of 0.8mm, KPF geometry and M4310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K05-K15 and H05-H15 for machining of cast-iron and hardened material with copy end mills K2-SRC
