Pramet RC 20:M4310 7637794 Milling Insert - Copy And Profile
MODEL 7637794
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$36.13 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
M4310
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Depth of cut maximum - inch (APMX)
0.079
Depth of cut maximum - millimeter (APMX)
2
Depth of cut minimum - inch (APMN)
0.024
Depth of cut minimum - millimeter (APMN)
0.6
Feed maximal - millimeter
0.5
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.02
Feed_MIN_IMP_NUM
0.004

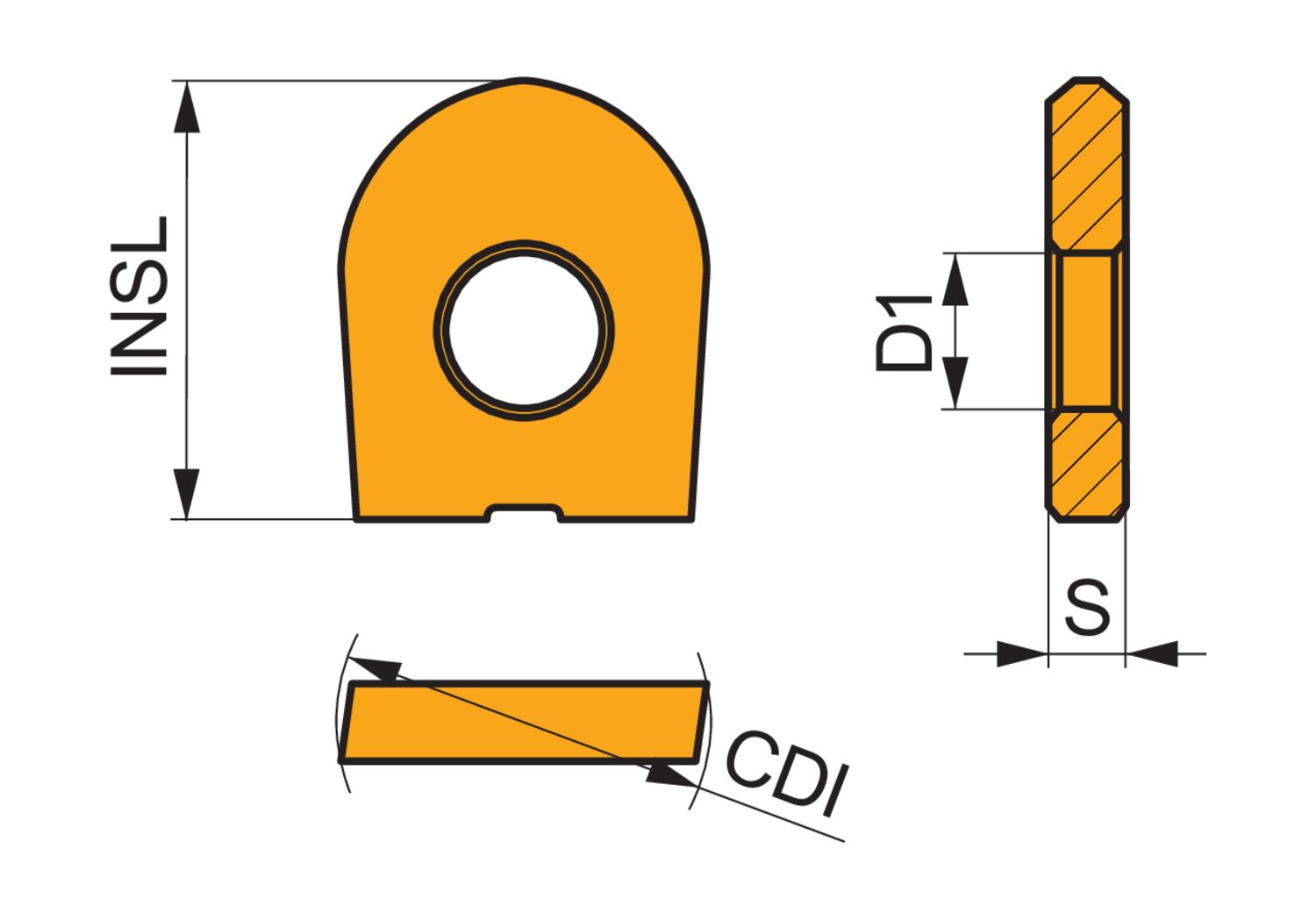

Fixing hole diameter - inch (D1)
0.197
Fixing hole diameter - millimeter (D1)
5
Insert cutting diameter - inch (CDI)
0.787
Insert cutting diameter - millimeter (CDI)
20
Insert length - inch (INSL)
0.63
Insert length - millimeter (INSL)
16
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.118
Insert thickness - millimeter (S)
3
Ball nosed copy milling insert with a diameter of 20mm for a maximum depth of cut of 2.0mm, M4310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K05-K15 and H05-H15 for machining of cast-iron and hardened material with copy end mills K2-SRC
