Image for Illustration purposes only. Actual product may vary
Pramet XDHW 10T310SN:M8325 6756013 Milling Insert - Copy And Profile
MODEL 6756013
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$11.37 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
M8325
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

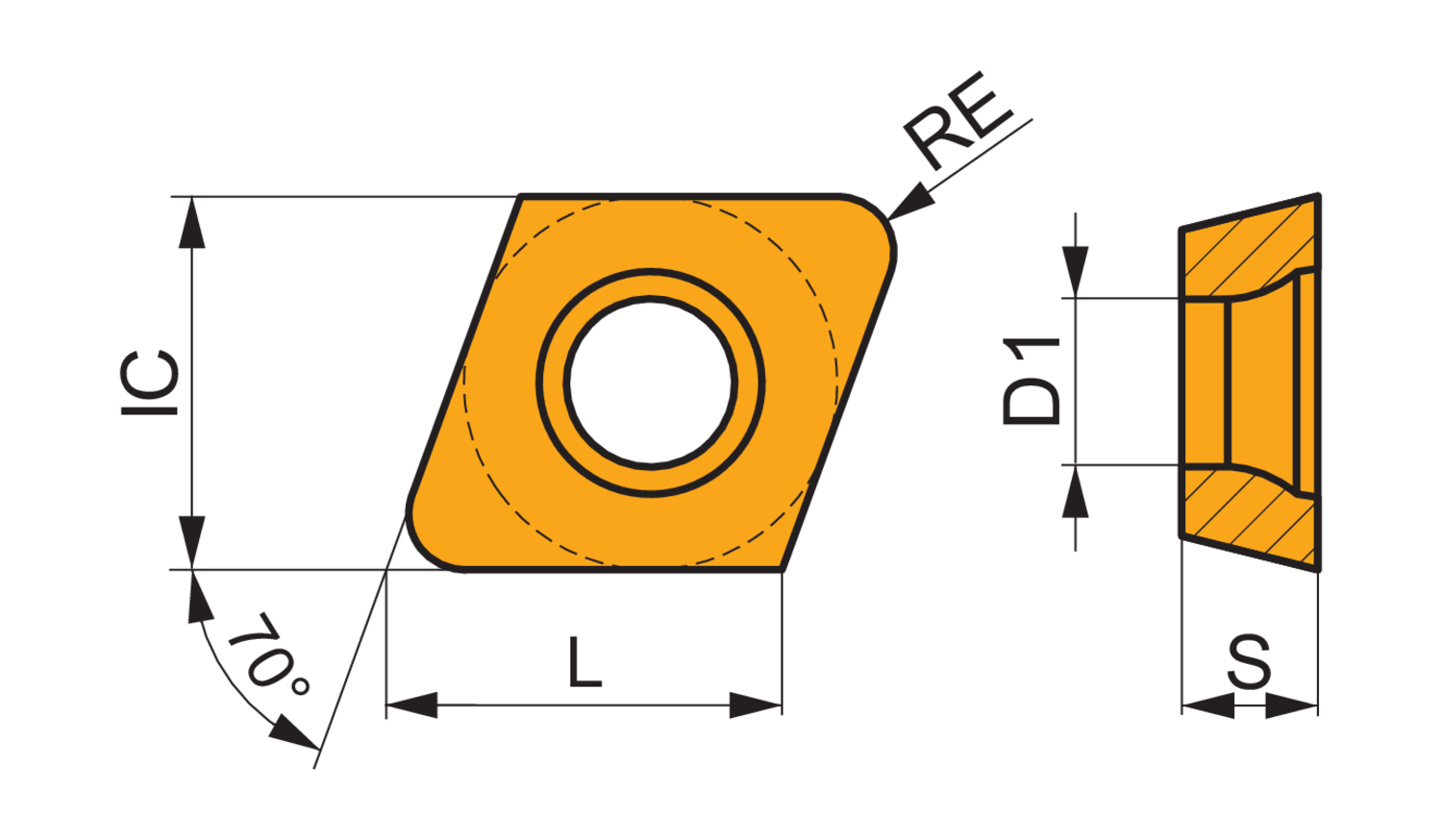

Corner radius - inch (RE)
0.039
Corner radius - millimeter (RE)
1
Cutting edge length - inch (L)
0.417
Cutting edge length - millimeter (L)
10.6
Depth of cut maximum - inch (APMX)
0.039
Depth of cut maximum - millimeter (APMX)
1
Depth of cut minimum - inch (APMN)
0.008
Depth of cut minimum - millimeter (APMN)
0.2
Feed maximal - millimeter
0.35
Feed minimal - millimeter
0.05
Feed_MAX_IMP_NUM
0.014
Feed_MIN_IMP_NUM
0.002
Fixing hole diameter - inch (D1)
0.156
Fixing hole diameter - millimeter (D1)
3.95
Inscribed circle diameter - inch (IC)
0.394
Inscribed circle diameter - millimeter (IC)
10
Insert shape code (SC)
X - Special design
Insert thickness - inch (S)
0.156
Insert thickness - millimeter (S)
3.97
Single-sided milling insert XDHW 10T3 with a plane rake surface, 70° rhomboid for a maximum depth of cut of 1.0mm, with 1.0mm corner radius, an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges and facet, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide
