Pramet ZP 40ER-R:M8345 6756142 Milling Insert - Copy And Profile
MODEL 6756142
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$63.19 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
R
Coating
M8345
Coating process
PVD
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
1.406
Depth of cut maximum - millimeter (APMX)
35.7
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.33
Feed minimal - millimeter
0.12
Feed_MAX_IMP_NUM
0.013
Feed_MIN_IMP_NUM
0.005

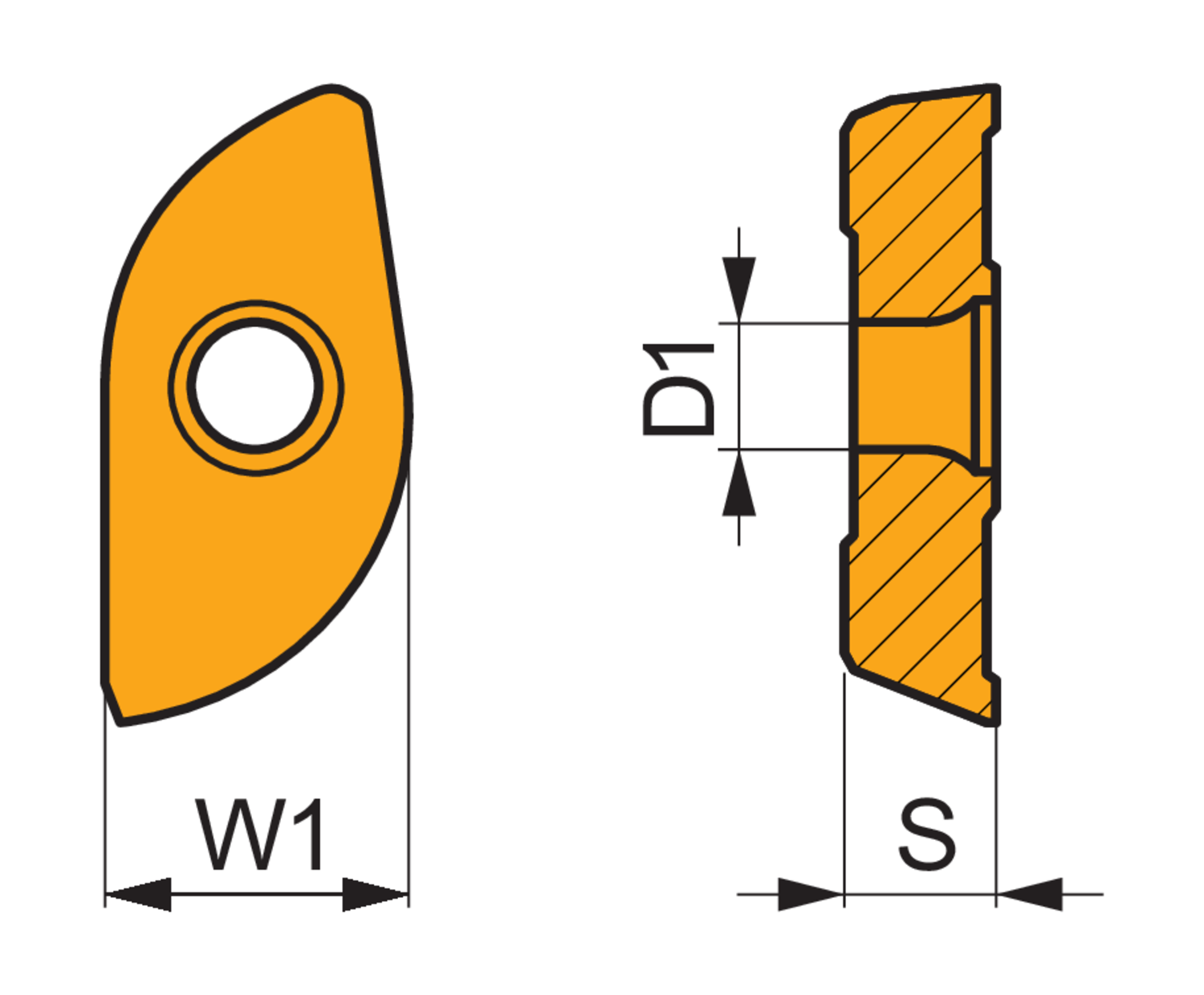

Fixing hole diameter - inch (D1)
0.276
Fixing hole diameter - millimeter (D1)
7
Insert shape code (SC)
X - Special design
Insert thickness - inch (S)
0.313
Insert thickness - millimeter (S)
7.94
Insert width - inch (W1)
1.575
Insert width - millimeter (W1)
40
Indexable ball nose segment copy milling insert for a diameter of 40mm for a maximum depth of cut of 35.7mm, R geometry and M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with copy end mills L2-SZP
