Pramet ADKT 1505PDER-M:M8340 6800798 Milling Insert - Square Shoulder

Coating

0.012

Coating process

0.006

Coating property (CTP)

1

Cooling effect

M

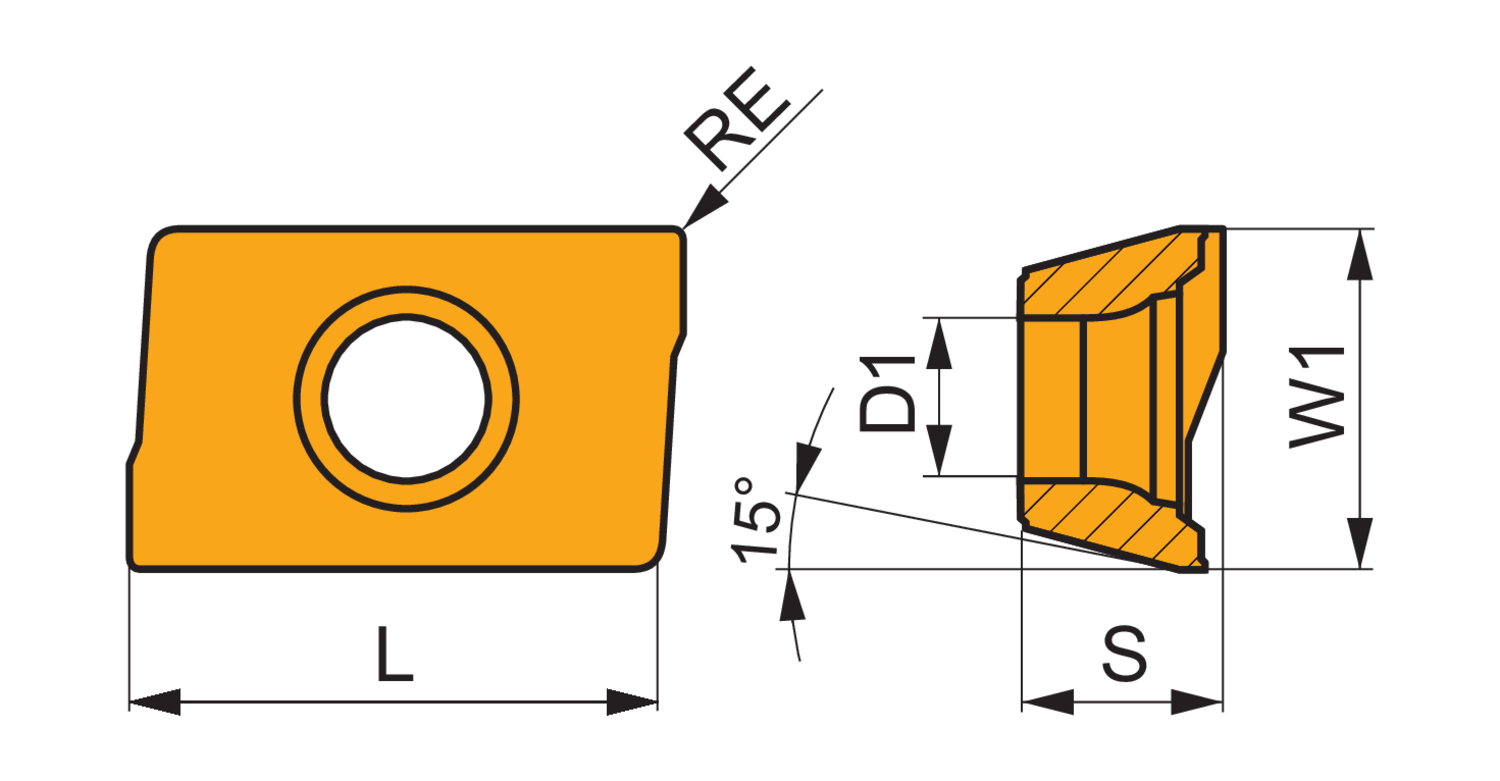

Corner radius - inch (RE)

M8340

Corner radius - millimeter (RE)

PVD

Cutting edge length - inch (L)

0.612

Cutting edge length - millimeter (L)

15.55

Depth of cut maximum - inch (APMX)

0.512

Depth of cut maximum - millimeter (APMX)

13

Feed maximal - millimeter

0.3

Feed minimal - millimeter

0.15

Feed_MAX_IMP_NUM

0.039

Feed_MIN_IMP_NUM

1

Fixing hole diameter - inch (D1)

0.173

Fixing hole diameter - millimeter (D1)

4.4

Insert cutting diameter - millimeter (CDI)

5.6

Insert diameter - inch (INSD)

0.375

Insert diameter - millimeter (INSD)

9.525

Insert shape code (SC)

A - parallelogram 85° included angle

Insert thickness - inch (S)

0.8

Insert thickness - millimeter (S)

5.6

Insert width - inch (W1)

0.375

Insert width - millimeter (W1)

9.525

Major cutting edge angle (KRINS)

0.031
