Pramet APKT 1003PDER-M:M8340 6800815 Milling Insert - Square Shoulder

Coating

0.01

Coating process

0.004

Coating property (CTP)

1

Cooling effect

M

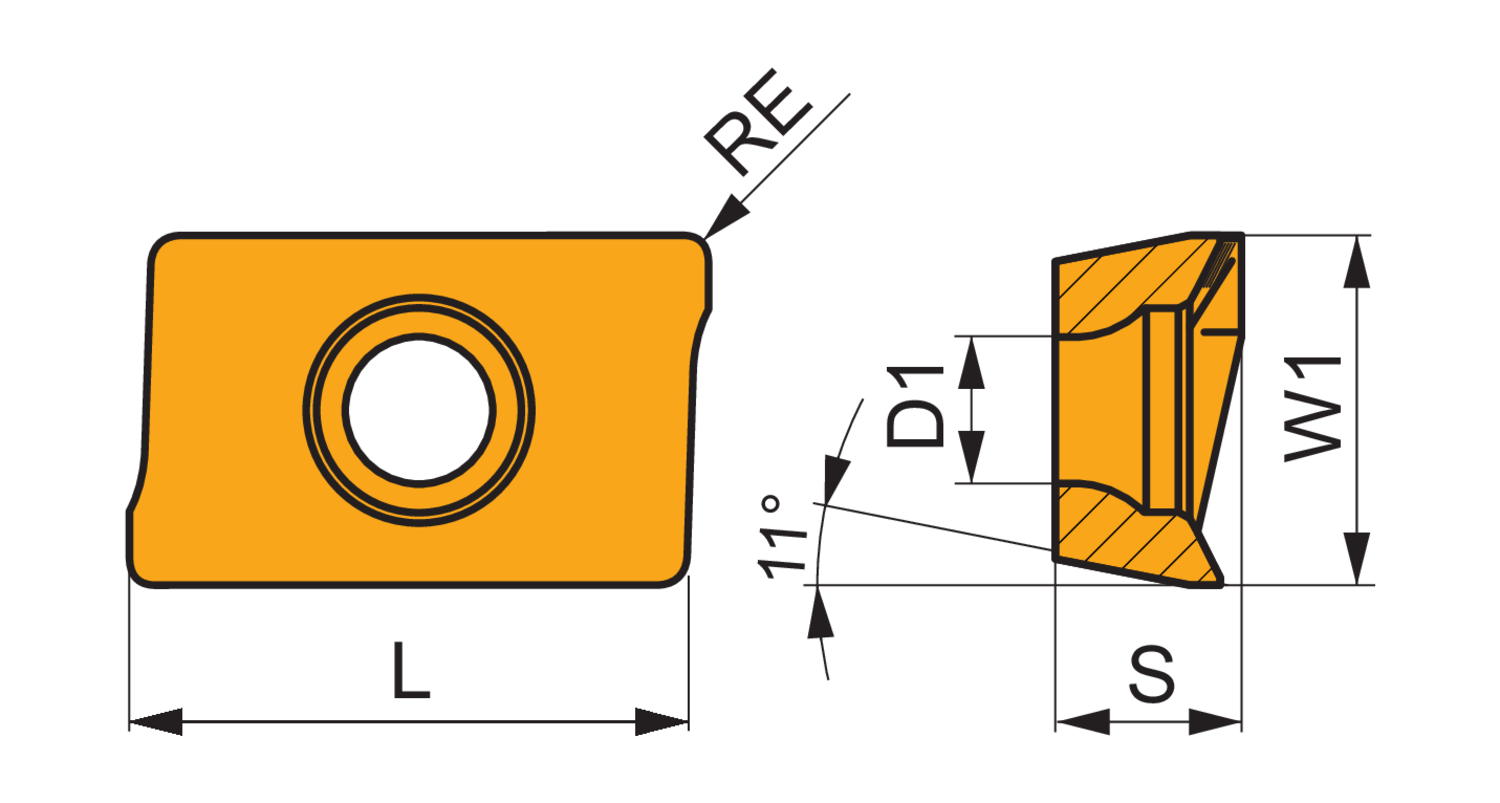

Corner radius - inch (RE)

M8340

Corner radius - millimeter (RE)

PVD

Cutting edge length - inch (L)

0.433

Cutting edge length - millimeter (L)

11

Depth of cut maximum - inch (APMX)

0.354

Depth of cut maximum - millimeter (APMX)

9

Feed maximal - millimeter

0.25

Feed minimal - millimeter

0.1

Feed_MAX_IMP_NUM

0.039

Feed_MIN_IMP_NUM

1

Fixing hole diameter - inch (D1)

0.113

Fixing hole diameter - millimeter (D1)

2.88

Insert cutting diameter - millimeter (CDI)

3.5

Insert diameter - inch (INSD)

0.264

Insert diameter - millimeter (INSD)

6.7

Insert shape code (SC)

A - parallelogram 85° included angle

Insert thickness - inch (S)

0.5

Insert thickness - millimeter (S)

3.5

Insert width - inch (W1)

0.264

Insert width - millimeter (W1)

6.7

Major cutting edge angle (KRINS)

0.02
