Pramet APKT 160416-HM:M8340 6800817 Milling Insert - Square Shoulder
MODEL 6800817
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.14 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Coating
0.014
Coating process
0.008
Coating property (CTP)
1
Cooling effect
HM

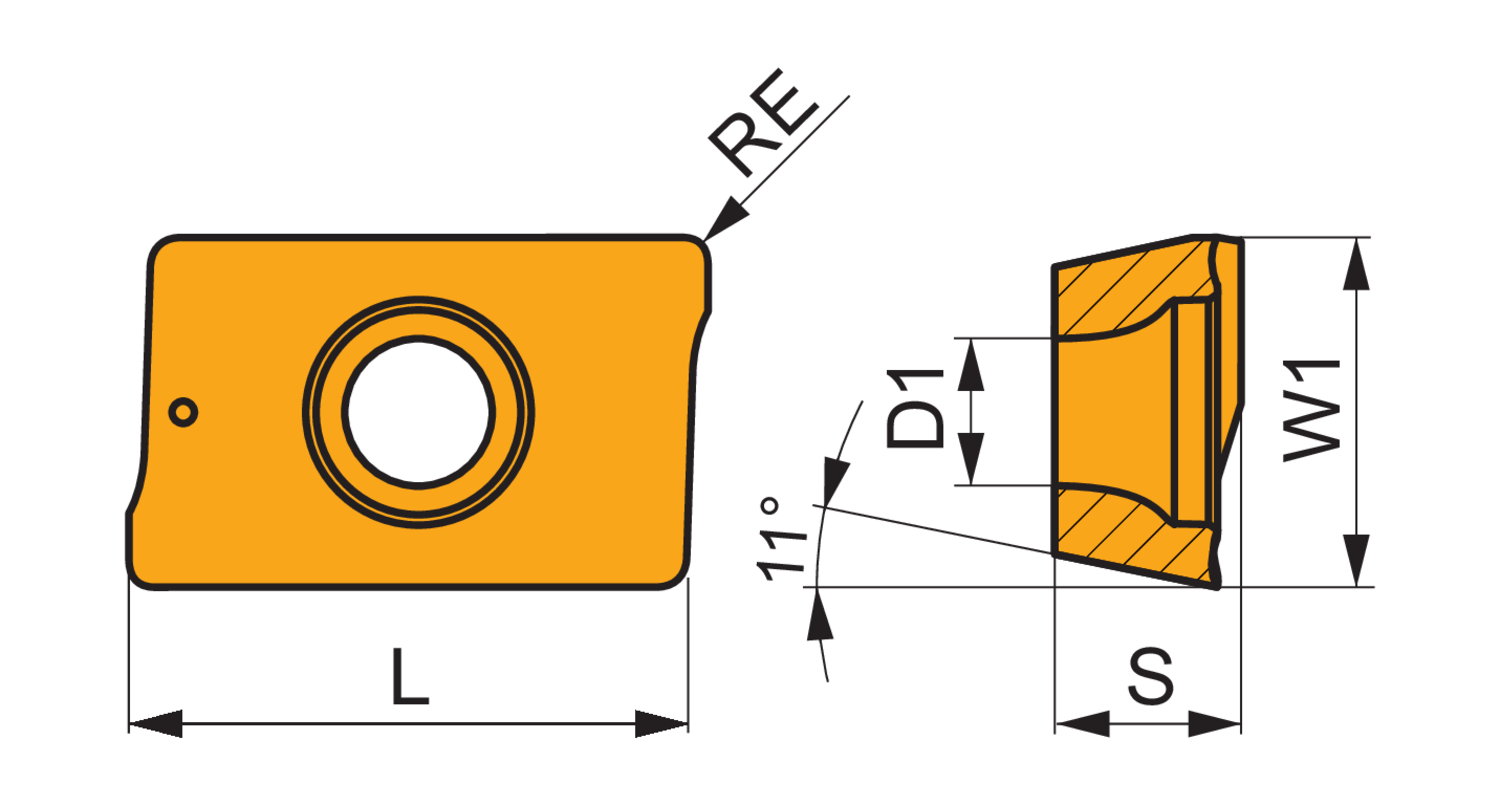

Corner radius - inch (RE)
M8340
Corner radius - millimeter (RE)
PVD
Cutting edge length - inch (L)
0.669
Cutting edge length - millimeter (L)
17
Depth of cut maximum - inch (APMX)
0.512
Depth of cut maximum - millimeter (APMX)
13
Feed maximal - millimeter
0.35
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.039
Feed_MIN_IMP_NUM
1
Fixing hole diameter - inch (D1)
0.181
Fixing hole diameter - millimeter (D1)
4.6
Insert cutting diameter - millimeter (CDI)
5.67
Insert diameter - inch (INSD)
0.372
Insert diameter - millimeter (INSD)
9.44
Insert shape code (SC)
A - parallelogram 85° included angle
Insert thickness - inch (S)
1.6
Insert thickness - millimeter (S)
5.67
Insert width - inch (W1)
0.372
Insert width - millimeter (W1)
9.44
Major cutting edge angle (KRINS)
0.063
Single-sided milling insert APKT 1604 with chip-breakers, 85° parallelogram for a maximum depth of cut of 13.0mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-K and HM geometry, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with shoulder mills SAP16D
