Pramet HNGX 0604ANSN-M:M8330 7447878 Milling Insert - Face
MODEL 7447878
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$16.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
M
Coating
M8330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Depth of cut maximum - inch (APMX)
0.118
Depth of cut maximum - millimeter (APMX)
3
Depth of cut minimum - inch (APMN)
0.024
Depth of cut minimum - millimeter (APMN)
0.6
Feed maximal - millimeter
0.25
Feed minimal - millimeter
0.13
Feed_MAX_IMP_NUM
0.01
Feed_MIN_IMP_NUM
0.005

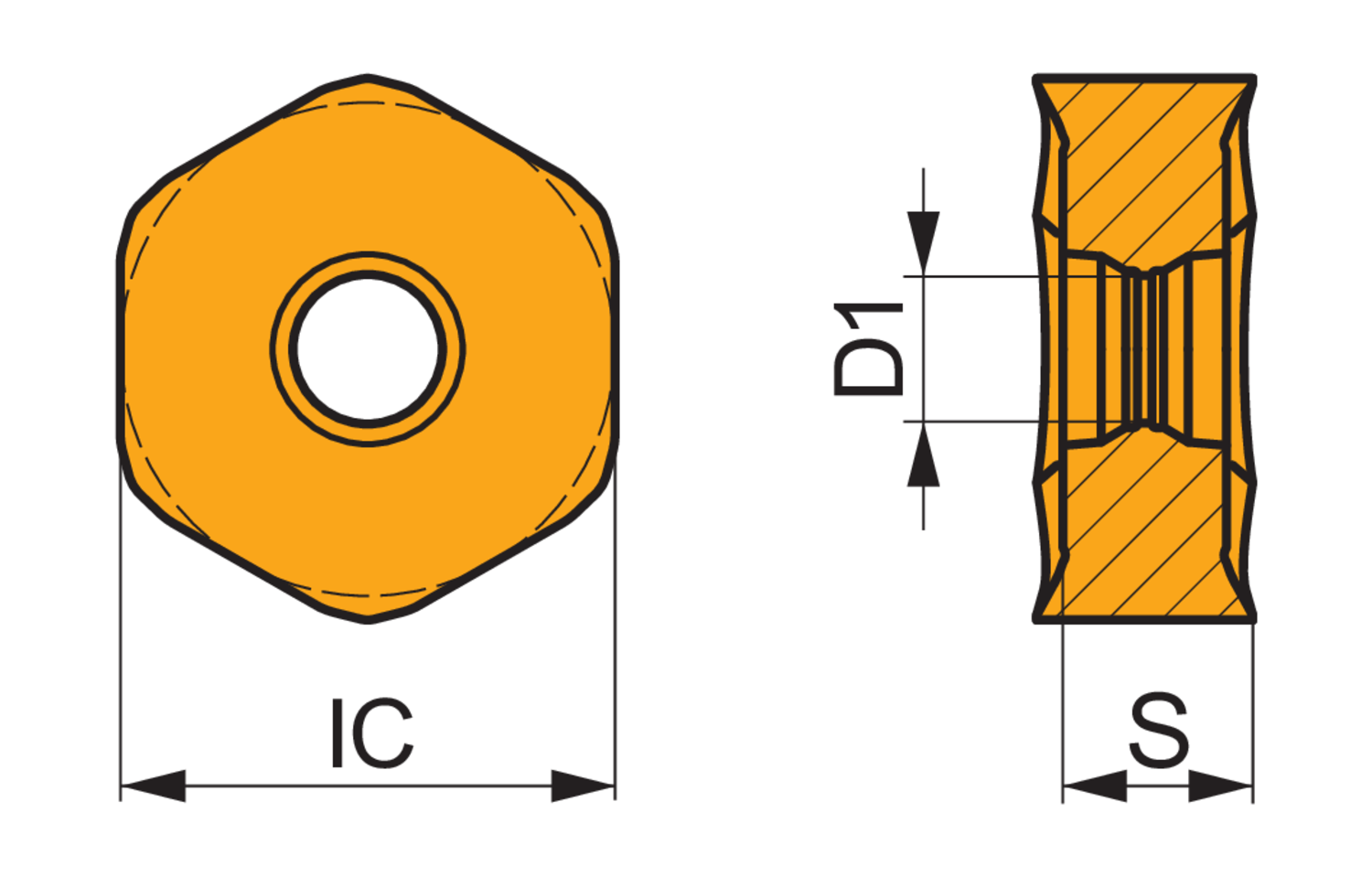

Fixing hole diameter - inch (D1)
0.146
Fixing hole diameter - millimeter (D1)
3.7
Inscribed circle diameter - inch (IC)
0.413
Inscribed circle diameter - millimeter (IC)
10.5
Insert shape code (SC)
H - hexagonal
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Double-sided milling insert HNGX 0604, hectagonal for a maximum depth of cut of 3.0mm, with an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with face mills SHN06C
