Pramet LNGX 120508ER-M:M9325 6753696 Milling Insert - Square Shoulder
MODEL 6753696
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.54 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Coating
0.006
Coating process
0.002
Coating property (CTP)
1
Cooling effect
M

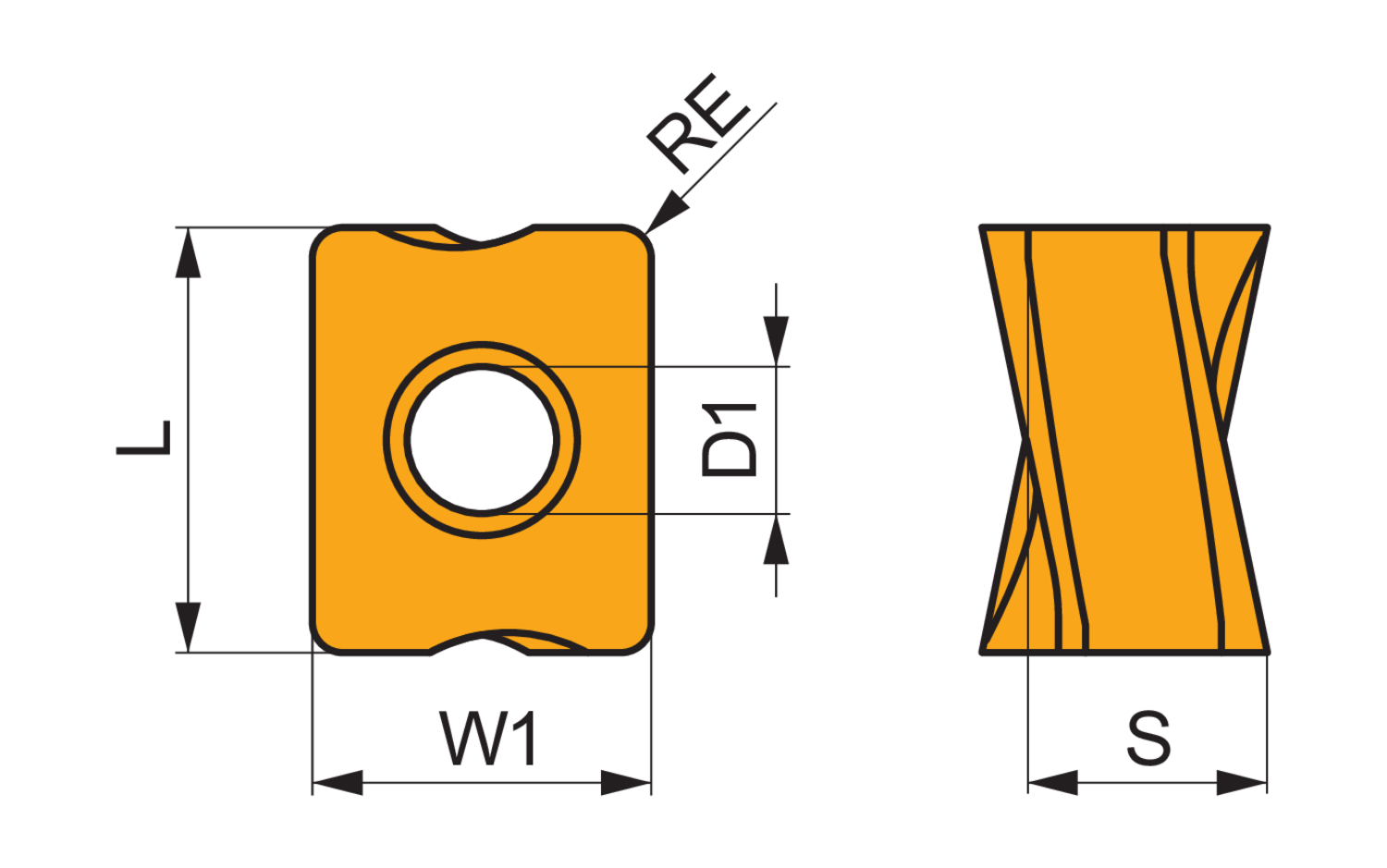

Corner radius - inch (RE)
M9325
Corner radius - millimeter (RE)
MT-CVD
Cutting edge length - inch (L)
0.472
Cutting edge length - millimeter (L)
12
Depth of cut maximum - inch (APMX)
0.354
Depth of cut maximum - millimeter (APMX)
9
Feed maximal - millimeter
0.15
Feed minimal - millimeter
0.05
Feed_MAX_IMP_NUM
0.008
Feed_MIN_IMP_NUM
0.2
Fixing hole diameter - inch (D1)
0.177
Fixing hole diameter - millimeter (D1)
4.5
Insert cutting diameter - millimeter (CDI)
5.96
Insert diameter - inch (INSD)
0.374
Insert diameter - millimeter (INSD)
9.5
Insert shape code (SC)
L - rectangular
Insert thickness - inch (S)
0.8
Insert thickness - millimeter (S)
5.96
Insert width - inch (W1)
0.374
Insert width - millimeter (W1)
9.5
Major cutting edge angle (KRINS)
0.031
Wiper edge length - inch (BS)
Very negative effect on tool life - cooling is not recommended
Double-sided milling insert LNGX 1205, rectangular for a maximum depth of cut of 9.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges, M9325 MT-CVD coated WC-Co carbide for machining of steel with shoulder mills SLN12
