Pramet OEHT 0604AEER-MM:M6330 6931677 Milling Insert - Face
MODEL 6931677
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.54 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
MM
Coating
M6330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Depth of cut maximum - inch (APMX)
0.13
Depth of cut maximum - millimeter (APMX)
3.3
Depth of cut minimum - inch (APMN)
0.02
Depth of cut minimum - millimeter (APMN)
0.5
Feed maximal - millimeter
0.25
Feed minimal - millimeter
0.08
Feed_MAX_IMP_NUM
0.01
Feed_MIN_IMP_NUM
0.003

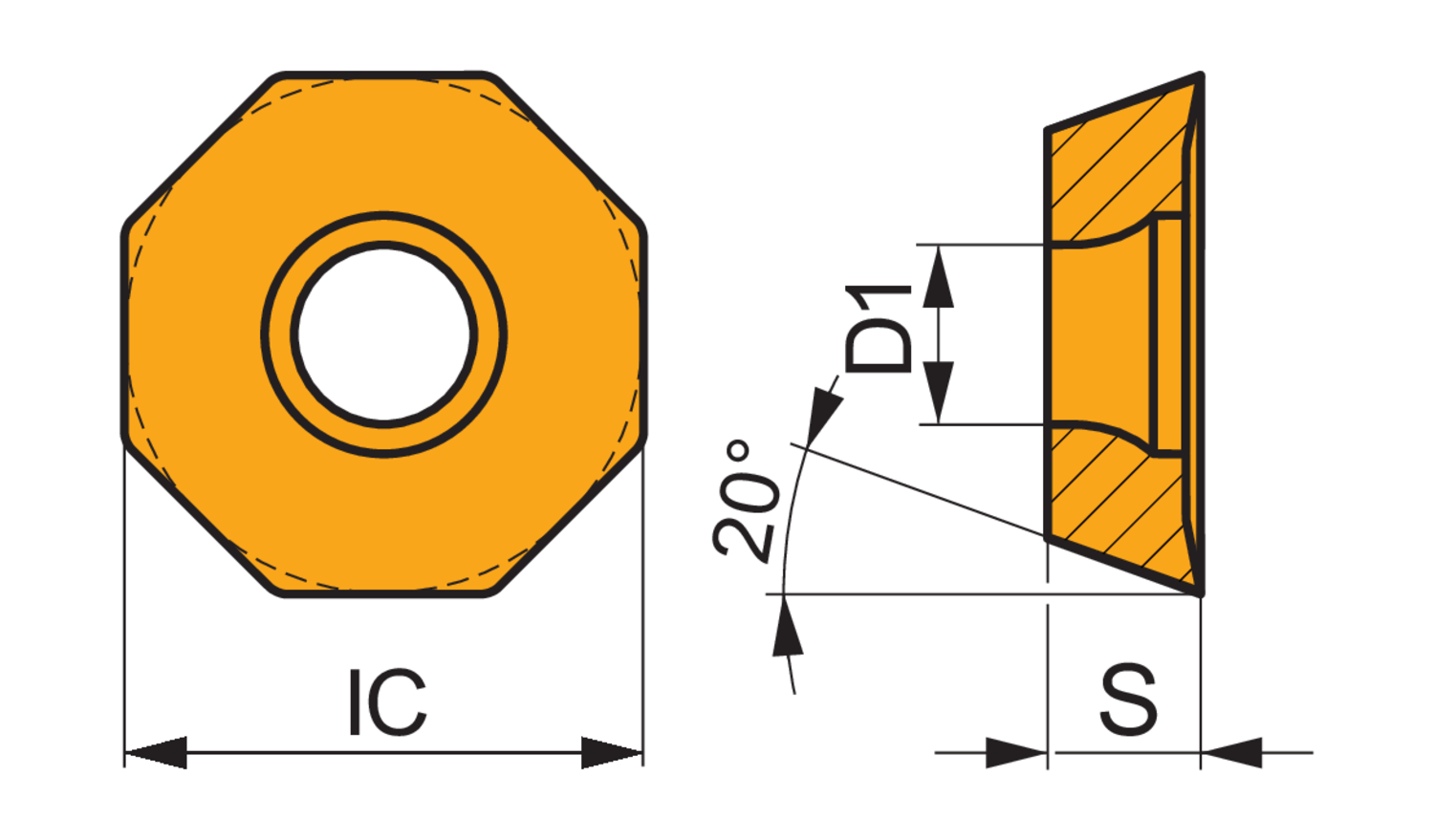

Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.632
Inscribed circle diameter - millimeter (IC)
16.05
Insert shape code (SC)
O - octagonal
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Single-sided milling insert OEHT 0604 with chip-breakers, octagonal for a maximum depth of cut of 3.3mm, with an indexing accuracy according to ISO-tolerance class-H and MM geometry with rounded cutting edges, M6330 PVD coated WC-Co carbide within ISO-grade ranges M20-M35 and S10-S30 for machining of stainless-steel and superalloy with face mills SOE06Z
