Pramet REHT 1604M0EN-MM:M8340 6931662 Milling Insert - Copy And Profile
MODEL 6931662
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$15.78 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
MM
Coating
M8340
Coating process
PVD
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
0.157
Depth of cut maximum - millimeter (APMX)
4
Depth of cut minimum - inch (APMN)
0.02
Depth of cut minimum - millimeter (APMN)
0.5
Feed maximal - millimeter
0.25
Feed minimal - millimeter
0.08
Feed_MAX_IMP_NUM
0.01
Feed_MIN_IMP_NUM
0.003

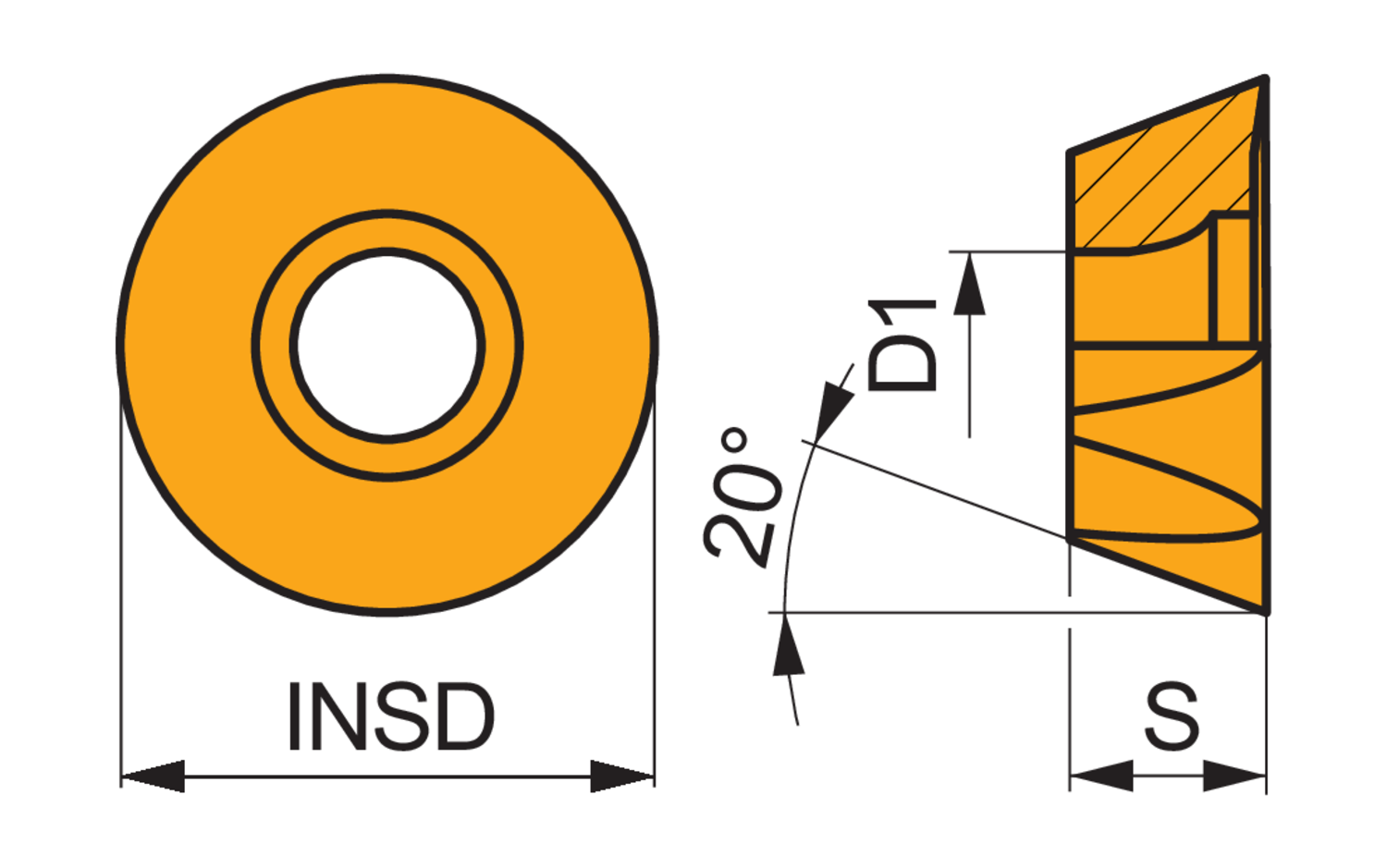

Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Insert diameter - inch (INSD)
0.63
Insert diameter - millimeter (INSD)
16
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Single-sided milling insert REHT 1604 with chip-breakers, round for a maximum depth of cut of 4.0mm, with an indexing accuracy according to ISO-tolerance class-H and MM geometry with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges M20-M40 and S20-S30 for machining of stainless-steel and superalloy with face mills SOE06Z
