Pramet XNGX 0906ANSN:M8330 7451120 Milling Insert - Face
MODEL 7451120
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$22.34 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
Wiper insert with chipbreaker - no designation
Coating
M8330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Depth of cut maximum - inch (APMX)
0.197
Depth of cut maximum - millimeter (APMX)
5
Depth of cut minimum - inch (APMN)
0.031
Depth of cut minimum - millimeter (APMN)
0.8
Feed maximal - millimeter
0.5
Feed minimal - millimeter
0.17
Feed_MAX_IMP_NUM
0.02
Feed_MIN_IMP_NUM
0.007

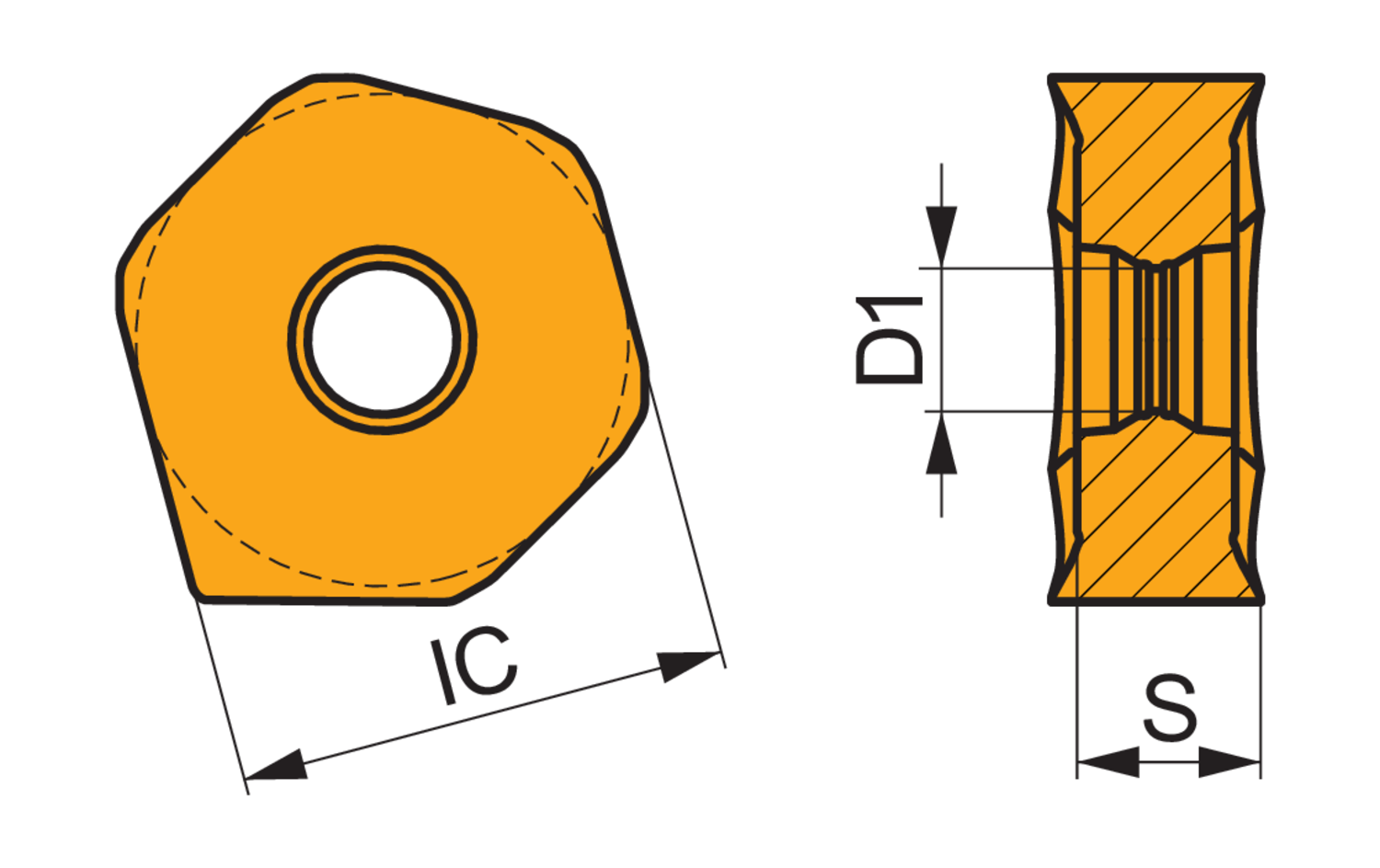

Fixing hole diameter - inch (D1)
0.193
Fixing hole diameter - millimeter (D1)
4.9
Inscribed circle diameter - inch (IC)
0.65
Inscribed circle diameter - millimeter (IC)
16.5
Insert shape code (SC)
X - Special design
Insert thickness - inch (S)
0.25
Insert thickness - millimeter (S)
6.35
Double-sided milling insert XNGX 0906, special shape and wiper design for a maximum depth of cut of 5.0mm, with an indexing accuracy according to ISO-tolerance class-G with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with face mills SHN09C
