Pramet XNHQ 1606AZTN:M8340 6803613 Disc Mill Insert - Slotting
MODEL 6803613
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$35.03 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
M8340
Coating process
PVD
Coating property (CTP)
1

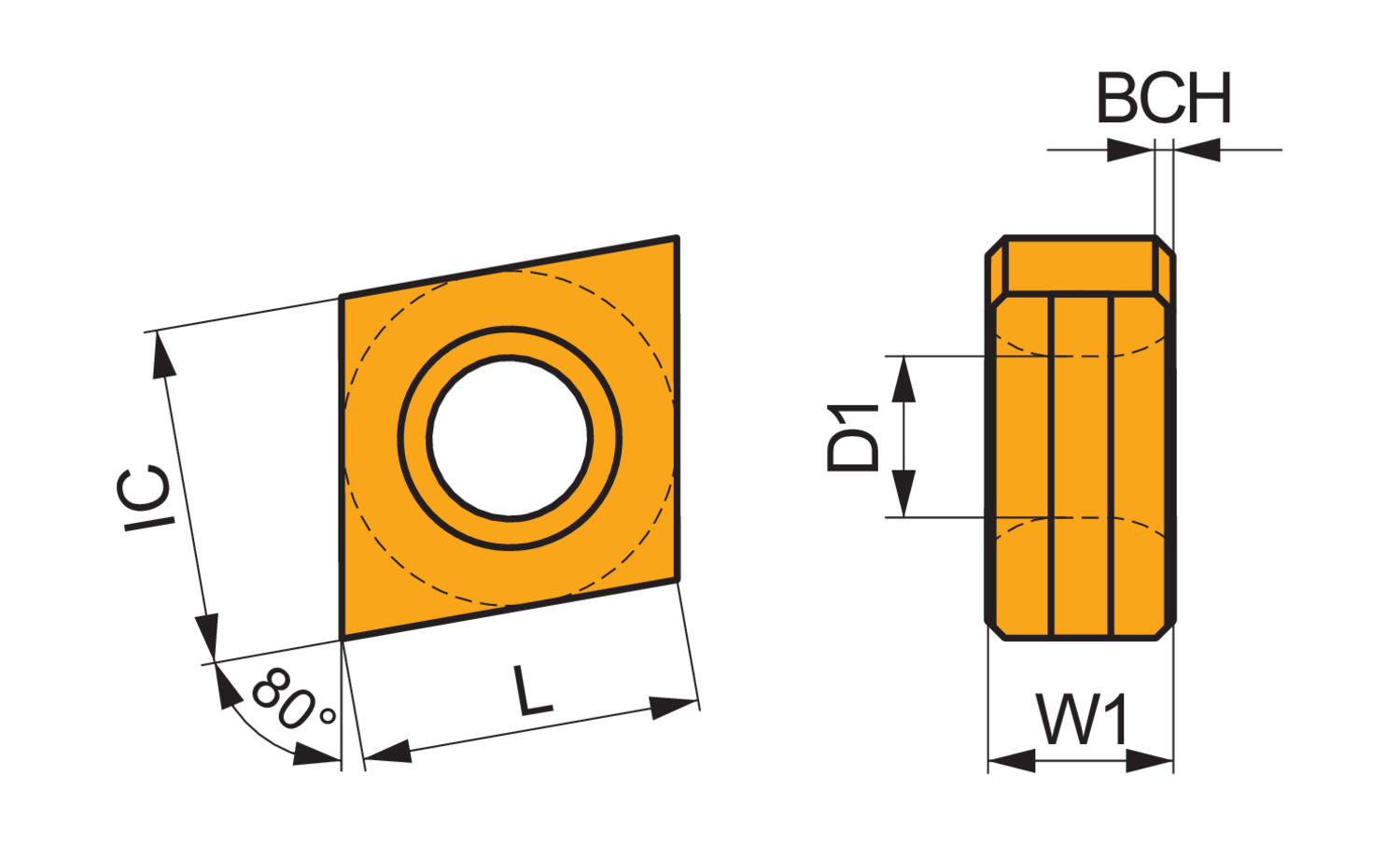

Corner chamfer length - millimeter (BCH)
0.5
Cutting edge length - inch (L)
0.63
Cutting edge length - millimeter (L)
16
Feed maximal - millimeter
0.6
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.024
Feed_MIN_IMP_NUM
0.004
Fixing hole diameter - inch (D1)
0.232
Fixing hole diameter - millimeter (D1)
5.9
Inscribed circle diameter - inch (IC)
0.472
Inscribed circle diameter - millimeter (IC)
12
Insert shape code (SC)
X - Special design
Insert width - inch (W1)
0.252
Insert width - millimeter (W1)
6.4
Double-sided disc milling insert, for a cutting width of 24.5 to maximum 30.5mm with cutting edges with facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with disc mills S90CN(XN)
