Pramet BNGX 10T308SR-MM:M6330 7253609 Milling Insert - High Feed
MODEL 7253609
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$16.57 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
MM
Coating
M6330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

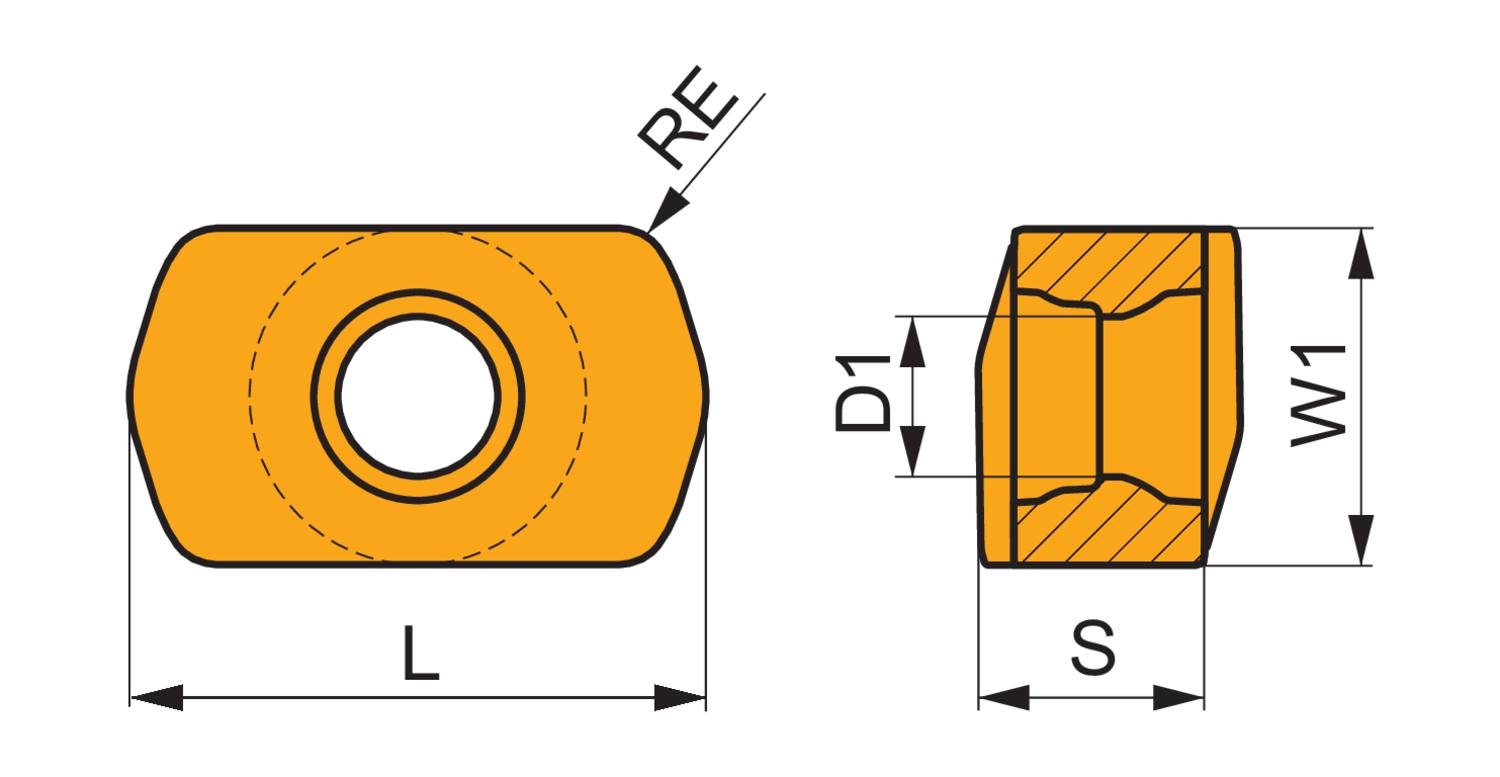

Corner radius - inch (RE)
0.031
Corner radius - millimeter (RE)
0.8
Cutting edge length - inch (L)
0.391
Cutting edge length - millimeter (L)
9.92
Depth of cut maximum - inch (APMX)
0.039
Depth of cut maximum - millimeter (APMX)
1
Feed maximal - millimeter
1.1
Feed minimal - millimeter
0.25
Feed_MAX_IMP_NUM
0.043
Feed_MIN_IMP_NUM
0.01
Fixing hole diameter - inch (D1)
0.109
Fixing hole diameter - millimeter (D1)
2.76
Insert shape code (SC)
B - parallelogram 82° included angle
Insert thickness - inch (S)
0.154
Insert thickness - millimeter (S)
3.9
Insert width - inch (W1)
0.228
Insert width - millimeter (W1)
5.8
Double-sided milling insert BNGX 10T3, 82° parallelogram and high-feed design for a maximum depth of cut of 1.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and MM geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade ranges M20-M35 and S10-S30 for machining of stainless-steel and superalloy with high feed cutters SBN10
