Pramet PDKT 090530ER-FM:M6330 6925531 Milling Insert - High Feed
MODEL 6925531
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
FM
Coating
M6330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

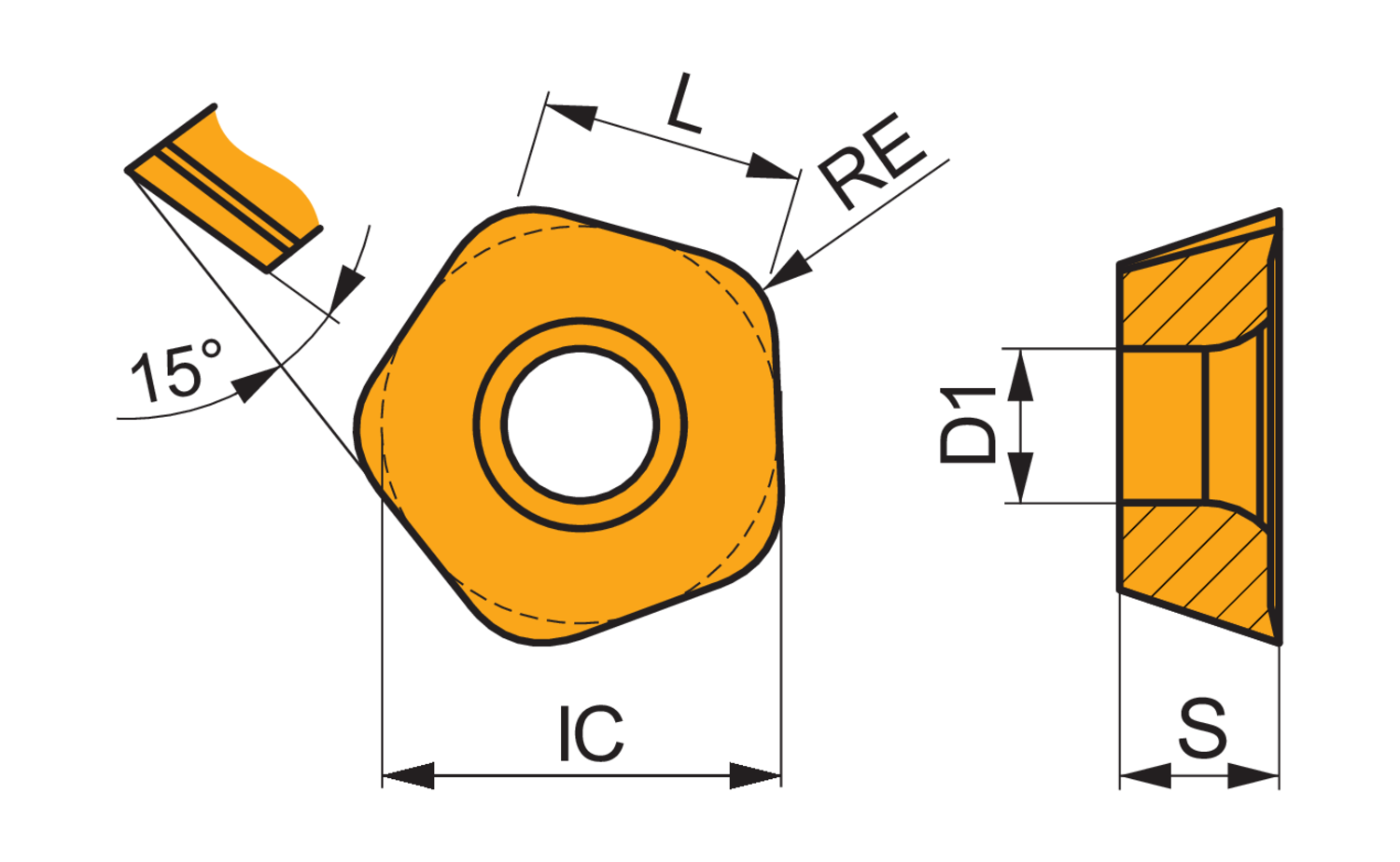

Corner radius - inch (RE)
0.118
Corner radius - millimeter (RE)
3
Cutting edge length - inch (L)
0.354
Cutting edge length - millimeter (L)
9
Depth of cut maximum - inch (APMX)
0.079
Depth of cut maximum - millimeter (APMX)
2
Feed maximal - millimeter
2.5
Feed minimal - millimeter
0.5
Feed_MAX_IMP_NUM
0.098
Feed_MIN_IMP_NUM
0.02
Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.531
Inscribed circle diameter - millimeter (IC)
13.5
Insert shape code (SC)
P - pentagonal
Insert thickness - inch (S)
0.215
Insert thickness - millimeter (S)
5.47
Single-sided milling insert PDKT 0905 with chip-breakers, pentagonal for a maximum depth of cut of 2.0mm, with 3.0mm corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with high feed cutters SPD09
