Pramet PDMX 0905ZESR-R:M9325 7049050 Milling Insert - High Feed
MODEL 7049050
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$16.17 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
R
Coating
M9325
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very negative effect on tool life - cooling is not recommended

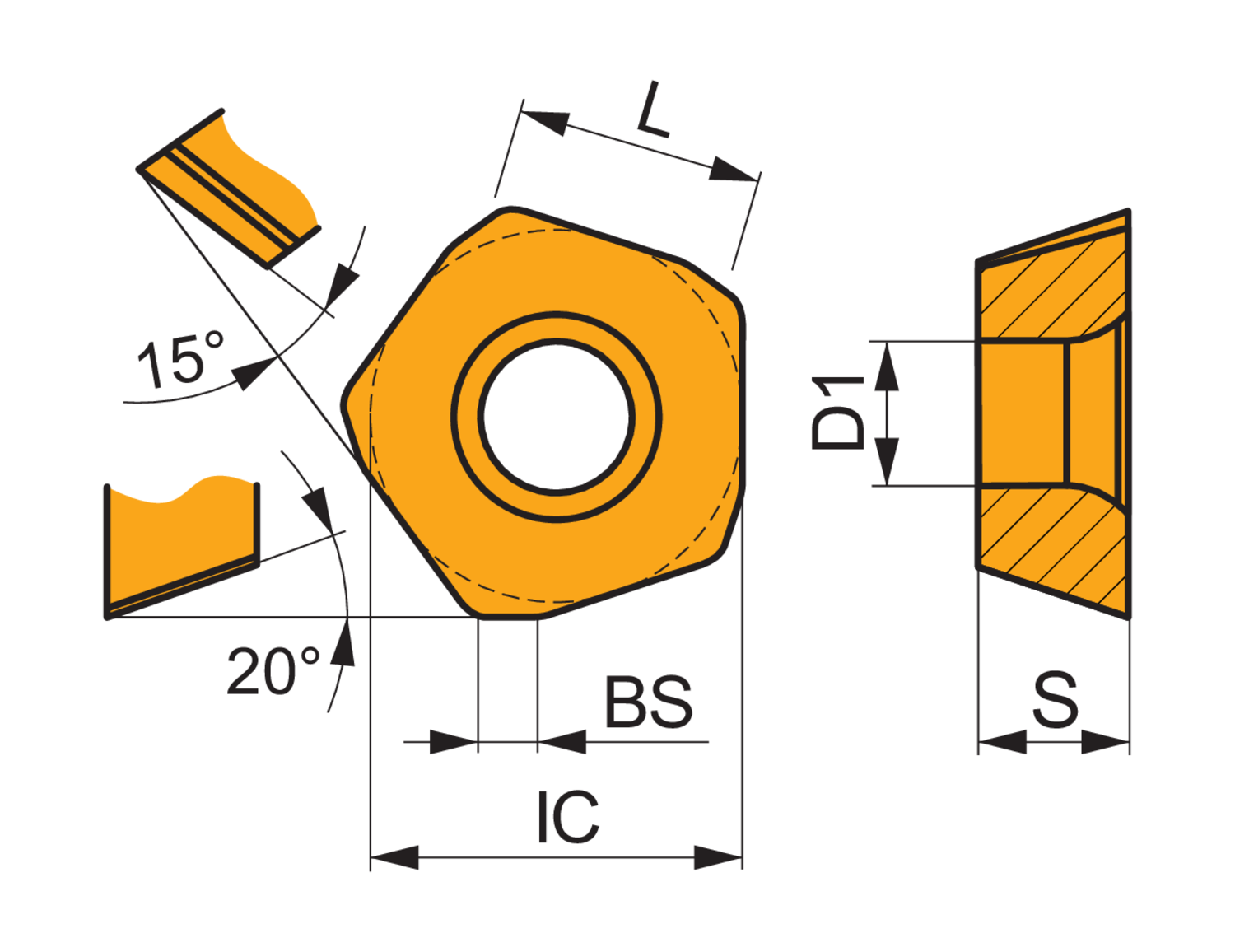

Cutting edge length - inch (L)
0.354
Cutting edge length - millimeter (L)
9
Depth of cut maximum - inch (APMX)
0.079
Depth of cut maximum - millimeter (APMX)
2
Feed maximal - millimeter
1.75
Feed minimal - millimeter
0.5
Feed_MAX_IMP_NUM
0.069
Feed_MIN_IMP_NUM
0.02
Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.531
Inscribed circle diameter - millimeter (IC)
13.5
Insert shape code (SC)
P - pentagonal
Insert thickness - inch (S)
0.215
Insert thickness - millimeter (S)
5.47
Wiper edge length - inch (BS)
0.079
Wiper edge length - millimeter (BS)
2
Single-sided milling insert PDMX 0905, pentagonal for a maximum depth of cut of 2.0mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide for machining with high feed cutters SPD09
