Pramet HNEF 0905DNFN-F:M5315 6756109 Milling Insert - Face
MODEL 6756109
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$23.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
F
Coating
M5315
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very negative effect on tool life - cooling is not recommended

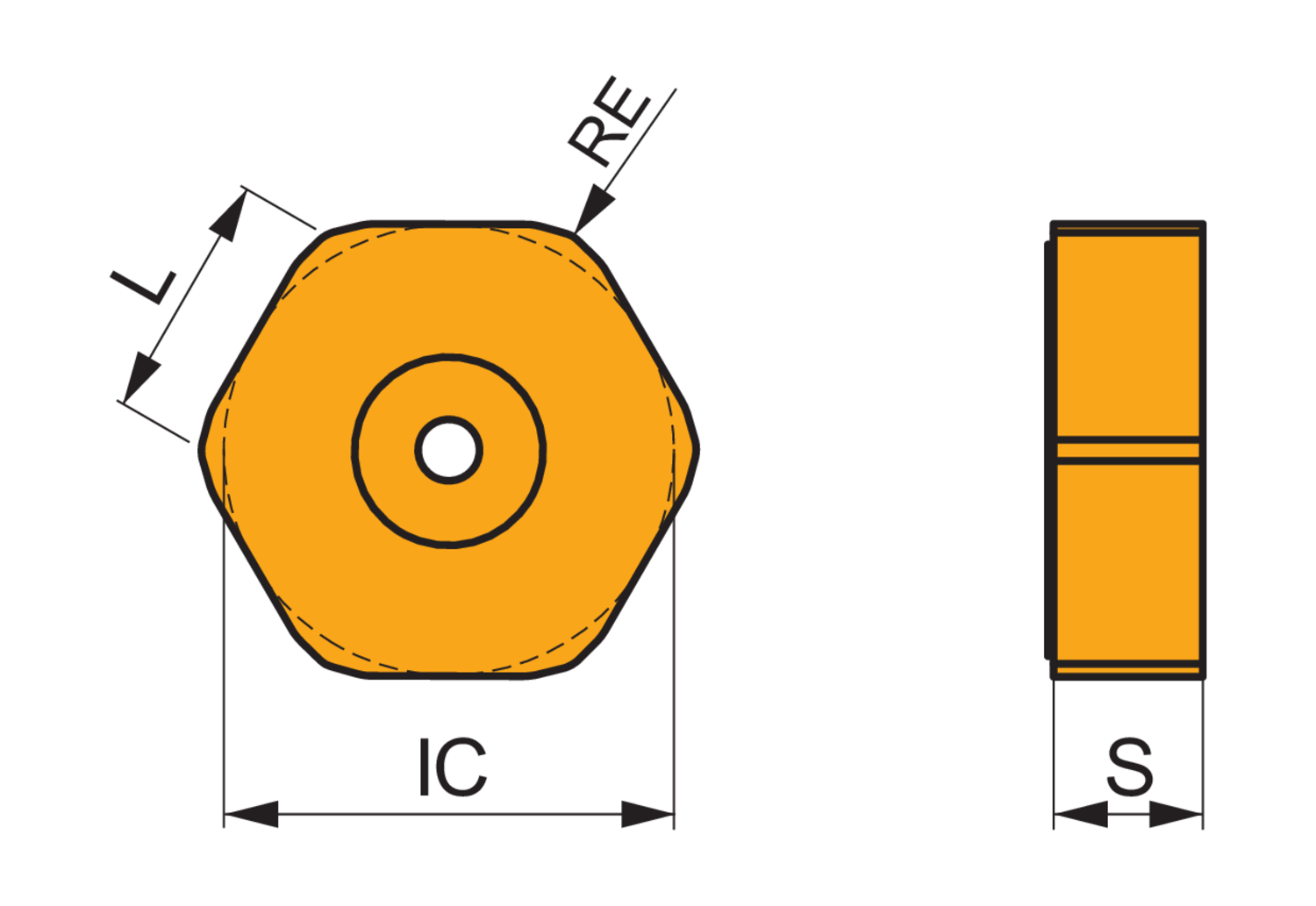

Corner radius - inch (RE)
0.016
Corner radius - millimeter (RE)
0.4
Cutting edge length - inch (L)
0.37
Cutting edge length - millimeter (L)
9.4
Depth of cut maximum - inch (APMX)
0.118
Depth of cut maximum - millimeter (APMX)
3
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.2
Feed minimal - millimeter
0.07
Feed_MAX_IMP_NUM
0.008
Feed_MIN_IMP_NUM
0.003
Inscribed circle diameter - inch (IC)
0.638
Inscribed circle diameter - millimeter (IC)
16.2
Insert shape code (SC)
H - hexagonal
Insert thickness - inch (S)
0.222
Insert thickness - millimeter (S)
5.64
Double-sided milling insert HNEF 0905DNF with chip-breakers, hectagonal for a maximum depth of cut of 3.0mm, with 0.4mm corner radius, an indexing accuracy according to ISO-tolerance class-E and F geometry with sharp cutting edges, M5315 MT-CVD coated WC-Co carbide within ISO-grade range K05-K25 for machining of cast-iron with face mills CHN09
