Pramet 260C12R-F90TB27X 6758486 Shell Milling Cutter - Heavy Duty
MODEL 6758486
$2,913.98 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

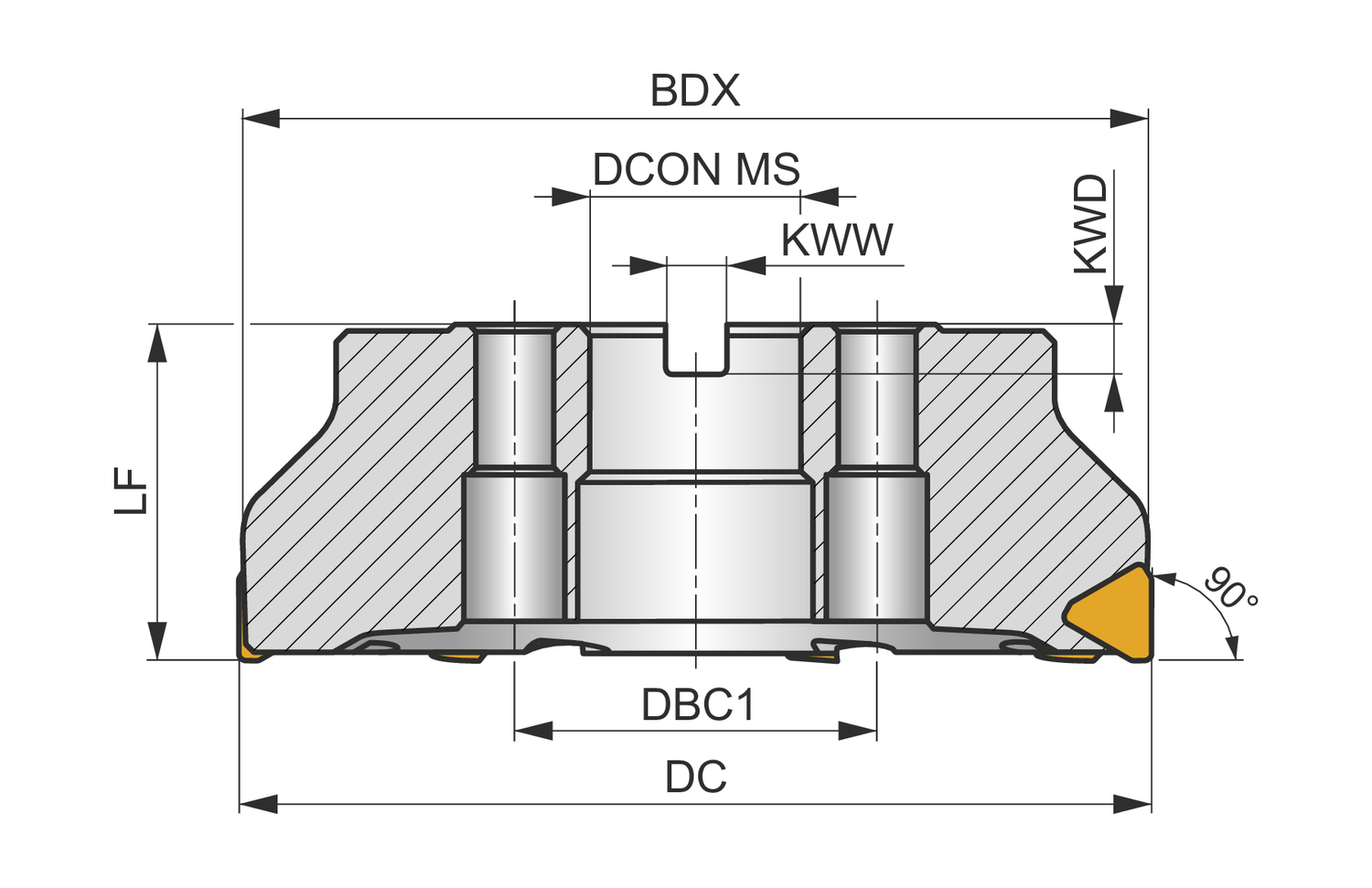

Axial rake angle (GAMP)
9
Clamping Type Code (MTP)
System F
Connection diameter - inch (DCON MS)
2.362
Connection diameter - millimeter (DCON MS)
60
Cutting diameter - inch (DC)
10.236
Cutting diameter - millimeter (DC)
260
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
12
Keyway depth - millimeter (KWD)
25.7
Keyway width - millimeter (KWW)
25.7
Peripheral effective cutting edge count (ZEFP)
12
Radial rake angle (GAMF)
-9
Shank
Shell mill DIN 8030 C
Shoulder mill with positve/negative geometry which utilises 12 off TBMR 2707PZ.. single-sided inserts, cutting diameter 260mm with 90° approach angle and 60mm connection bore according to DIN 8030-C, 63mm protrusion length and differential pitch for shallow shoulder milling with a maximum depth of cut of 18.0mm
