$138.81 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

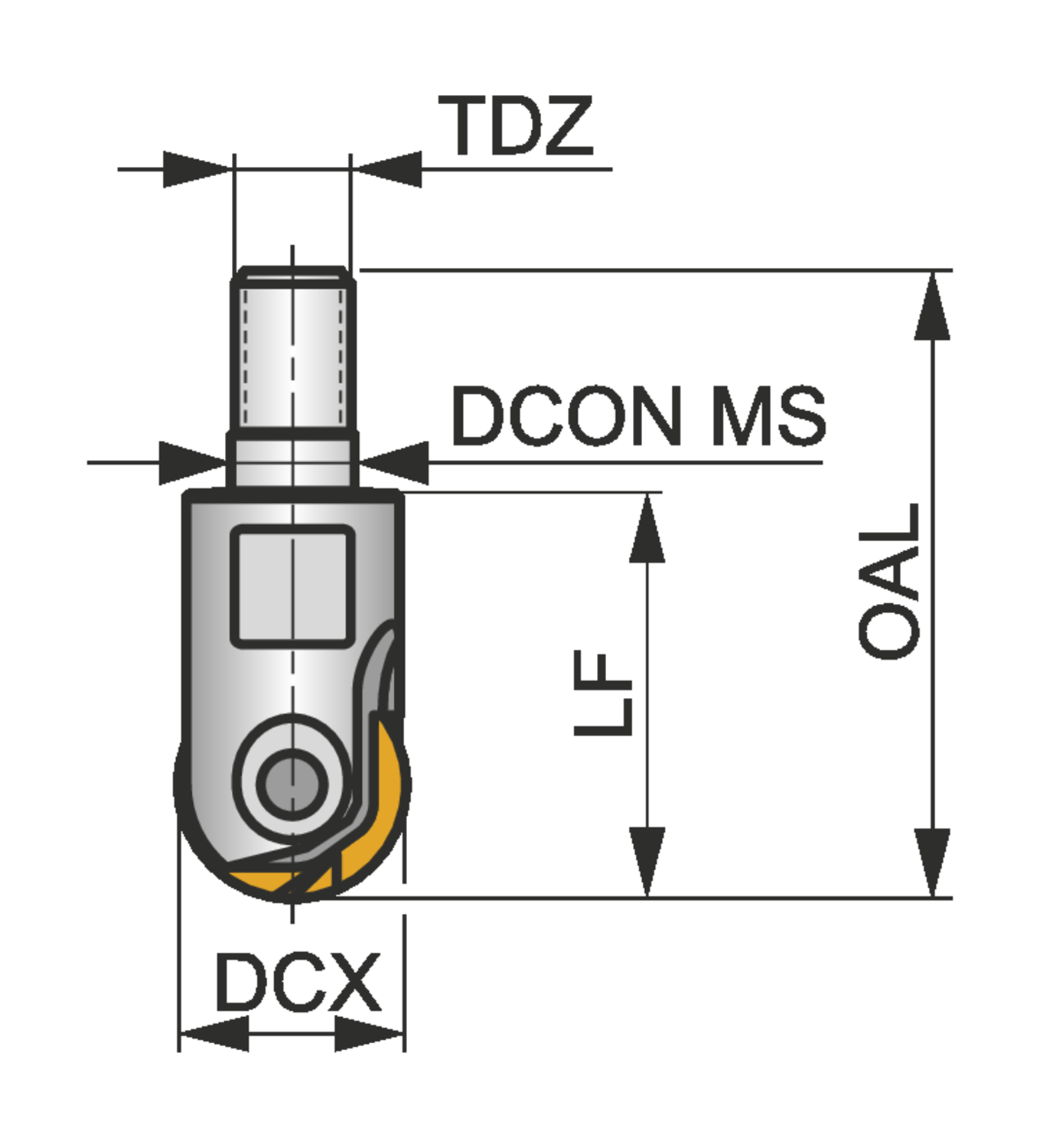

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.256
Connection diameter - millimeter (DCON MS)
6.5
Cutting diameter maximum - inch (DCX)
0.315
Cutting diameter maximum - millimeter (DCX)
8
Functional length - millimeter (LF)
30
Insert group used in the tool
RC 08, RC 08-F
Insert index count (NOI)
1
Overall length - inch (OAL)
1.772
Overall length - millimeter (OAL)
45
Peripheral effective cutting edge count (ZEFP)
2
Possible use
Finishing
Primary use
Roughing
Shank
Threaded coupling
Thread diameter size (TDZ)
M6
Copy end mill which utilises 1 off RC 08 or RC 08-F single-sided insert, cutting diameter 8mm with M6 threaded shank for standard modular tool-holders, 30mm protrusion length for copy milling with a maximum depth of cut of 0.6-3.2mm
