Pramet 125A07R-SMORC16-C 6920715 Shell Milling Cutter - Copy And Profile
MODEL 6920715
$632.36 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

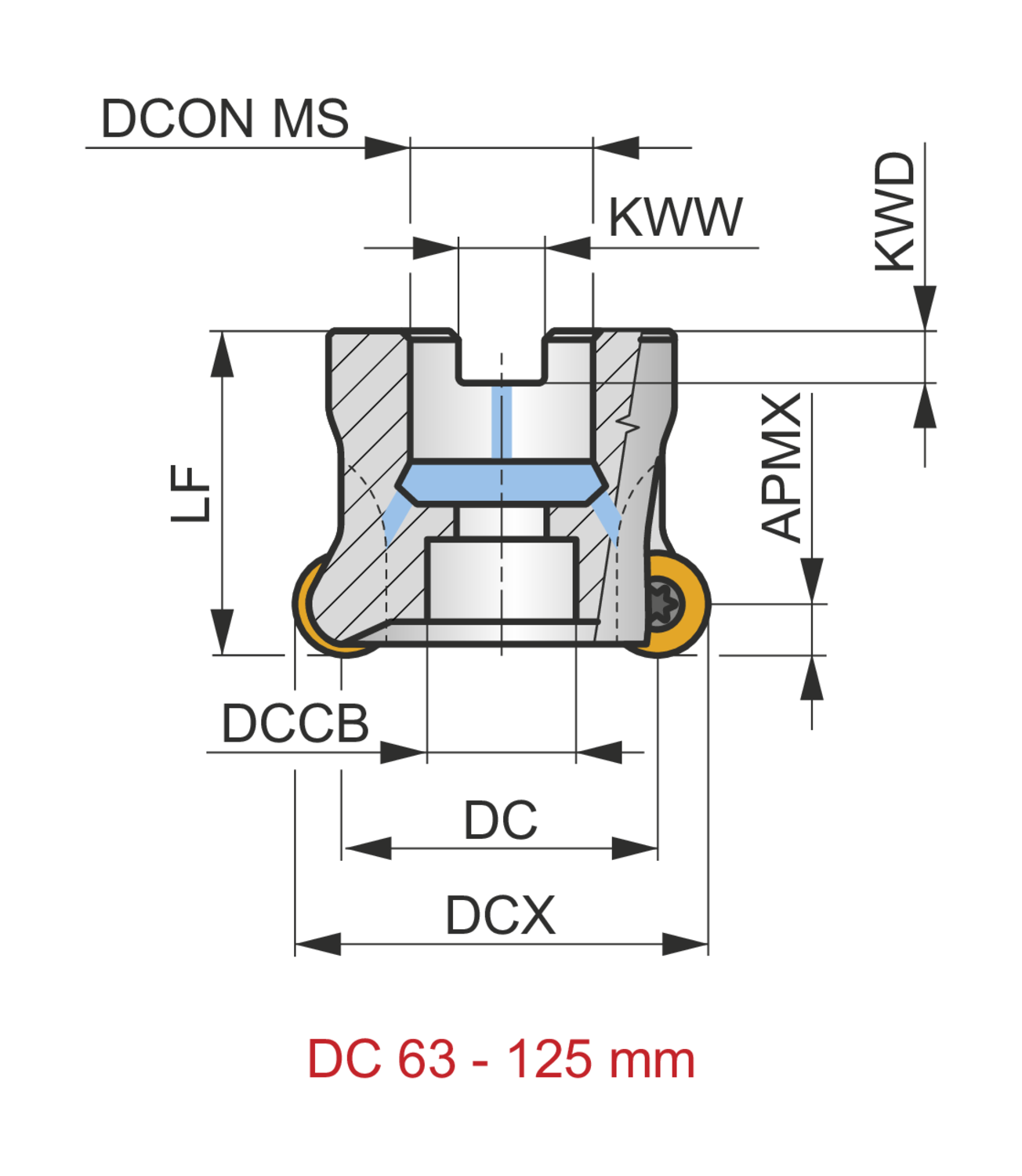

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.417
Counterbore diameter connection bore - millimeter (DCCB)
36
Cutting diameter - inch (DC)
4.291
Cutting diameter - millimeter (DC)
109
Cutting diameter maximum - inch (DCX)
4.921
Cutting diameter maximum - millimeter (DCX)
125
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
7
Keyway depth - millimeter (KWD)
9
Keyway width - millimeter (KWW)
16.4
Peripheral effective cutting edge count (ZEFP)
7
Radial rake angle (GAMF)
-1.2
Rotational speed maximum (RPMX)
6500
Shank
Shell mill DIN 8030 A
Copy face mill with double negative geometry which utilises 7 off RCMT 1606MO.. single-sided inserts, cutting diameter 125mm with 40mm connection bore according to DIN 8030-A, 63mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 8.0mm
