Pramet 150A4R169M16-ISAD11E-C 6790719 Modular Head For Square Shoulder Milling
MODEL 6790719
$352.68 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

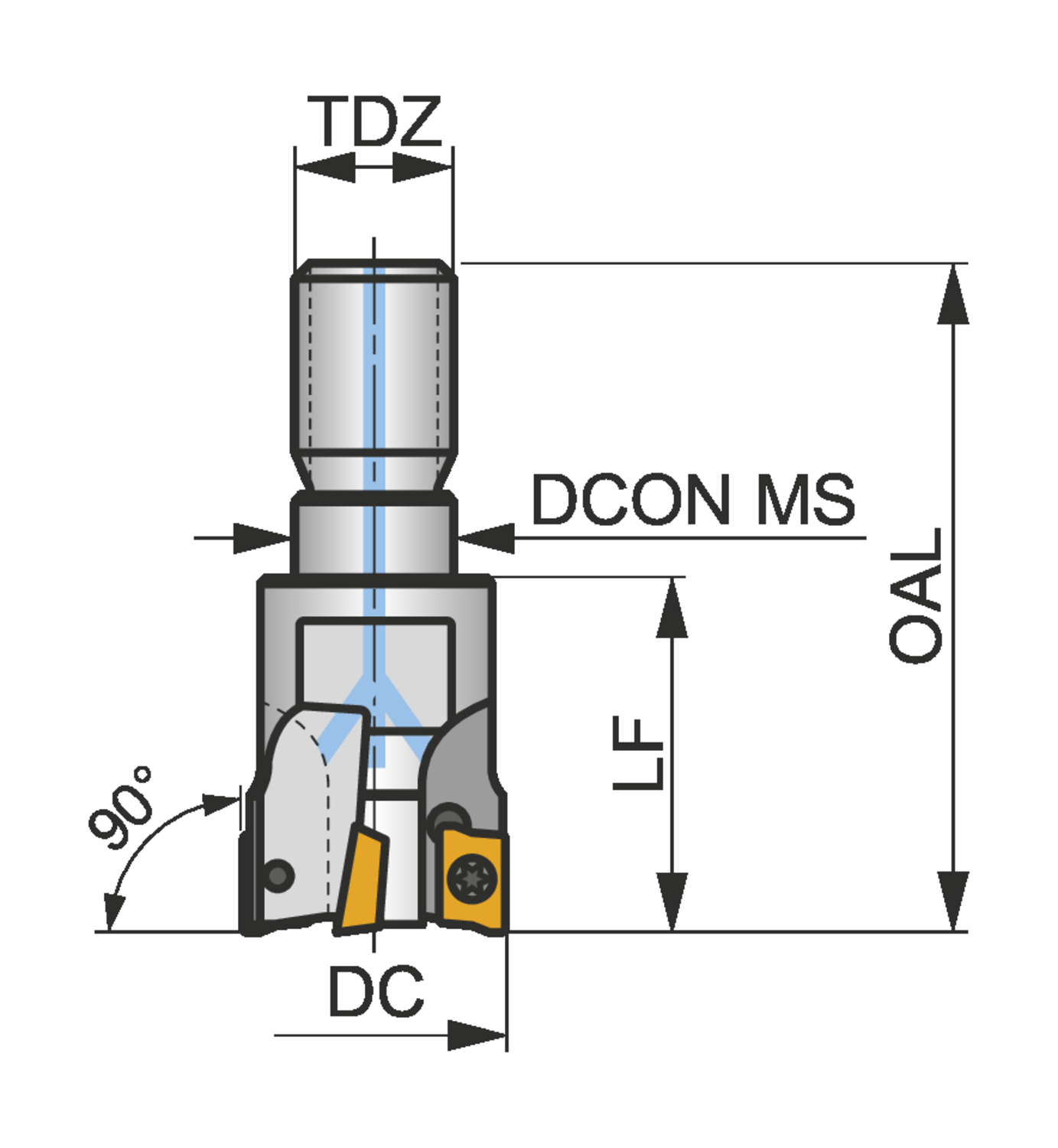

Axial rake angle (GAMP)
11
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.669
Connection diameter - millimeter (DCON MS)
17
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.5
Cutting diameter - millimeter (DC)
38.1
Functional length - inch (LF)
1.693
Hand (Cutting direction)
Right
Overall length - inch (OAL)
2.598
Overall length - millimeter (OAL)
66
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-8.1
Shank
Threaded coupling
Thread diameter size (TDZ)
M16
Shoulder mill with positve/negative geometry which utilises 4 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 1.500'' with 90° approach angle and M16 threaded shank for standard modular tool-holders, 1.693'' protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354''
