Pramet 15E2R080B20-SRD07-CF 7999270 End Milling Cutter - Copy And Profile
MODEL 7999270
$160.40 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

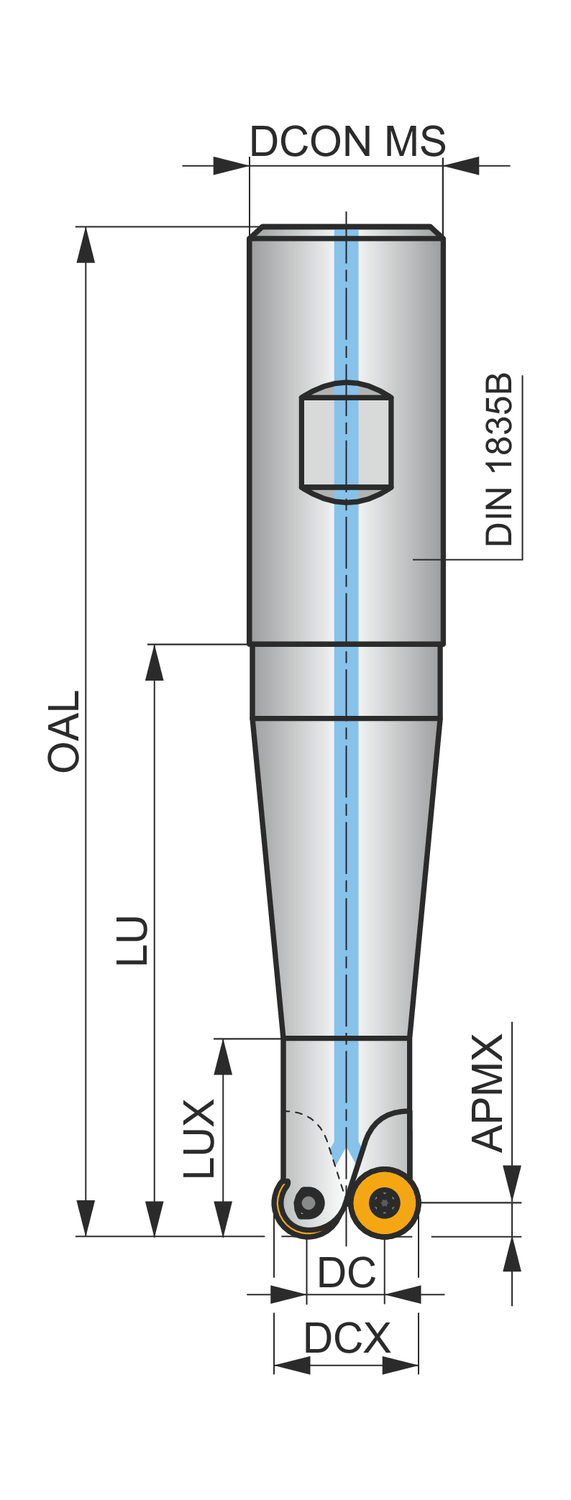

Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.315
Cutting diameter - millimeter (DC)
8
Cutting diameter maximum - inch (DCX)
0.591
Cutting diameter maximum - millimeter (DCX)
15
Depth of cut maximum - millimeter (APMX)
2
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
5.118
Overall length - millimeter (OAL)
130
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
1
Rotational speed maximum (RPMX)
44200
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
80
Usable Length maximum - millimeter (LUX)
22
Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15mm with 20mm Weldon shank according to DIN 1835B, 80mm usable and 130mm overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2mm
