Clamping Type Code (MTP)
Screw clamping through hole

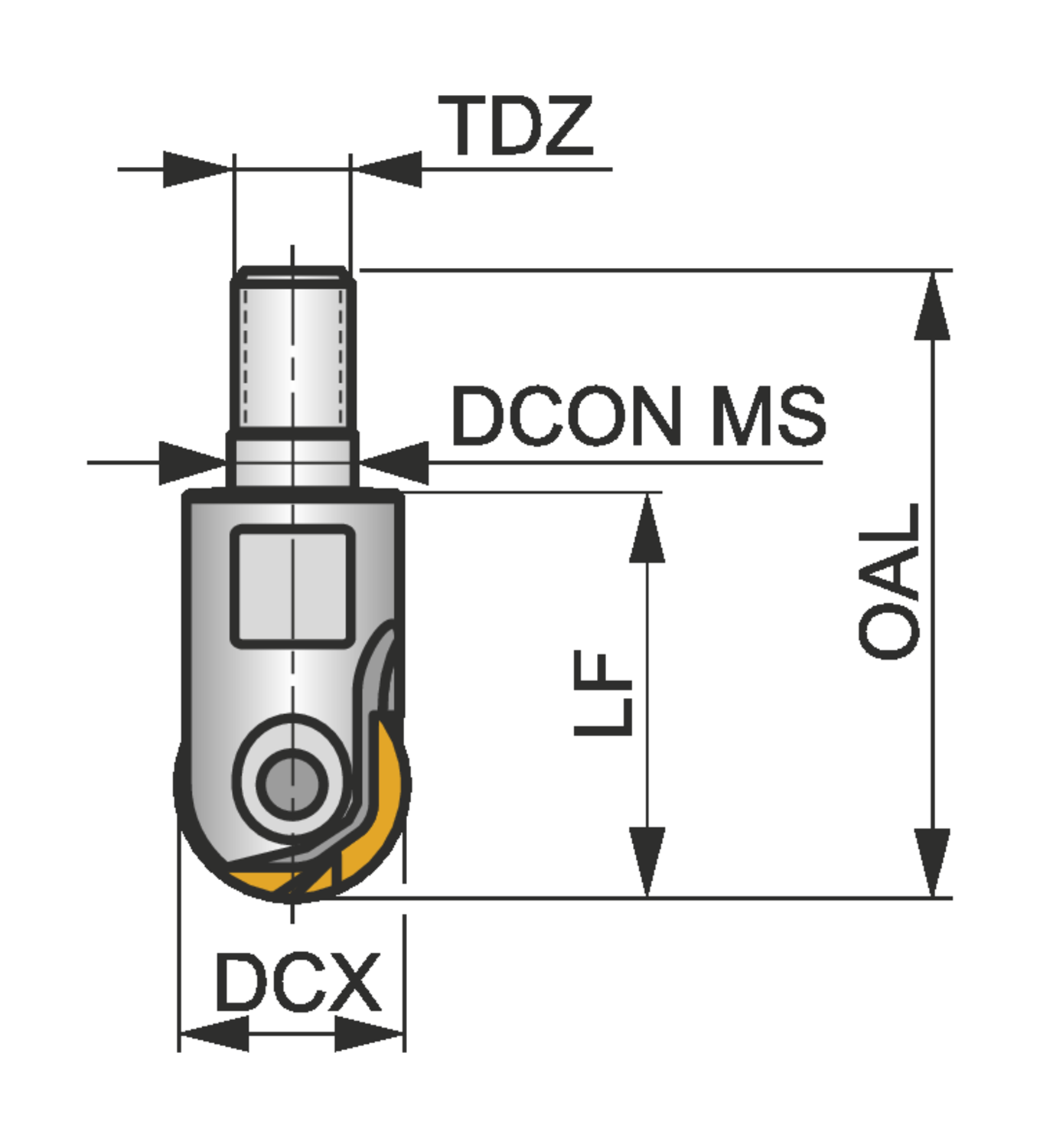

Connection diameter - inch (DCON MS)
0.335
Connection diameter - millimeter (DCON MS)
8.5
Cutting diameter maximum - inch (DCX)
0.63
Cutting diameter maximum - millimeter (DCX)
16
Functional length - millimeter (LF)
35
Insert group used in the tool
RC 16, RC 16-F
Insert index count (NOI)
1
Overall length - inch (OAL)
2.087
Overall length - millimeter (OAL)
53
Peripheral effective cutting edge count (ZEFP)
2
Possible use
Finishing
Primary use
Roughing
Shank
Threaded coupling
Thread diameter size (TDZ)
M8
Copy end mill which utilises 1 off RC 16 or RC 16-F single-sided insert, cutting diameter 16mm with M8 threaded shank for standard modular tool-holders, 35mm protrusion length for copy milling with a maximum depth of cut of 0.6-3.2mm
