Pramet 250A06R-ISCMORD12-CF 7979739 Shell Milling Cutter - Copy And Profile
MODEL 7979739
$391.75 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

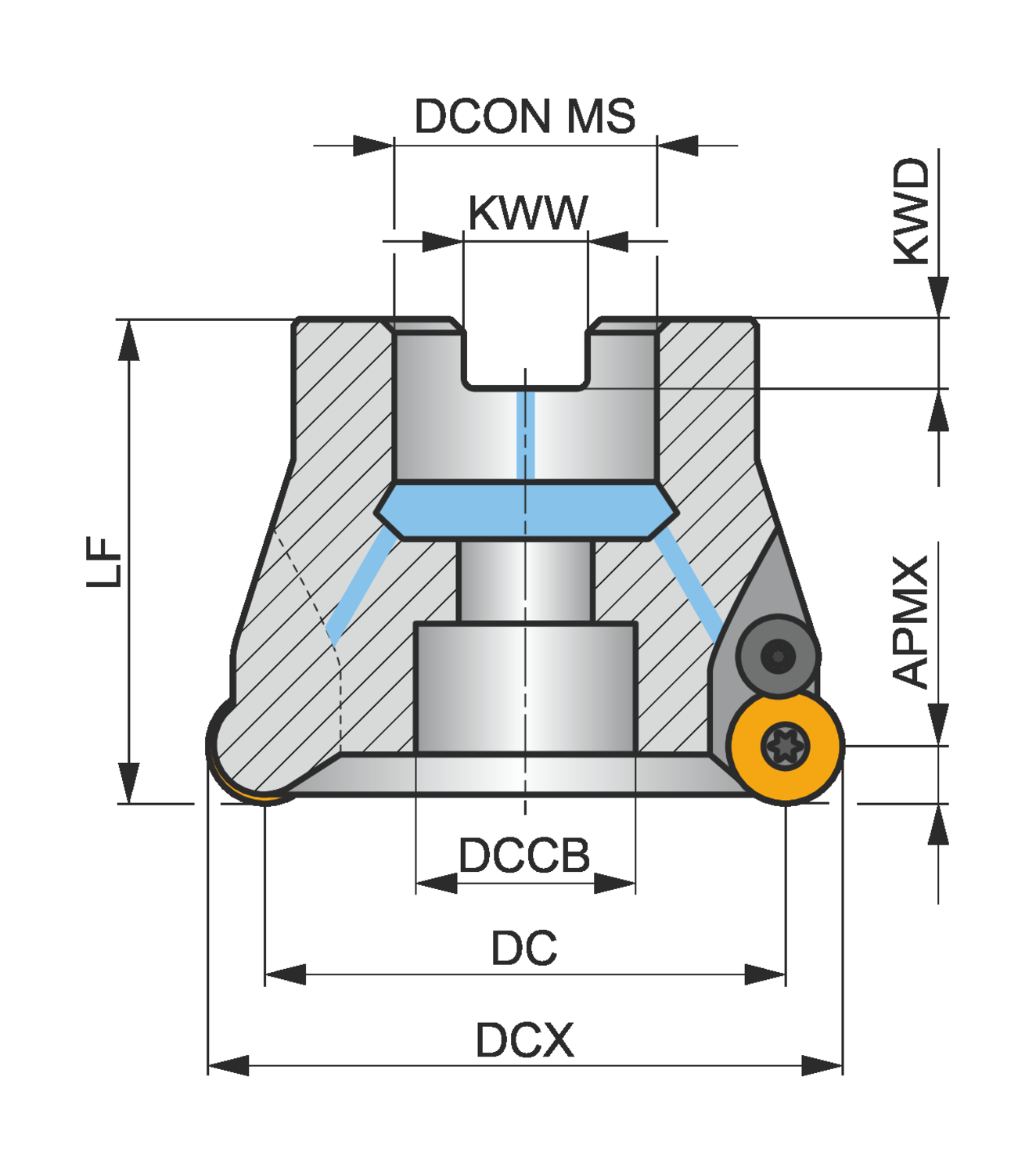

Axial rake angle (GAMP)
7
Clamping Type Code (MTP)
System SC
Connection diameter - inch (DCON MS)
1
Connection diameter - millimeter (DCON MS)
25.4
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.827
Counterbore diameter connection bore - millimeter (DCCB)
21
Cutting diameter - inch (DC)
2.028
Cutting diameter maximum - inch (DCX)
2.5
Cutting diameter maximum - millimeter (DCX)
63.5
Cutting pitch differential (CPDF)
0
Depth of cut maximum - inch (APMX)
0.118
Functional length - inch (LF)
1.968
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.224
Keyway width - inch (KWW)
0.382
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
2
Rotational speed maximum (RPMX)
13200
Shank
Shell mill DIN 8030 A
Copy face mill with double positive geometry which utilises 6 of RD.. 12T3MOT or RDHT 12T3MO-FA single-sided inserts, cutting diameter to maximum 2.500" with 1.000" connection bore according to DIN 8030-A, 1.968" functional and, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 0.118"
