Pramet 25E3R034A20-SRC10-C 7444098 End Milling Cutter - Copy And Profile
MODEL 7444098
$262.20 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

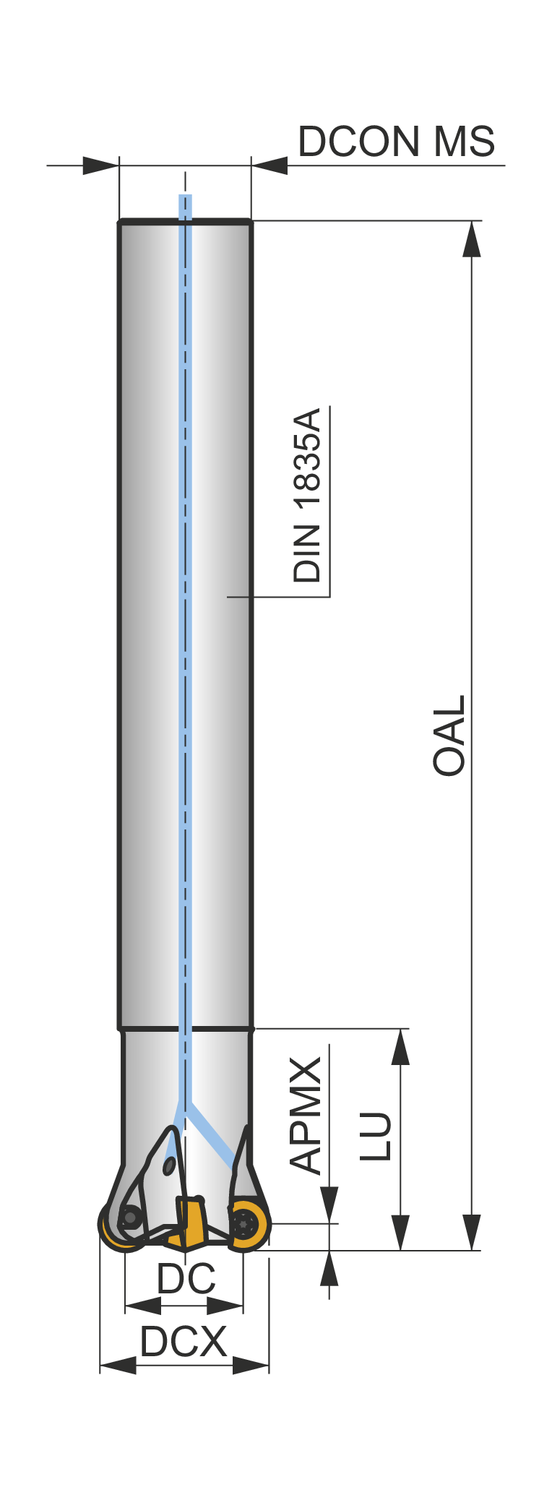

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.591
Cutting diameter - millimeter (DC)
15
Cutting diameter maximum - inch (DCX)
0.984
Cutting diameter maximum - millimeter (DCX)
25
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
6.693
Overall length - millimeter (OAL)
170
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-3
Rotational speed maximum (RPMX)
20900
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
34
Copy face mill with double negative geometry which utilises 3 off RCMT 10T3MO.. single-sided inserts, cutting diameter 25mm with 20mm parallel shank according to DIN 1835A, 34mm functional and 170mm overall length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 5.0mm
