Pramet 32A3R043M16-SAD16E-C modular head for square shoulder milling — 1.26 in (32 mm) cutting diameter, 90° approach angle, M16 threaded shank, 3 AD..16 inserts, through coolant. Article 6760167.
MODEL 6760167
$376.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

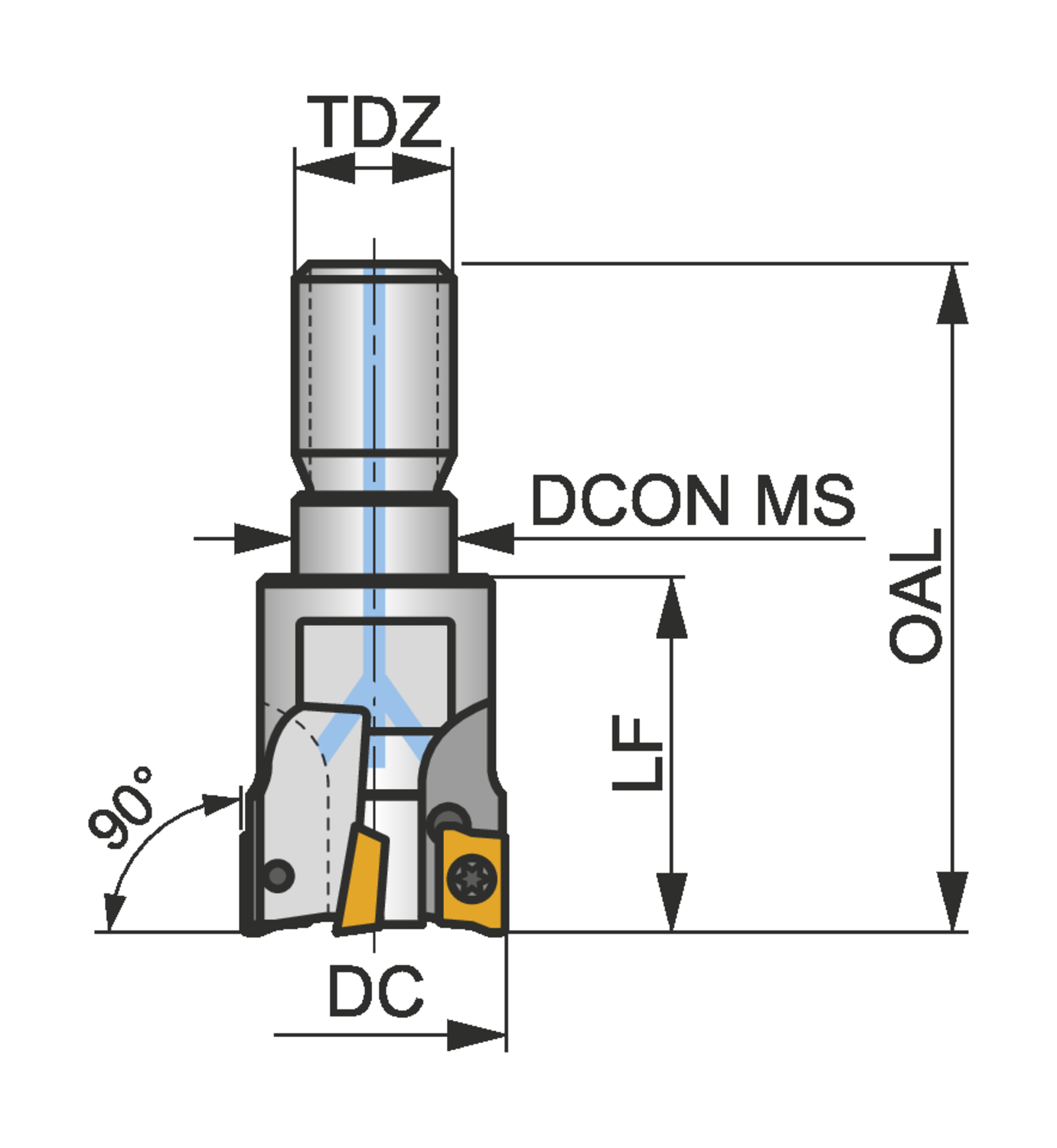

Axial rake angle (GAMP)
7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.669
Connection diameter - millimeter (DCON MS)
17
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.26
Cutting diameter - millimeter (DC)
32
Functional length - millimeter (LF)
43
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
2.598
Overall length - millimeter (OAL)
66
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-12
Shank
Threaded coupling
Thread diameter size (TDZ)
M16
Shoulder mill with positve/negative geometry which utilises 3 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 32mm with 90° approach angle and M16 threaded shank for standard modular tool-holders, 43mm protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm
