Pramet 50A05R-SMORC10-C 7444331 Shell Milling Cutter - Copy And Profile
MODEL 7444331
$329.03 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

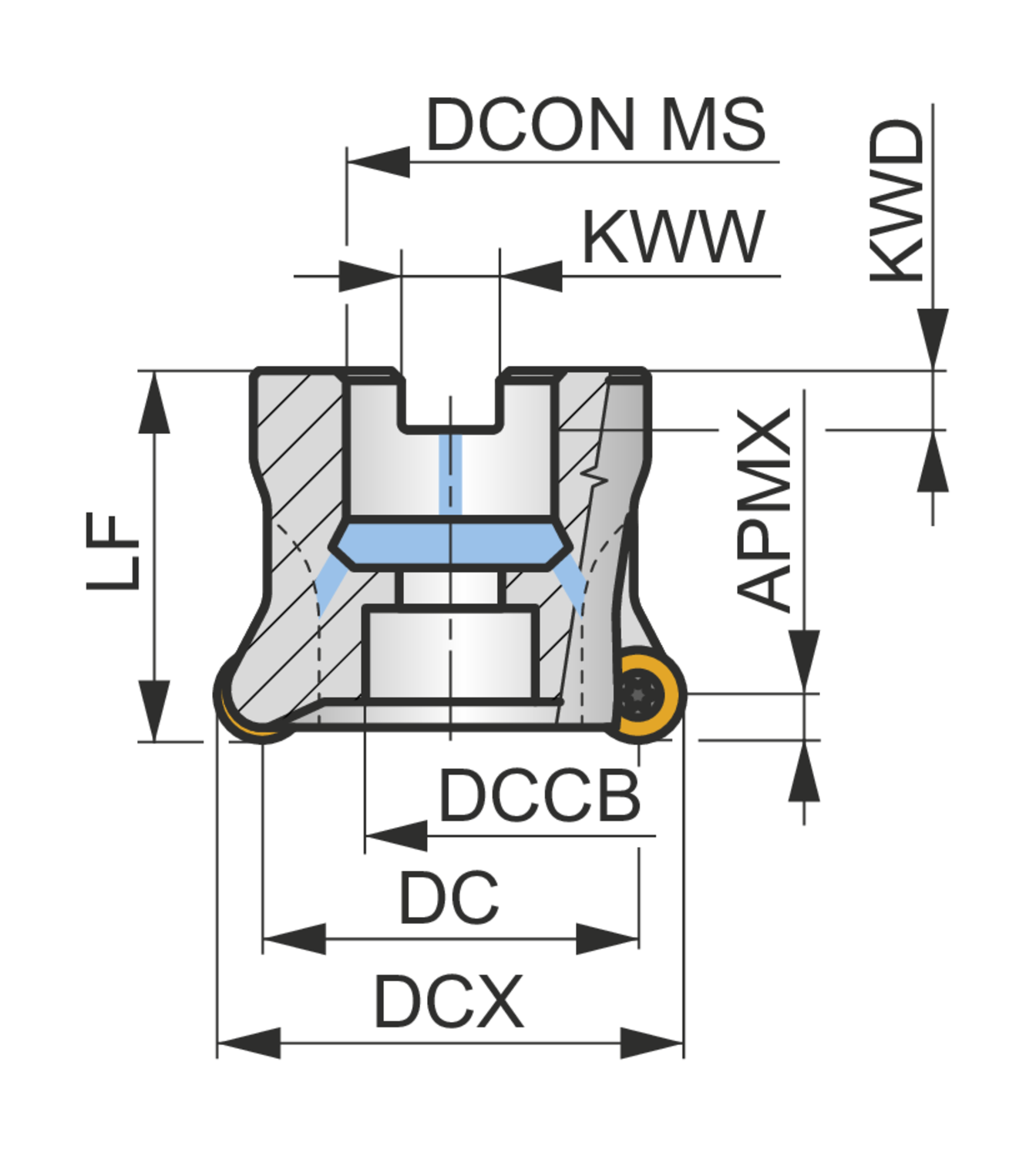

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.866
Connection diameter - millimeter (DCON MS)
22
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.709
Counterbore diameter connection bore - millimeter (DCCB)
18
Cutting diameter - inch (DC)
1.575
Cutting diameter - millimeter (DC)
40
Cutting diameter maximum - inch (DCX)
1.969
Cutting diameter maximum - millimeter (DCX)
50
Functional length - millimeter (LF)
40
Hand (Cutting direction)
Right
Insert index count (NOI)
5
Keyway depth - millimeter (KWD)
6.3
Keyway width - millimeter (KWW)
10.4
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
-2
Rotational speed maximum (RPMX)
14800
Shank
Shell mill DIN 8030 A
Copy face mill with double negative geometry which utilises 5 off RCMT 10T3MO.. single-sided inserts, cutting diameter 50mm with 22mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 5.0mm
