$345.48 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

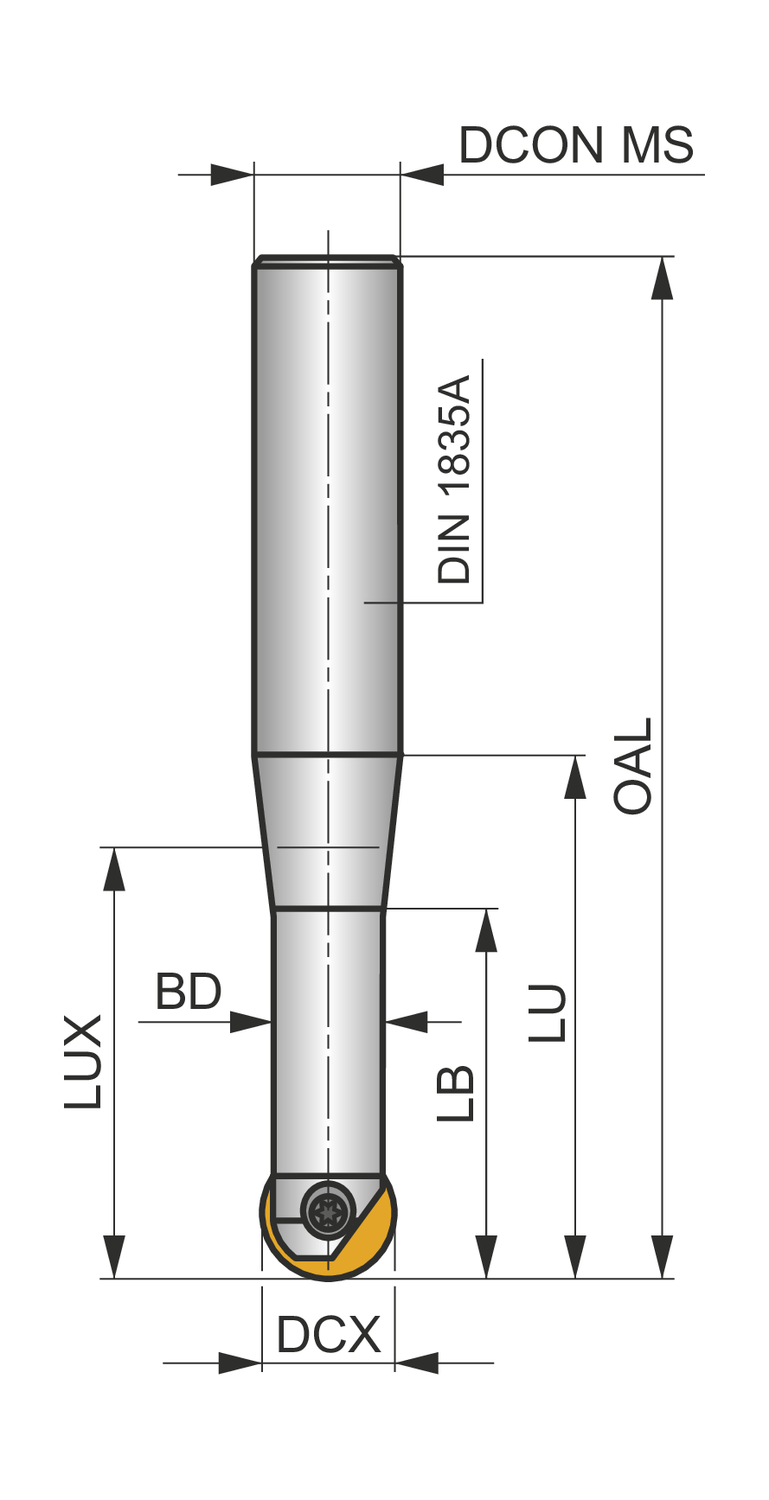

Body diameter - inch (BD)
0.669
Body diameter - millimeter (BD)
17
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Cutting diameter maximum - inch (DCX)
0.787
Cutting diameter maximum - millimeter (DCX)
20
Insert group used in the tool
PPH 20, PPHE 20, PPHT 20.., PPHF 20..
Insert index count (NOI)
1
Overall length - inch (OAL)
5.551
Overall length - millimeter (OAL)
141
Possible use
Finishing
Primary use
Roughing
Rotational speed maximum (RPMX)
40000
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
75
Copy end mill which utilises 1 off PPH 20.., PPHE 20.., PPHT 20.. or PPHF 20.. single-sided insert, cutting diameter 20mm with 20mm parallel shank according to DIN 1835A, 141mm overall length for copy milling with a maximum depth of cut of 0.3-4.0mm
