Pramet 075A3R102M10-ISTN10-C 7276938 Modular Head for Square Shoulder Milling
MODEL 7276938
$294.07 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

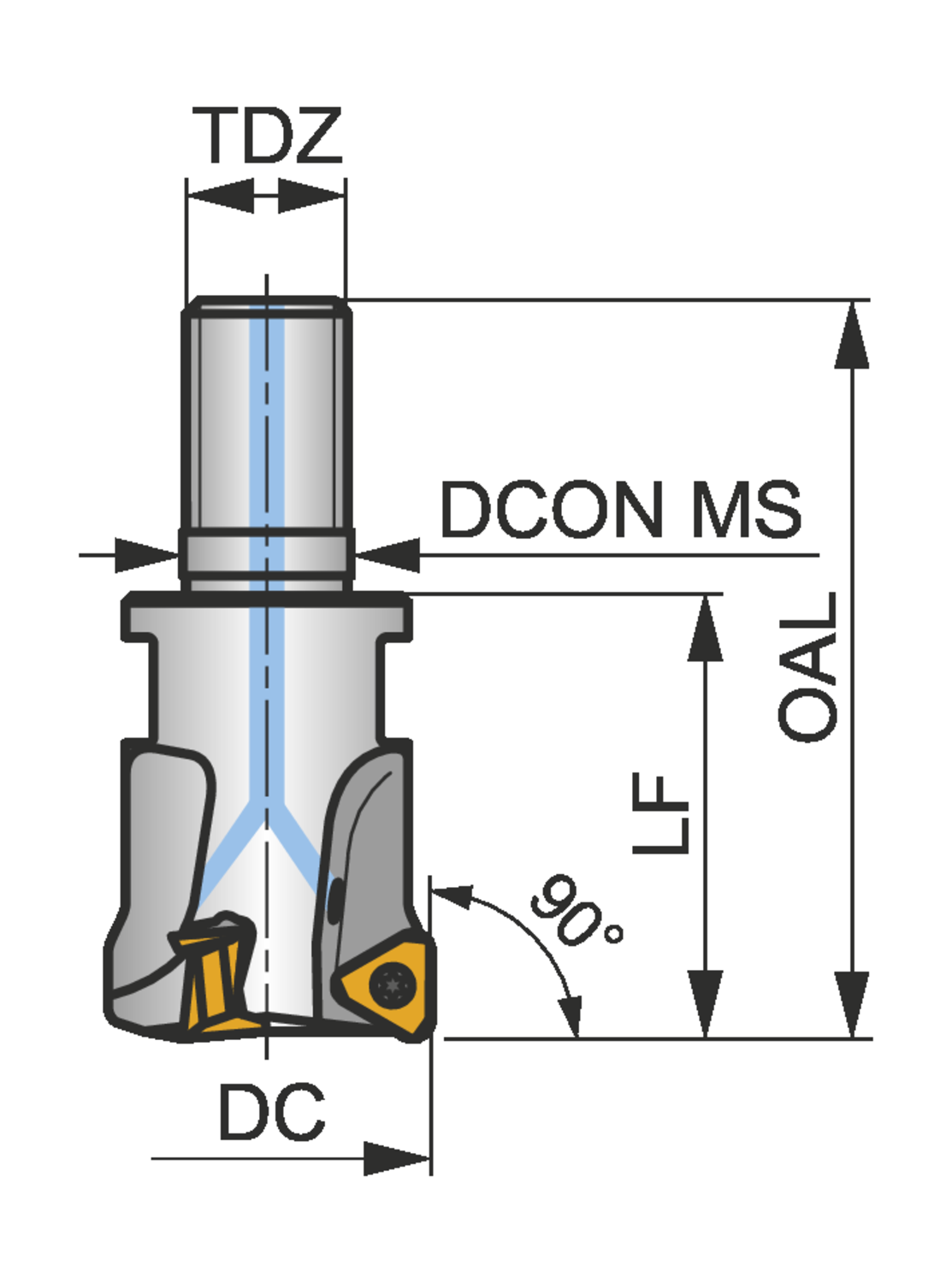

Axial rake angle (GAMP)
-16.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.413
Connection diameter - millimeter (DCON MS)
10.5
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.75
Cutting diameter - millimeter (DC)
19.1
Functional length - inch (LF)
1.024
Hand (Cutting direction)
Right
Overall length - inch (OAL)
1.772
Overall length - millimeter (OAL)
45
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-11
Shank
Threaded coupling
Thread diameter size (TDZ)
M10
Shoulder face mill with double negative geometry which utilises 3 off TNGX 1004.. double-sided inserts, cutting diameter .750'' with 90° approach angle and M10 threaded shank for standard modular tool-holders, 1.024'' protrusion length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''
