Pramet 075A3R114C075-ISTN10-C 7276932 End Milling Cutter - Square Shoulder
MODEL 7276932
$318.75 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

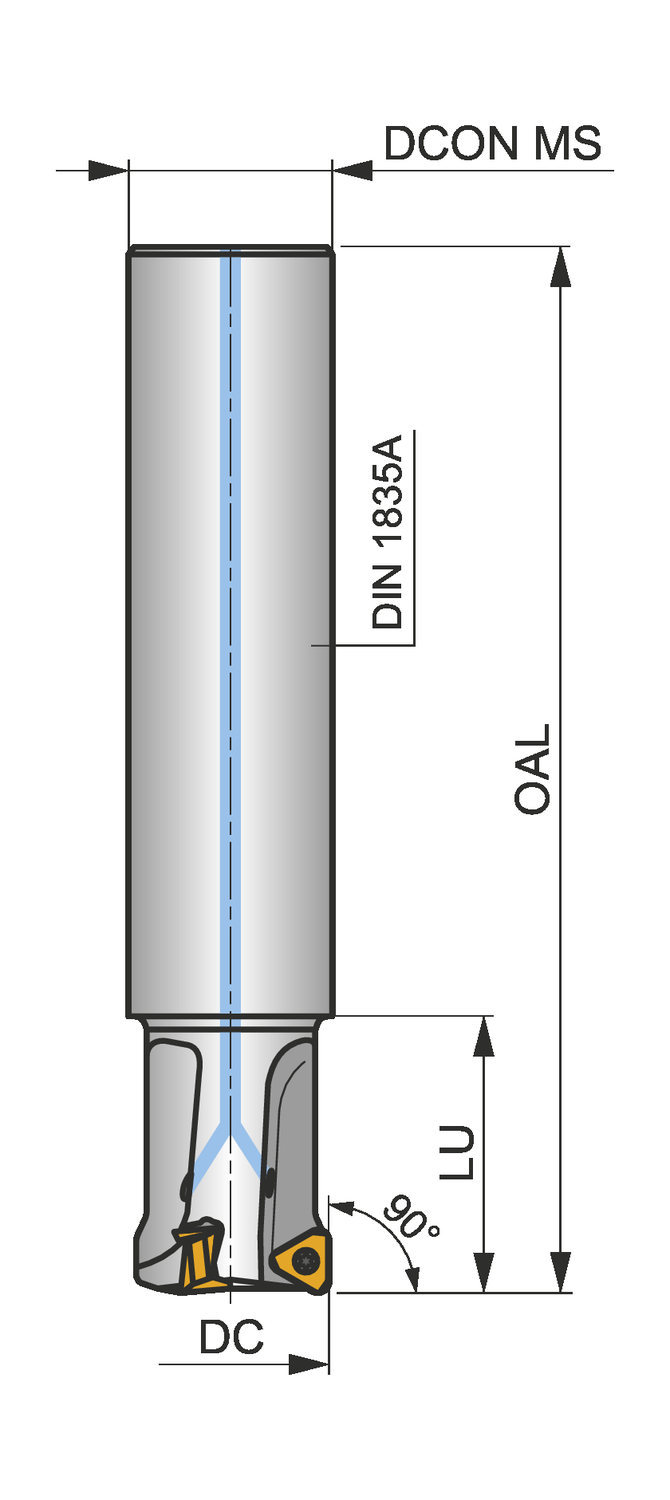

Axial rake angle (GAMP)
-16.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.1
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.75
Cutting diameter - millimeter (DC)
19.1
Hand (Cutting direction)
Right
Overall length - inch (OAL)
5.906
Overall length - millimeter (OAL)
150
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-11
Rotational speed maximum (RPMX)
27600
Shank
Cylindrical shank DIN 1835A
Usable Length - inch (LU)
1.142
Shoulder face mill with double negative geometry which utilises 3 off TNGX 1004.. double-sided inserts, cutting diameter .750'' with 90° approach angle and .750'' parallel shank according to DIN 1835A, 1.142'' functional and 5.906'' overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''
