$715.64 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
12
Clamping Type Code (MTP)
Screw clamping through hole

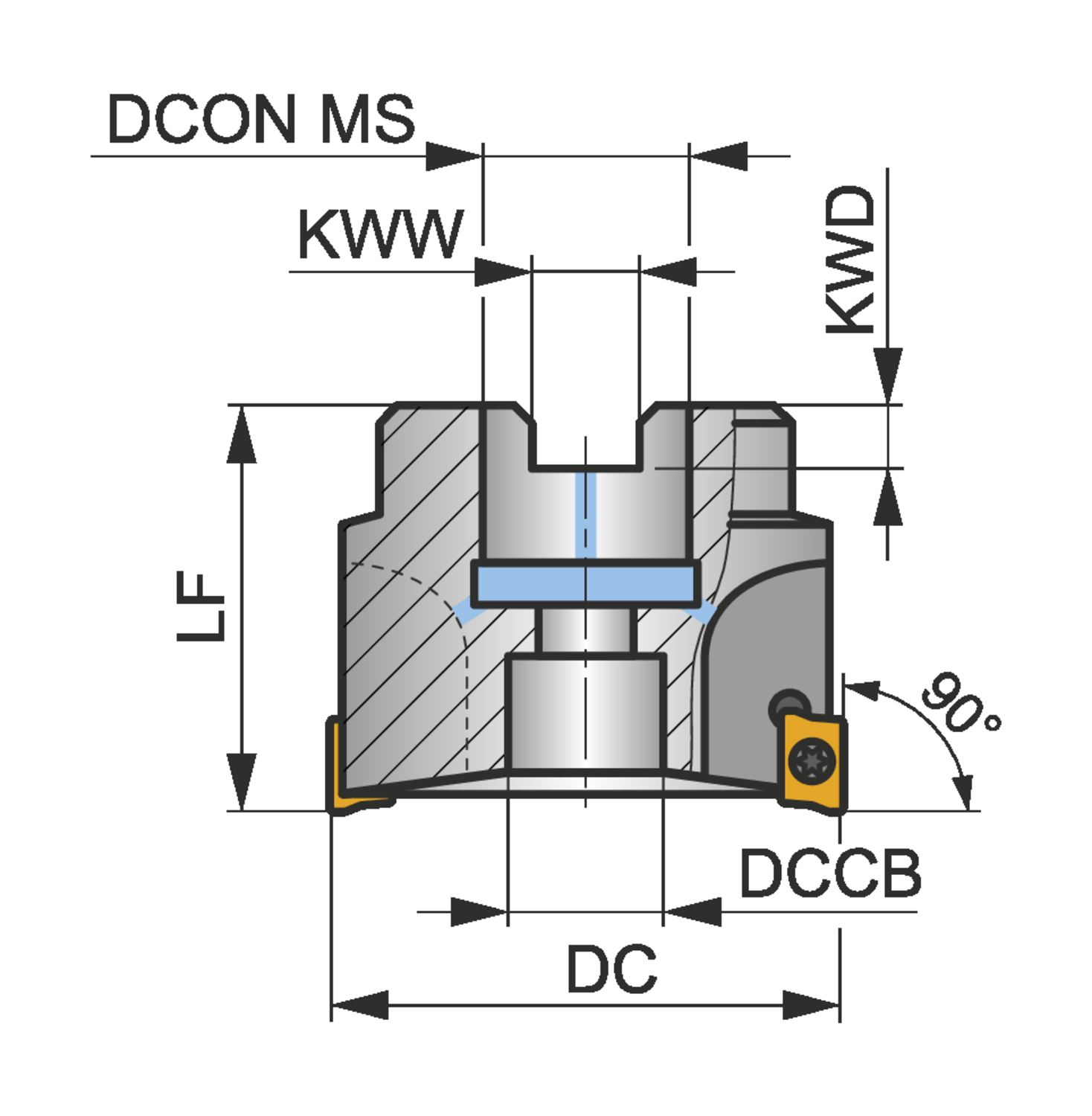

Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.772
Counterbore diameter connection bore - millimeter (DCCB)
45
Cutting diameter - inch (DC)
3.937
Cutting diameter - millimeter (DC)
100
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Right
Insert index count (NOI)
6
Keyway depth - millimeter (KWD)
8
Keyway width - millimeter (KWW)
14.4
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
-4
Rotational speed maximum (RPMX)
9300
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 6 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 100mm with 90° approach angle and 32mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential pitch for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm
