Pramet 100A08R-S90SD12-C 6760183 Shell Milling Cutter - Square Shoulder
MODEL 6760183
$788.65 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

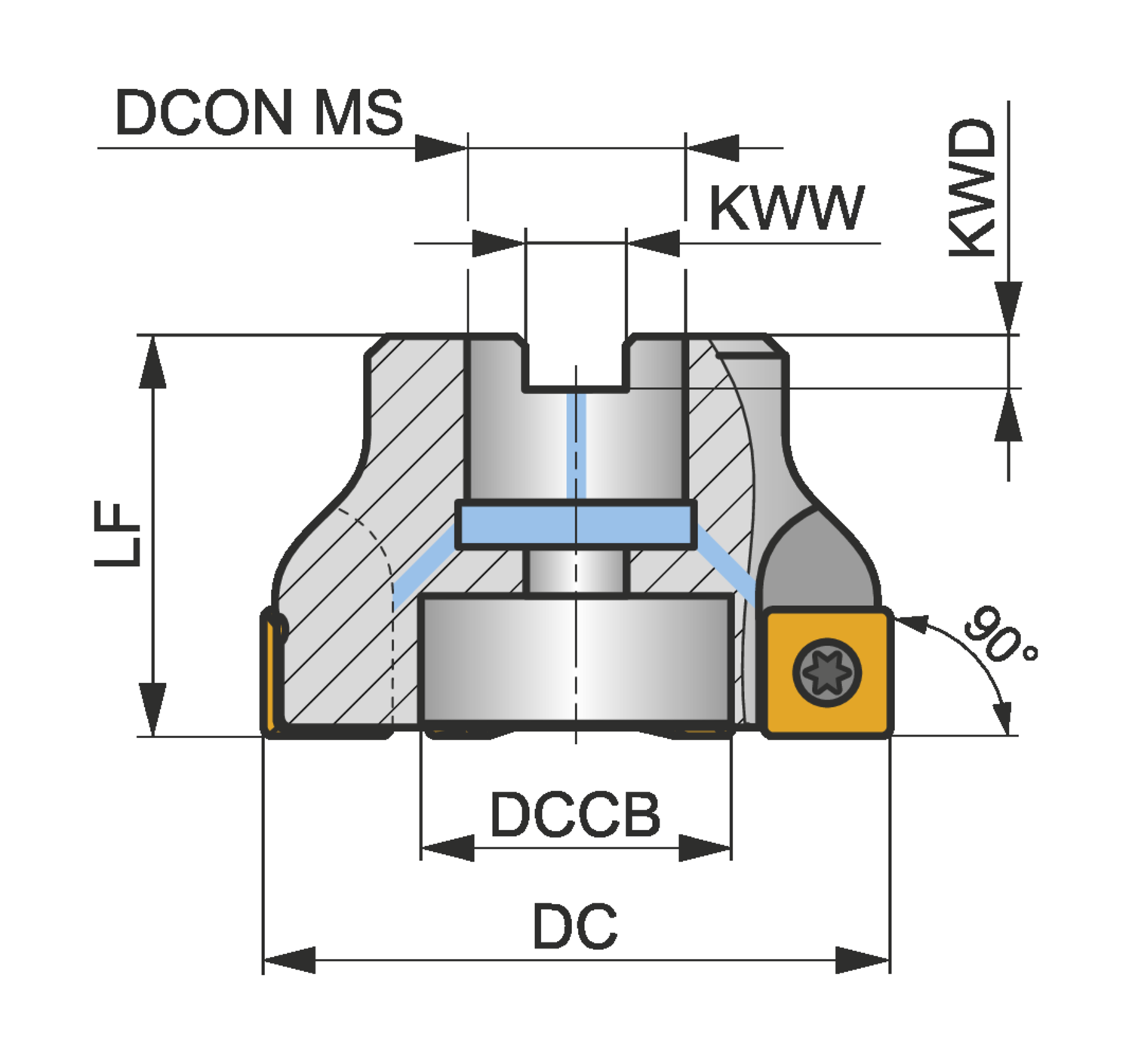

Axial rake angle (GAMP)
8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
32
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.772
Counterbore diameter connection bore - millimeter (DCCB)
45
Cutting diameter - inch (DC)
3.937
Cutting diameter - millimeter (DC)
100
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Right
Insert index count (NOI)
8
Keyway depth - millimeter (KWD)
8
Keyway width - millimeter (KWW)
14.4
Peripheral effective cutting edge count (ZEFP)
8
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
9200
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 8 off SDMT 1205.. single-sided inserts, cutting diameter 100mm with 90° approach angle and 32mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 10.0mm
