Image for Illustration purposes only. Actual product may vary
Pramet 100G10N-S90SN12N6 6758373 Disc Milling Cutter - Slotting
MODEL 6758373
$977.84 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-0.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection (shank) description
Arbor DIN 8030 - disc mill
Connection bore diameter - millimeter (DCB)
32
Cutting depth maximum - millimeter (CDX)
24
Cutting diameter - inch (DC)
3.937
Cutting diameter - millimeter (DC)
100
Cutting width - millimeter (CW)
6
Hand (Cutting direction)
Neutral
Hub diameter - millimeter (DHUB)
48
Insert group used in the tool
SNHQ 1203
Insert index count (NOI)
10
Number of peripheral edges in the tool (ZNP)
10
Peripheral effective cutting edge count (ZEFP)
10
Possible use
Medium machining
Radial rake angle (GAMF)
2.5
Rotational speed maximum (RPMX)
7500
Shank
Shell mill DIN 8030 – disc mill

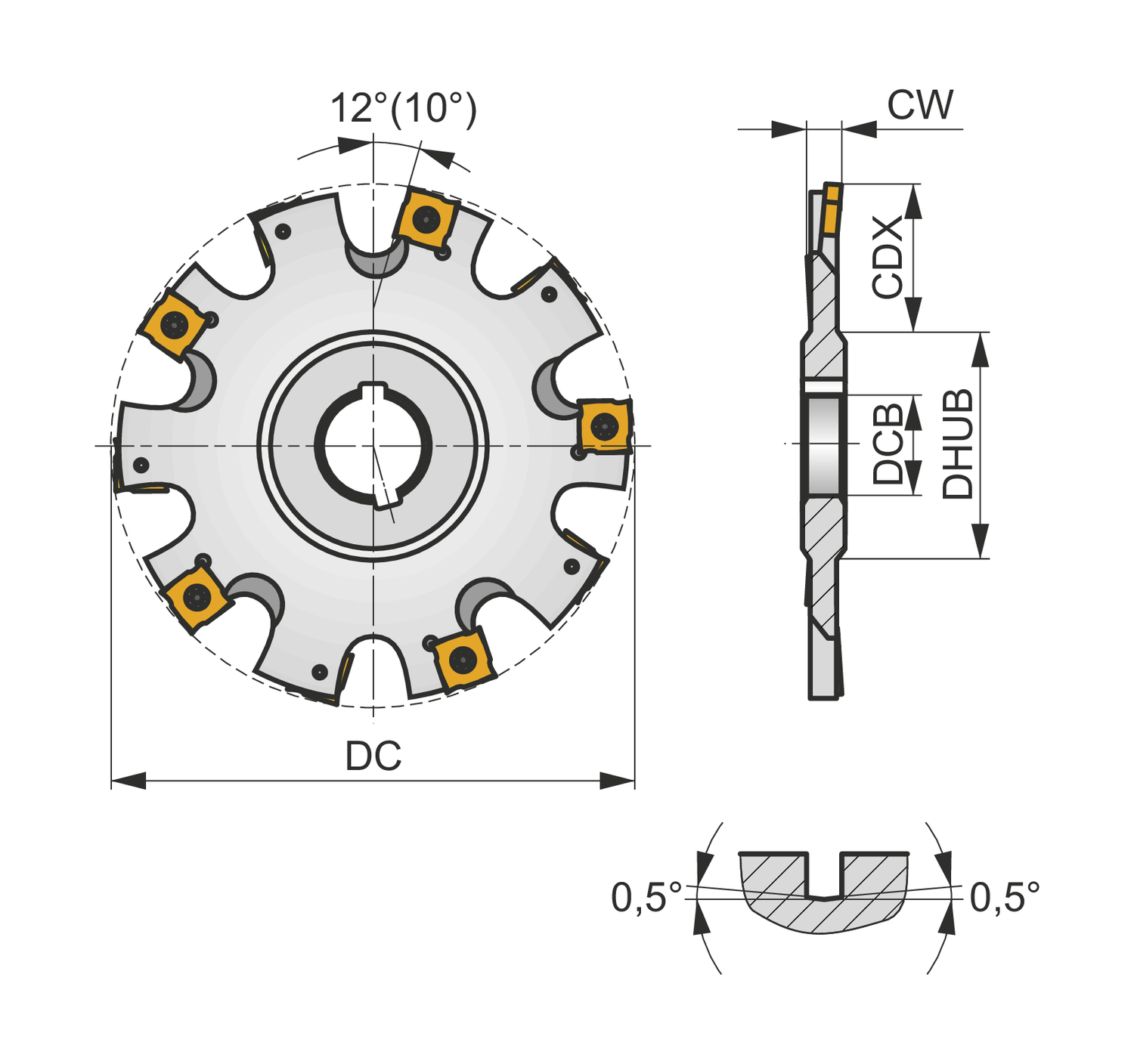

Disc mill with positve/negative geometry which utilises 10 off SNHQ 1203.. double-sided inserts, cutting diameter 100mm with 90° approach angle and 32mm connection bore according to DIN 8030, for deep slot milling with a width of cut of 6mm
