Pramet 125A06R-S90LN16-C 6760314 Shell Milling Cutter - Square Shoulder
MODEL 6760314
$866.79 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

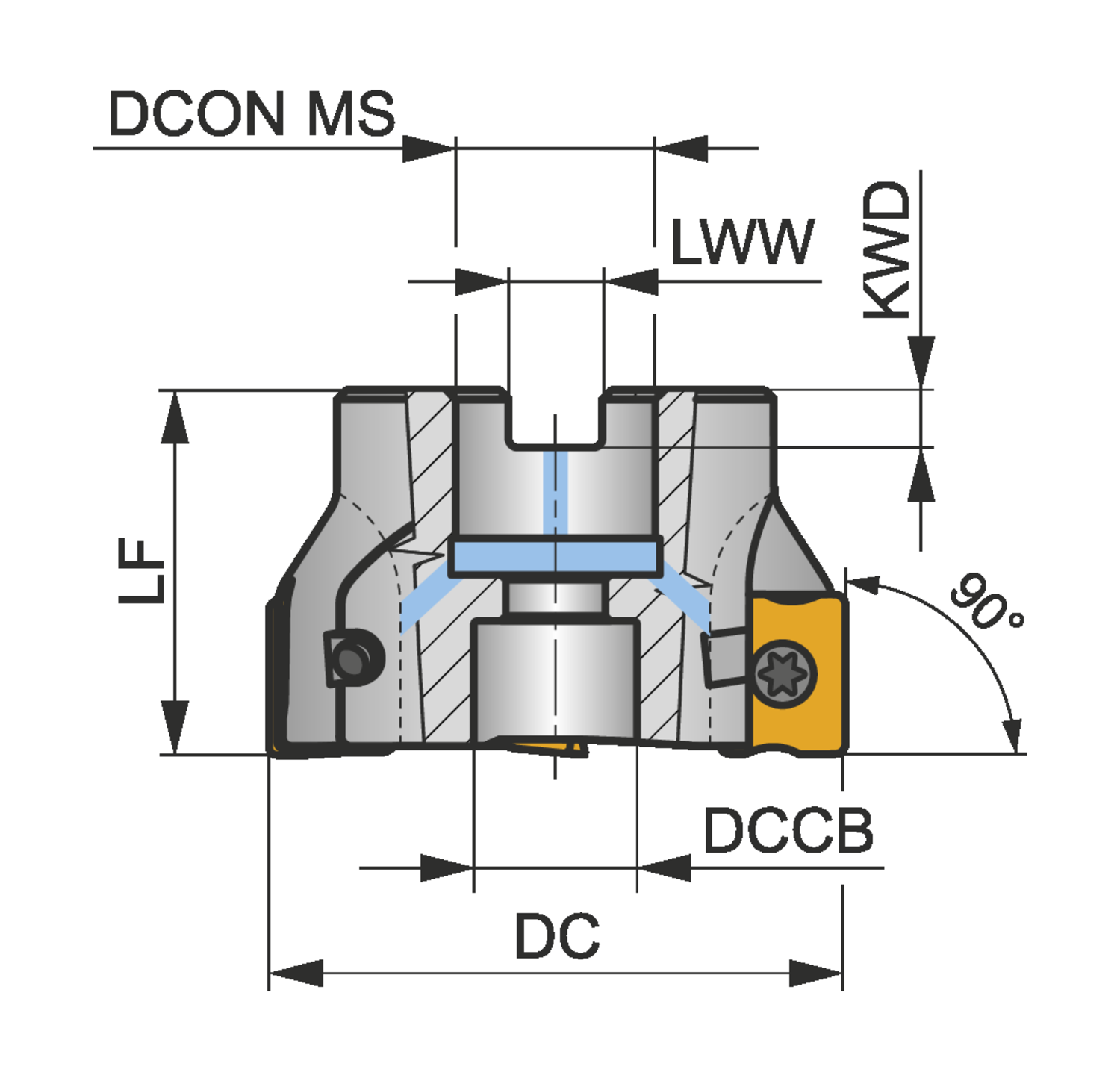

Axial rake angle (GAMP)
-6
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
2.205
Counterbore diameter connection bore - millimeter (DCCB)
56
Cutting diameter - inch (DC)
4.921
Cutting diameter - millimeter (DC)
125
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
6
Keyway depth - millimeter (KWD)
9
Keyway width - millimeter (KWW)
16.4
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
-10.5
Rotational speed maximum (RPMX)
5400
Shank
Shell mill DIN 8030 A
Shoulder mill with double negative geometry which utilises 6 off LNMU 1607.. or LNGU 1607.. double-sided inserts, cutting diameter 125mm with 90° approach angle and 40mm connection bore according to DIN 8030-A, 63mm protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 13.0mm
