Pramet 125A07R-S90TN16-C 8020910 Shell Milling Cutter - Square Shoulder
MODEL 8020910
$822.58 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

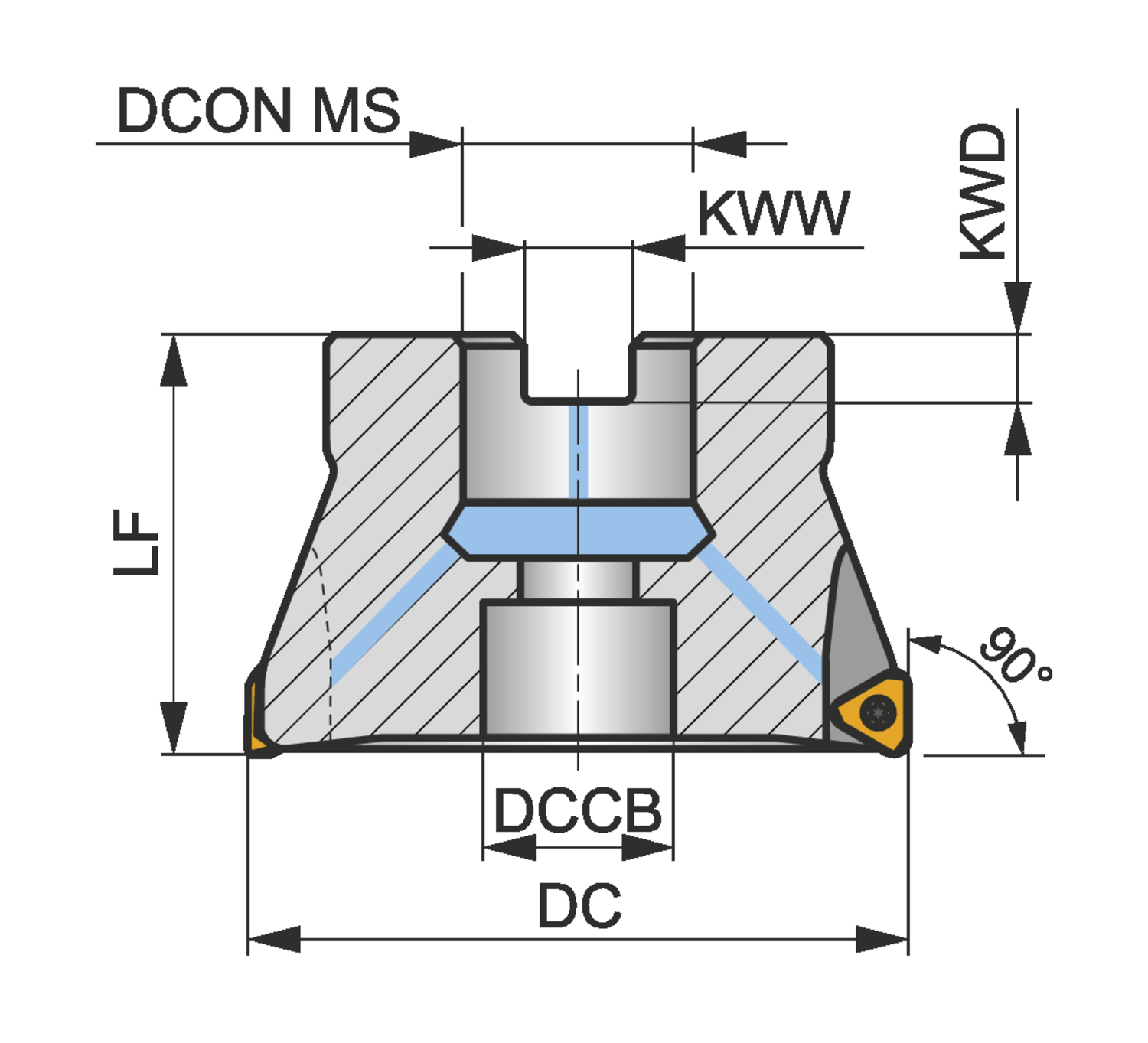

Axial rake angle (GAMP)
-9.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
2.209
Counterbore diameter connection bore - millimeter (DCCB)
56.1
Cutting diameter - inch (DC)
4.921
Cutting diameter - millimeter (DC)
125
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
7
Keyway depth - millimeter (KWD)
9
Keyway width - millimeter (KWW)
16.4
Overall length - inch (OAL)
2.48
Overall length - millimeter (OAL)
63
Peripheral effective cutting edge count (ZEFP)
7
Radial rake angle (GAMF)
-16
Rotational speed maximum (RPMX)
9000
Shank
Shell mill DIN 8030 A
Shoulder face mill with double negative geometry which utilises 7 of TNGX 1606.. double-sided inserts, cutting diameter 125mm with 90° approach angle and 40mm connection bore according to DIN 8030-A, 63mm protrusion length, through coolant and differential pitch for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes
