Pramet 125A08R-S45HN09C-CF 7049097 Shell Milling Cutter - Face
MODEL 7049097
$901.75 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

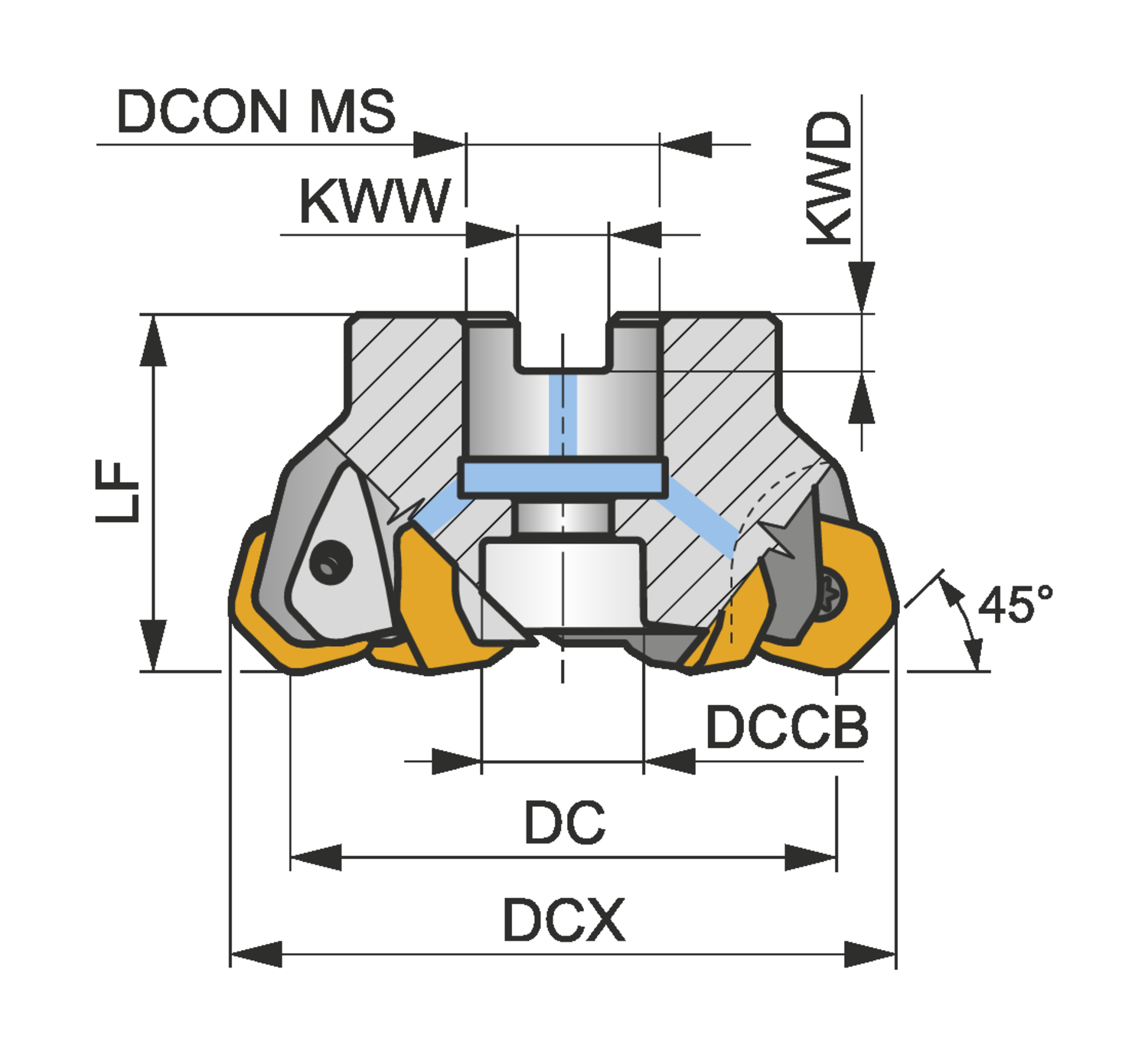

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
2.205
Counterbore diameter connection bore - millimeter (DCCB)
56
Cutting diameter - inch (DC)
4.921
Cutting diameter - millimeter (DC)
125
Cutting diameter maximum - inch (DCX)
5.382
Cutting diameter maximum - millimeter (DCX)
136.7
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
8
Keyway depth - millimeter (KWD)
9
Keyway width - millimeter (KWW)
16.4
Peripheral effective cutting edge count (ZEFP)
8
Radial rake angle (GAMF)
-7
Rotational speed maximum (RPMX)
4900
Shank
Shell mill DIN 8030 A
Tool cutting edge angle (KAPR)
45
Face mill with double negative geometry which utilises 8 off HNGX 0906AN.. or XNGX 0906AN.. double-sided inserts, cutting diameter 125 to maximum 136.7mm with 45° approach angle and 40mm connection bore according to DIN 8030-A, 63mm protrusion length, through coolant and differential pitch for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of 5.0mm
