Pramet 150A3R160W125-ISAD16E-C 6798480 End Milling Cutter - Square Shoulder
MODEL 6798480
$381.47 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
10.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.25
Connection diameter - millimeter (DCON MS)
31.8
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.5
Cutting diameter - millimeter (DC)
38.1
Hand (Cutting direction)
Right
Overall length - inch (OAL)
4.35
Overall length - millimeter (OAL)
110
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-8.2
Rotational speed maximum (RPMX)
14800
Shank
Weldon shank DIN 1835B
Usable Length maximum - inch (LUX)
1.6

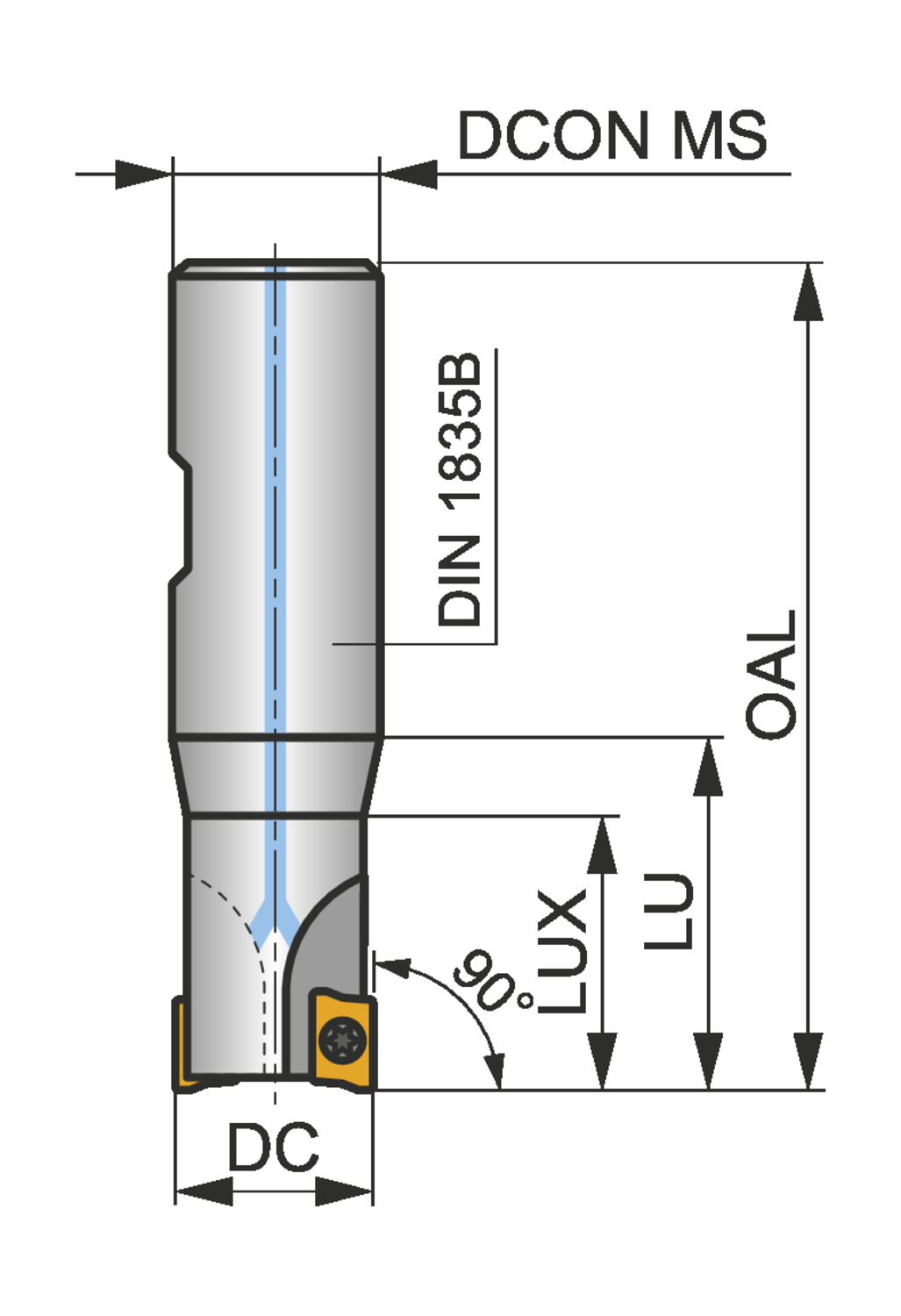

Shoulder mill with positve/negative geometry which utilises 3 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 1.500'' with 90° approach angle and 1.250'' Weldon shank according to DIN 1835B, 1.600'' functional and 4.350'' overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .512''
