Pramet 160H06N-S90CN10N18 6760152 Disc Milling Cutter - Slotting
MODEL 6760152
$1,924.83 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

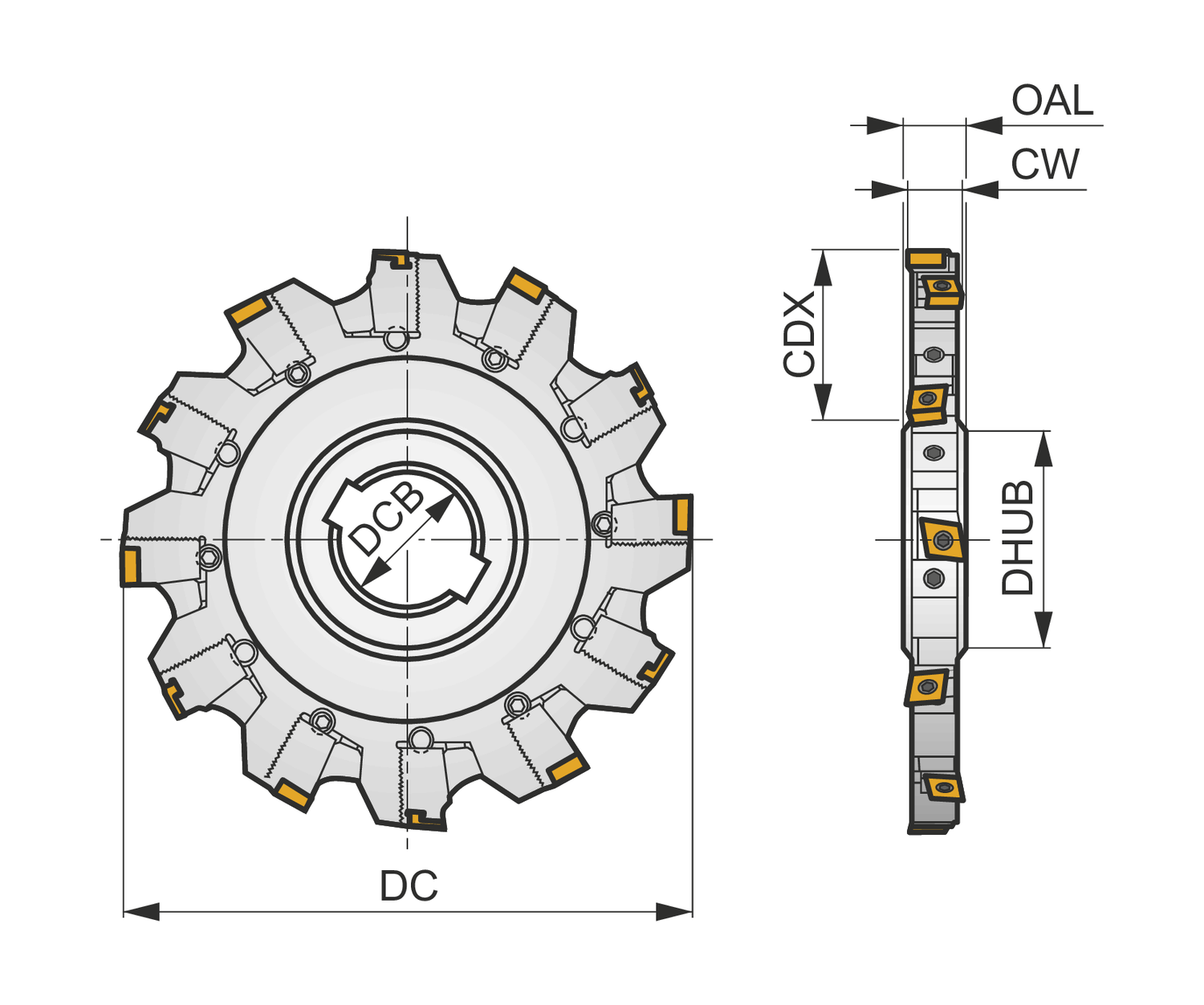

Axial rake angle (GAMP)
4
Clamping Type Code (MTP)
Screw clamping through hole
Connection (shank) description
Arbor DIN 8030 - disc mill
Connection bore diameter - millimeter (DCB)
40
Cutting depth maximum - millimeter (CDX)
50
Cutting diameter - inch (DC)
6.299
Cutting diameter - millimeter (DC)
160
Face effective cutting edge count (ZEFF)
6
Hand (Cutting direction)
Neutral
Hub diameter - millimeter (DHUB)
56
Insert group used in the tool
CNHQ 1005
Insert index count (NOI)
12
Number of peripheral edges in the tool (ZNP)
12
Overall length - inch (OAL)
0.709
Overall length - millimeter (OAL)
18
Peripheral effective cutting edge count (ZEFP)
12
Possible use
Finishing
Radial rake angle (GAMF)
-8
Rotational speed maximum (RPMX)
6900
Shank
Shell mill DIN 8030 – disc mill
Disc mill with positve/negative geometry which utilises 12 off CNHQ 1005.. double-sided inserts, cutting diameter 160mm with 90° approach angle and 40mm connection bore according to DIN 8030, for deep slot milling with a width of cut of 14,0 ÷ 18,5mm
