Pramet 16A2R030E02-SAD11E-C 6758928 End Milling Cutter - Square Shoulder
MODEL 6758928
$262.20 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

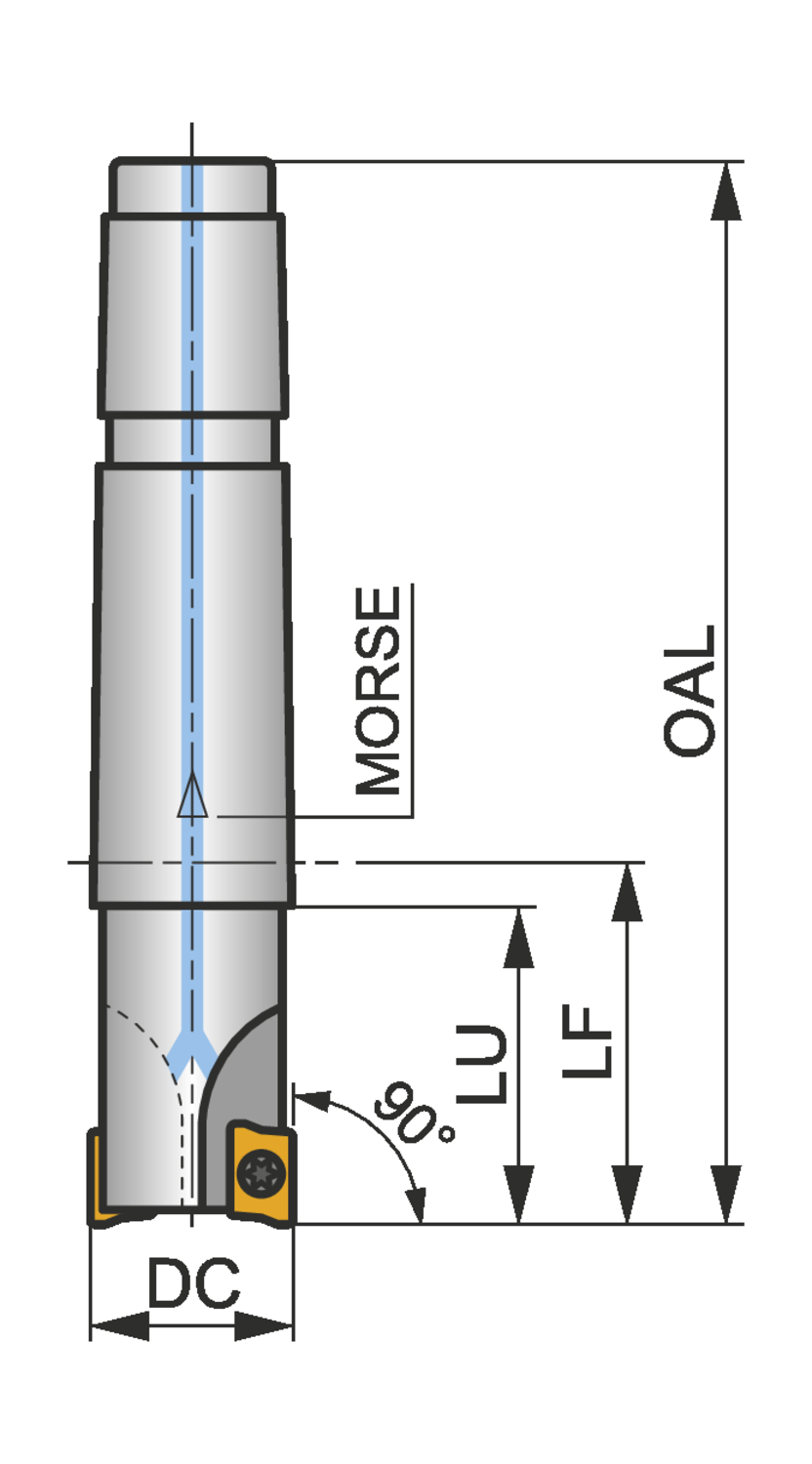

Axial rake angle (GAMP)
4
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
2
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.63
Cutting diameter - millimeter (DC)
16
Functional length - millimeter (LF)
30
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
3.701
Overall length - millimeter (OAL)
94
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-12.8
Rotational speed maximum (RPMX)
30100
Shank
Morse shank DIN 228-1
Usable Length - millimeter (LU)
25
Shoulder mill with positve/negative geometry which utilises 2 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 16mm with 90° approach angle and MT 2 morse taper shank according to DIN 228-1A, 25mm functional and 94mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm
| Brand | Pramet |
| Model | 6760304 |
