Pramet 175C10R-S90TN16-C 8020914 Shell Milling Cutter - Square Shoulder
MODEL 8020914
$1,283.22 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-9.5
Clamping Type Code (MTP)
Screw clamping through hole

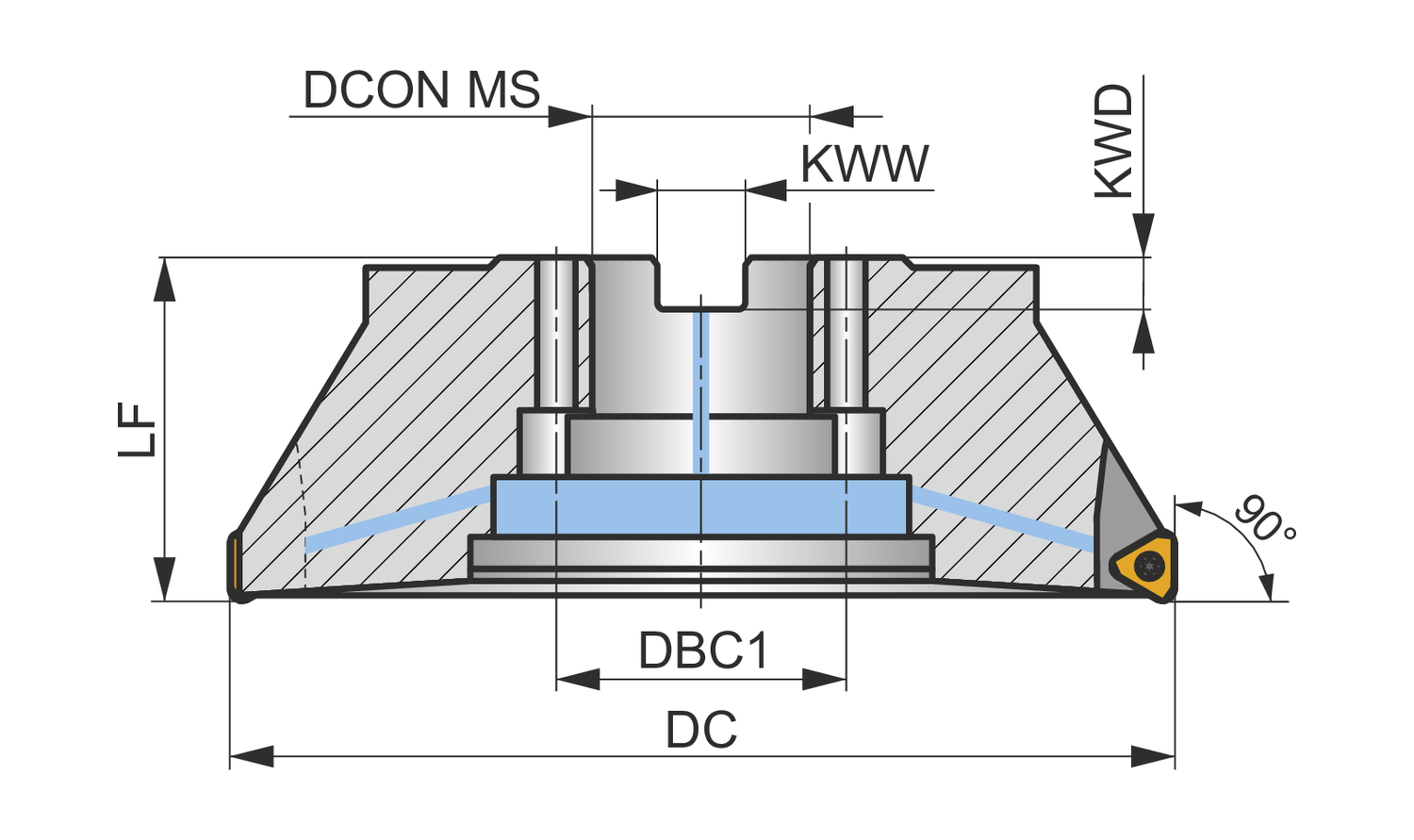

Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
6.89
Cutting diameter - millimeter (DC)
175
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
10
Keyway depth - millimeter (KWD)
9.2
Keyway width - millimeter (KWW)
16.4
Overall length - inch (OAL)
2.48
Overall length - millimeter (OAL)
63
Peripheral effective cutting edge count (ZEFP)
10
Radial rake angle (GAMF)
-16
Rotational speed maximum (RPMX)
7500
Shank
Shell mill DIN 8030 C
Shoulder face mill with double negative geometry which utilises 10 of TNGX 1606.. double-sided inserts, cutting diameter 175mm with 90° approach angle and 40mm connection bore according to DIN 8030-C, 63mm protrusion length, through coolant and differential pitch for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes
