Pramet 18A4R019A18-SAD07D-C 6798632 End Milling Cutter - Square Shoulder
MODEL 6798632
$276.59 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

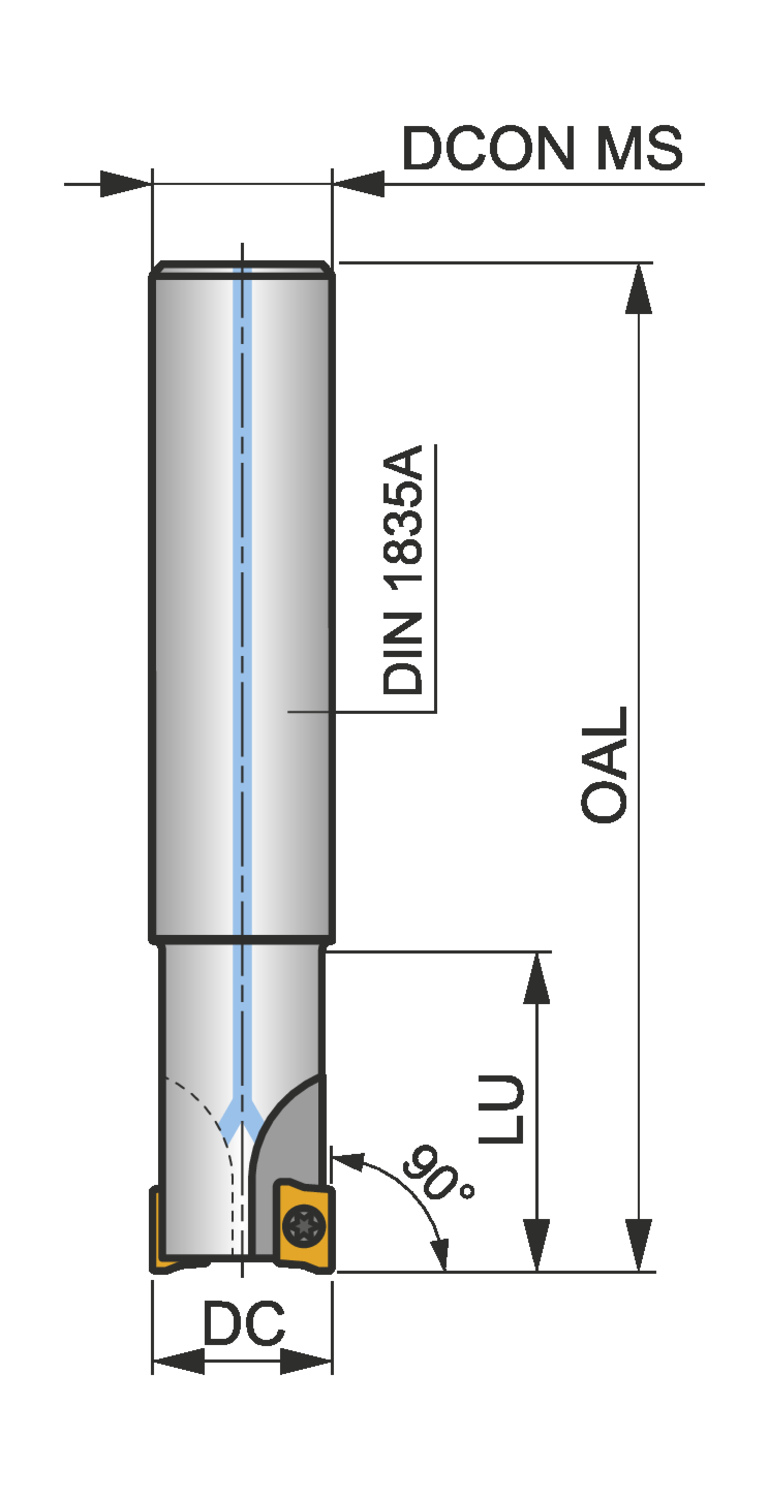

Axial rake angle (GAMP)
8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.709
Connection diameter - millimeter (DCON MS)
18
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.709
Cutting diameter - millimeter (DC)
18
Cutting pitch differential (CPDF)
1
Hand (Cutting direction)
Right
Insert index count (NOI)
4
Overall length - inch (OAL)
4.331
Overall length - millimeter (OAL)
110
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-7.5
Rotational speed maximum (RPMX)
45900
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
19
Shoulder mill with positve/negative geometry which utilises 4 off ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 18mm with 90° approach angle and 18mm parallel shank according to DIN 1835A, 19mm functional and 110mm overall length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 5.0mm
