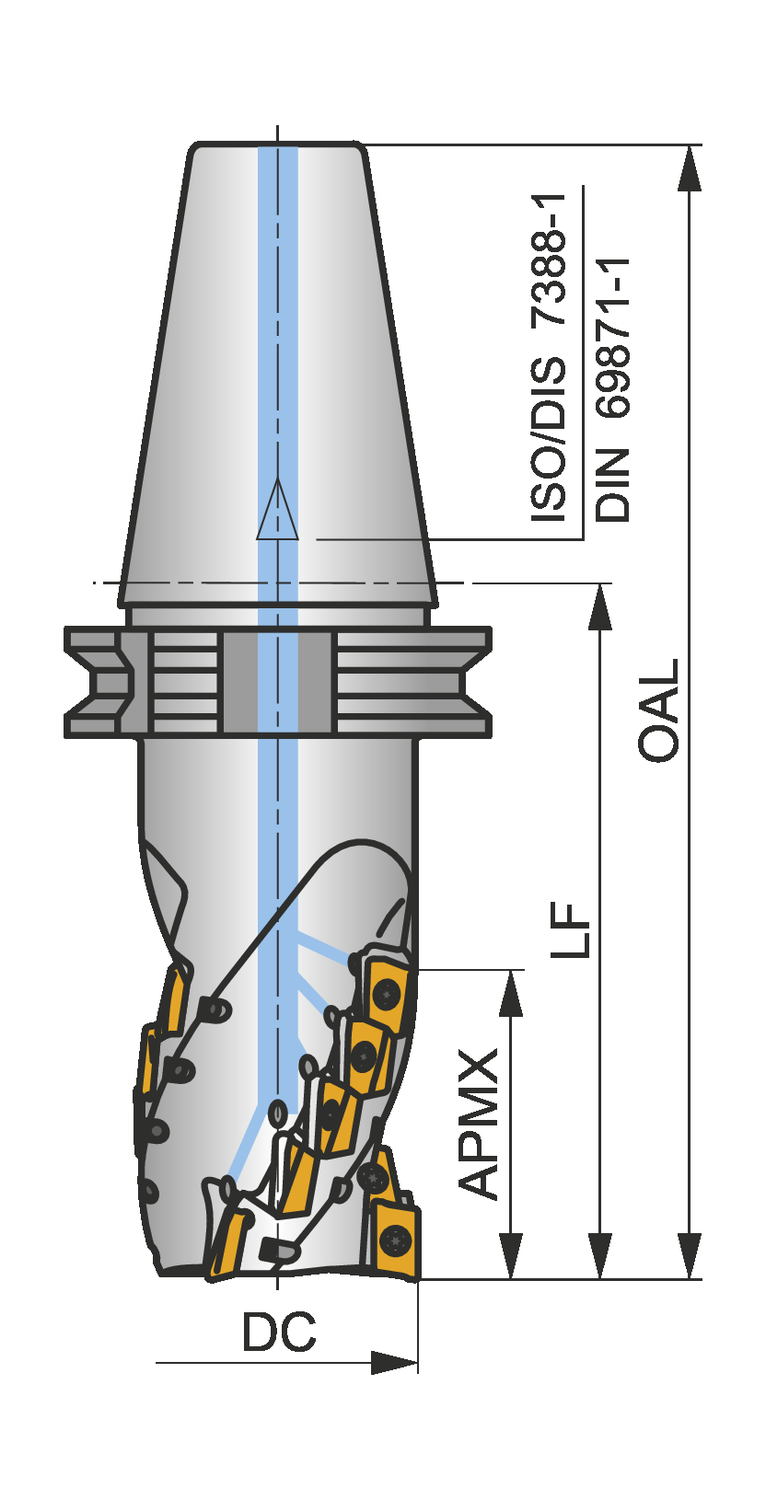

Pramet 200J3R551CA50-ISAD16E315 7276989 Helical End Milling Cutter - Square Shoulder
MODEL 7276989
$1,484.75 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
11
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
50
Cooling (CSP)
1
Cutting diameter - inch (DC)
2
Depth of cut maximum - inch (APMX)
3.22
Flute count (NOF)
3
Functional length - inch (LF)
5.51
Hand (Cutting direction)
Right
Overall length - inch (OAL)
9.52
Radial rake angle (GAMF)
-7
Shank
Shank ANSI B5.50
Shoulder mill which utilises 3 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 2.000'' with 90° approach angle and CAT 50 taper shank according to ANSI B5.50, 3.15'' overall length for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling
