Pramet 20A2R032B20-SSO09-C 6758358 End Milling Cutter - Square Shoulder
MODEL 6758358
$355.76 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
6
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.787
Cutting diameter - millimeter (DC)
20
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
3.228
Overall length - millimeter (OAL)
82
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-12
Rotational speed maximum (RPMX)
23800
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
32

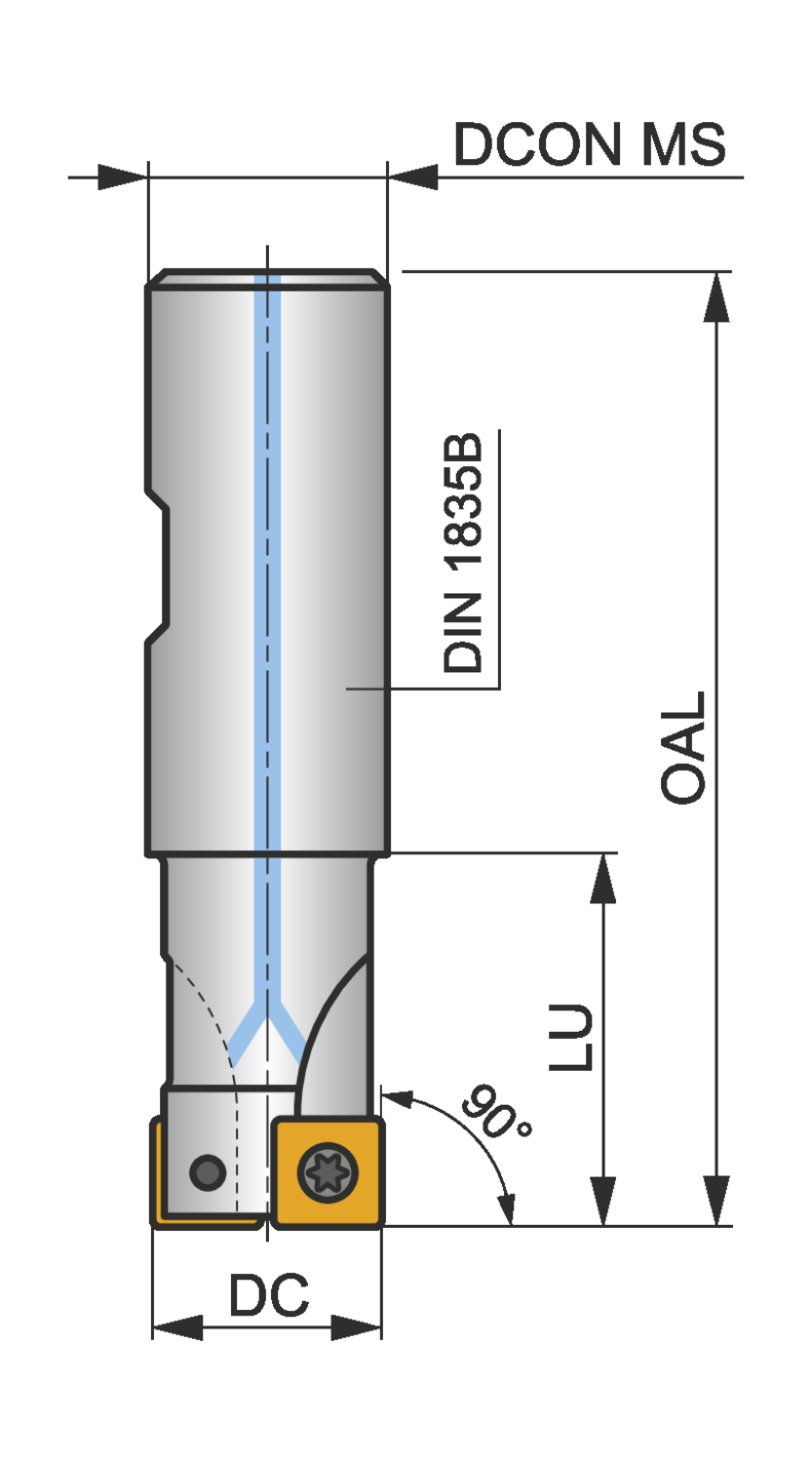

Shoulder mill with positve/negative geometry which utilises 2 off SOMT 09T3.. single-sided inserts, cutting diameter 20mm with 90° approach angle and 20mm Weldon shank according to DIN 1835B, 82mm overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 8.0mm
