Pramet 20A3R032B20-STN10-C 7178495 End Milling Cutter - Square Shoulder
MODEL 7178495
$326.97 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-11
Clamping Type Code (MTP)
Screw clamping through hole

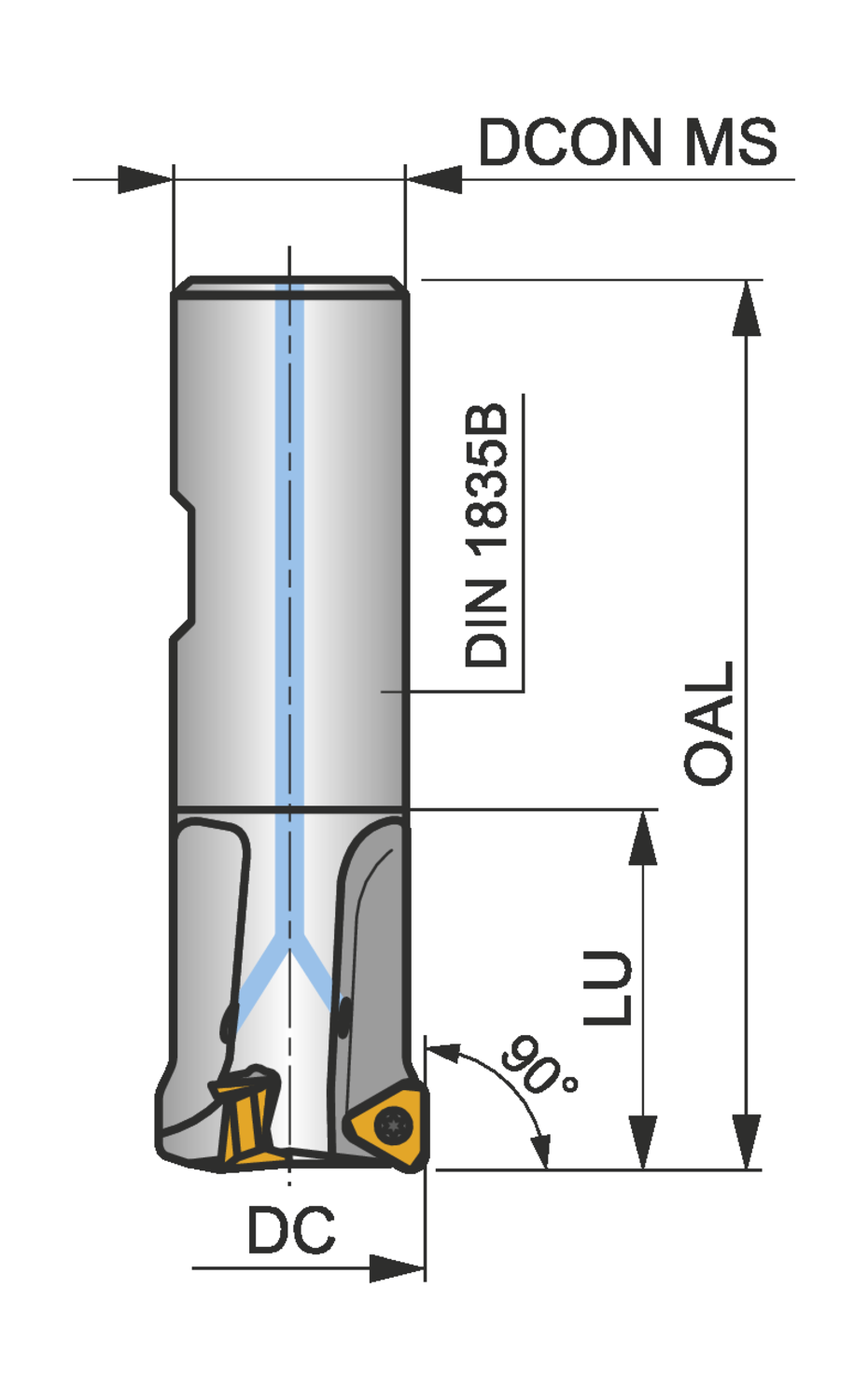

Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.787
Cutting diameter - millimeter (DC)
20
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
3.543
Overall length - millimeter (OAL)
90
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-16.5
Rotational speed maximum (RPMX)
27600
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
32
Shoulder face mill with double negative geometry which utilises 3 off TNGX 1004.. double-sided inserts, cutting diameter 20mm with 90° approach angle and 20mm Weldon shank according to DIN 1835B, 32mm functional and 90mm overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0mm
