Pramet 25A2R042B25-SAD16E-C 6760169 End Milling Cutter - Square Shoulder
MODEL 6760169
$304.35 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
5
Clamping Type Code (MTP)
Screw clamping through hole

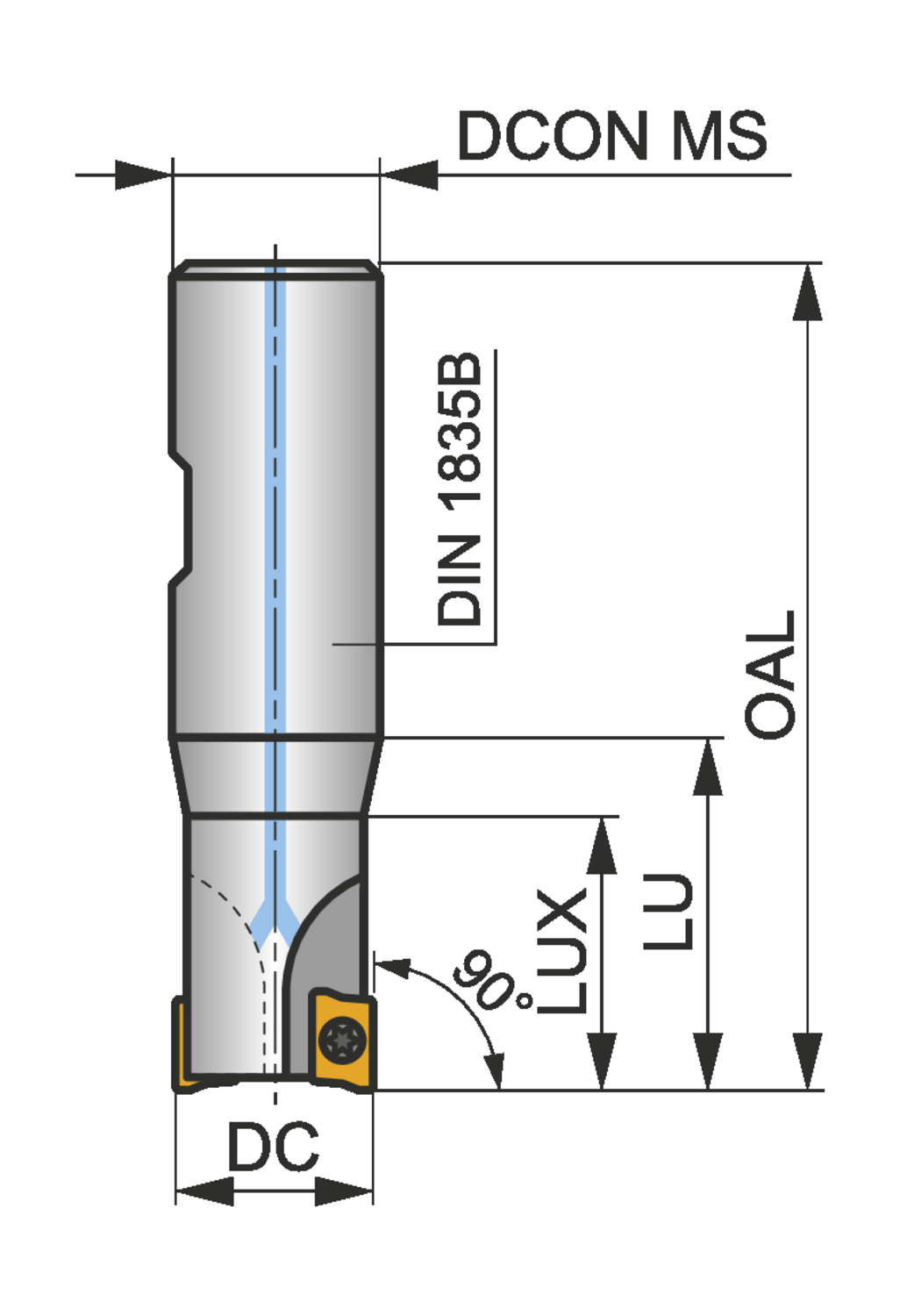

Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.984
Cutting diameter - millimeter (DC)
25
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
3.858
Overall length - millimeter (OAL)
98
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-13
Rotational speed maximum (RPMX)
18700
Shank
Weldon shank DIN 1835B
Usable Length maximum - millimeter (LUX)
42
Shoulder mill with positve/negative geometry which utilises 2 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 25mm with 90° approach angle and 25mm Weldon shank according to DIN 1835B, 42mm functional and 98mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm
