Pramet 25A2R080A25-SLN12-C 6760297 End Milling Cutter - Square Shoulder
MODEL 6760297
$311.55 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

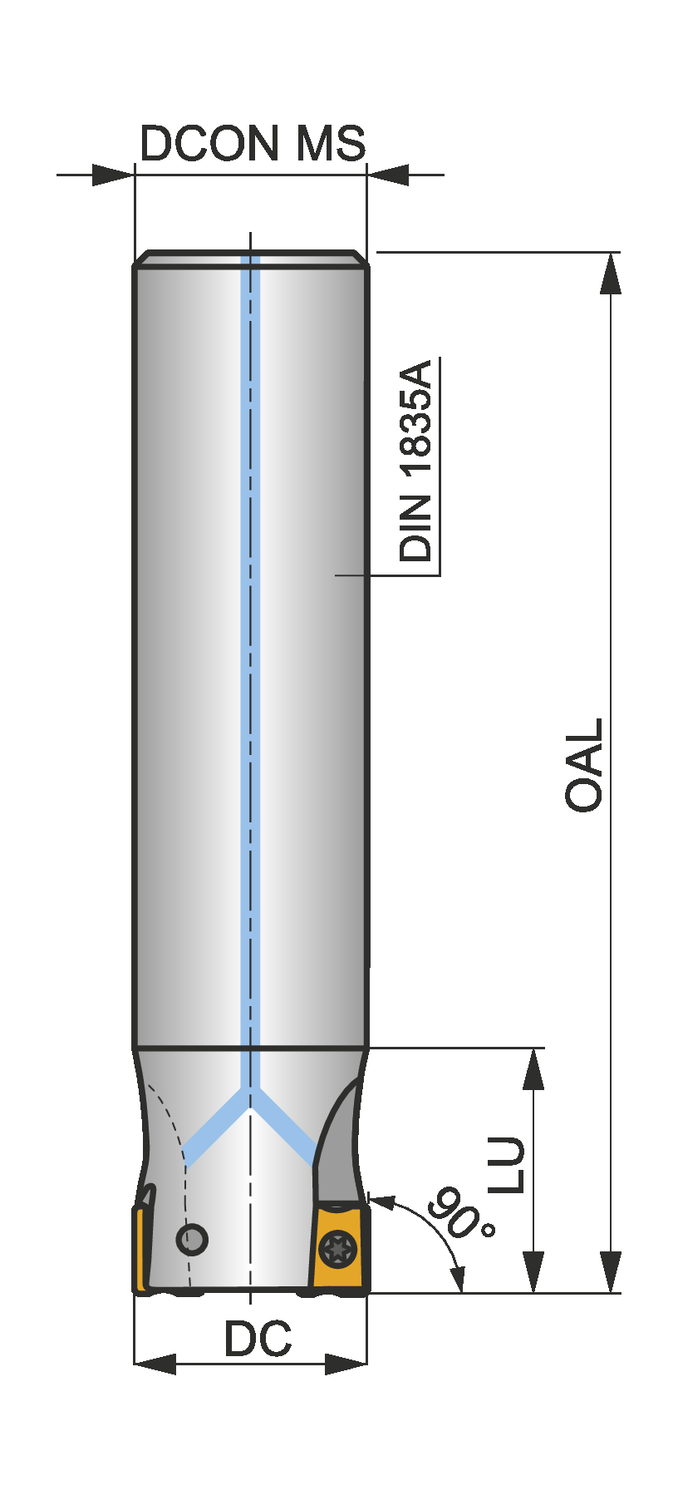

Axial rake angle (GAMP)
-8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.984
Cutting diameter - millimeter (DC)
25
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
6.693
Overall length - millimeter (OAL)
170
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-23
Rotational speed maximum (RPMX)
19500
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
80
Shoulder mill with double negative geometry which utilises 2 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 25mm with 90° approach angle and 25mm parallel shank according to DIN 1835A, 80mm functional and 170mm overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 9.0mm
