Pramet 25A5R024A25-SAD07D-C 6798635 End Milling Cutter - Square Shoulder
MODEL 6798635
$321.83 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.984
Cutting diameter - millimeter (DC)
25
Cutting pitch differential (CPDF)
1
Hand (Cutting direction)
Right
Insert index count (NOI)
5
Overall length - inch (OAL)
5.512
Overall length - millimeter (OAL)
140
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
-6.5
Rotational speed maximum (RPMX)
39000
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
24

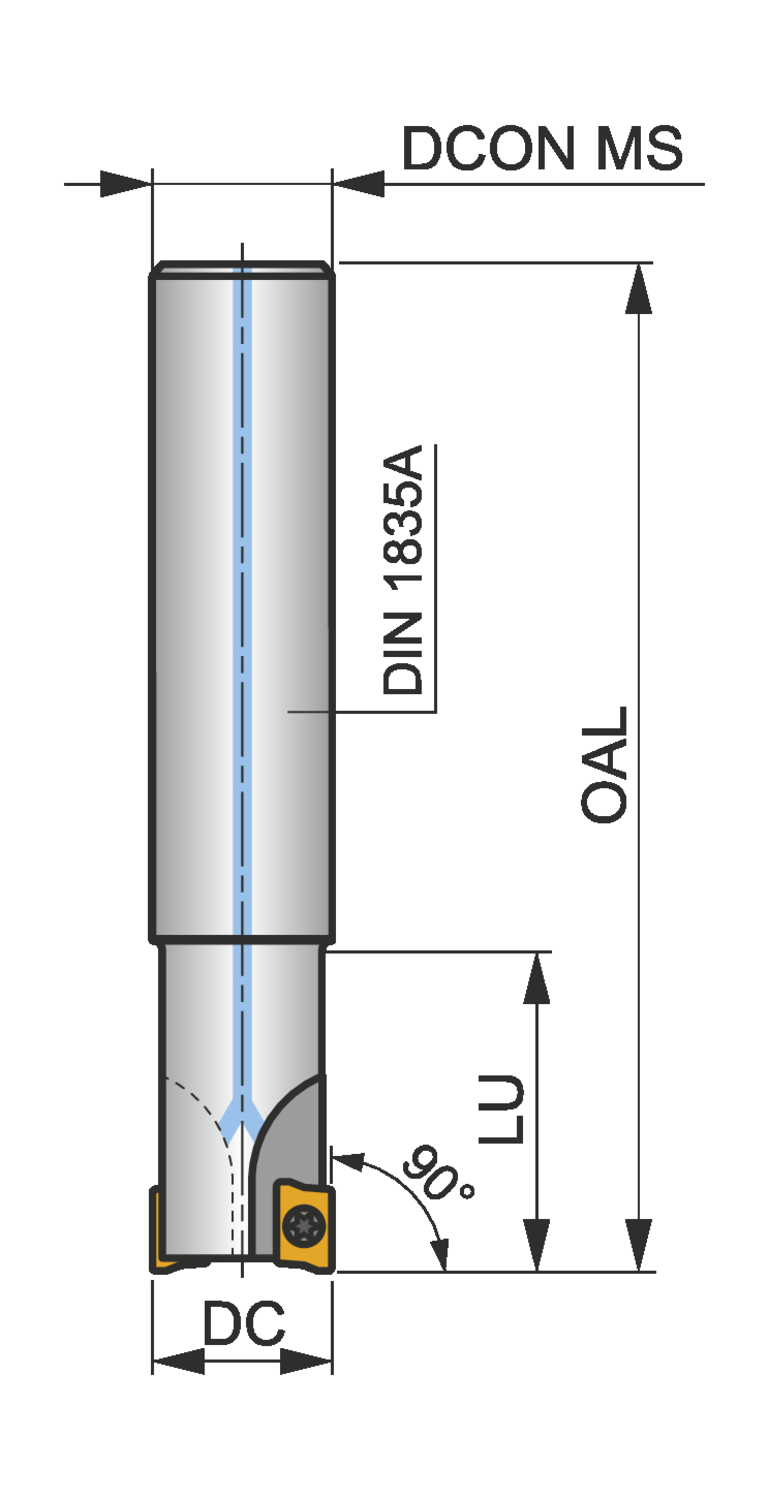

Shoulder mill with positve/negative geometry which utilises 5 off ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 25mm with 90° approach angle and 25mm parallel shank according to DIN 1835A, 24mm functional and 140mm overall length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 5.0mm
